Honda Shadow 750 1998–2003 Service & Repair Manual

Honda’s service manual covers the Shadow 750 / Shadow ACE applications listed for 1998–2003, with VT750C, VT750CD, VT750CD2, VT750C3, and VT750CD3 identified in the service text. Configuration notes distinguish earlier equipment from after-2000 applications.

Printable PDF, Chapter Bookmarks, and Wiring Detail

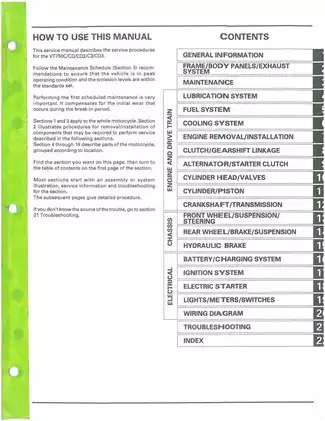

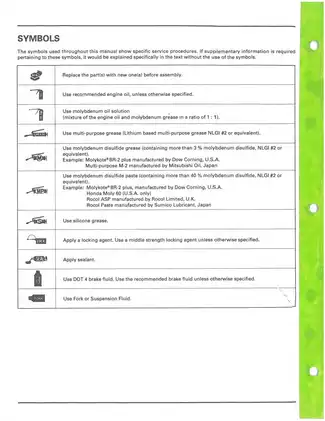

Search and diagram detail: Embedded bookmarks provide access to the chapters and index. Text search covers the added cover text, but not the service-page content. Small wire-color codes and connector labels in the overall wiring diagrams require zooming.

The maintenance chapter skips the printed pages listed for Wheels/Tires and Steering Head Bearings, numbered 3-28 and 3-29. Detailed wheel and steering service appears in the chassis chapters.

One printable English PDF contains 427 pages total, including 418 pages of manual content, eight memo pages, and one added cover page.

Engine, Carburetor, and Chassis Service

These selected coverage highlights outline the main workshop subjects rather than reproduce the full contents. Other topics include body-panel removal and exhaust-system service.

• Engine repair: Cylinder-head, valve, cylinder/piston, and crankshaft work, including camshaft timing, valve-guide replacement, valve-seat refacing, and internal inspection.

• Fuel system: Twin-carburetor removal, separation, cleaning, reassembly, synchronization, and pilot-screw adjustment, plus fuel-pump diagnosis, high-altitude settings, and California EVAP tests.

• Clutch and transmission: Clutch and gearshift-linkage repair, crankcase separation, transmission disassembly, bearing replacement, and alternator/starter-clutch service.

• Cooling system: Pressure testing, coolant replacement and air bleeding, thermostat inspection, radiator and fan service, and water-pump assembly replacement.

• Chassis and brakes: Front and rear wheel service, fork overhaul, steering-stem and swingarm work, rear drum-brake repair, and hydraulic front-brake service.

• Electrical diagnosis: Charging, ignition, starting, speed-sensor, meter, switch, and indicator troubleshooting, supported by diagnostic charts and connector checks.

The manual is suited to technicians and mechanically qualified owners with metric tools, the specified special tools, and test equipment; Honda recommends dealer-only service for designated safety-critical maintenance items.

Engine Access and Internal Repair

In-frame work: Camshafts, the front cylinder head, carburetors, clutch, alternator, and starter components can be serviced without removing the engine.

Engine-out work: Rear cylinder/head service, crankshaft work, oil-pump access, and transmission repair require engine removal. These distinctions help assess access and teardown requirements before starting a repair.

Internal-engine coverage includes compression testing, rocker-arm and camshaft inspection, color-coded connecting-rod bearing selection, and crankshaft/crankcase matching. Transmission instructions address gears, bushings, shift forks, the shift drum, and crankcase bearings through inspection and reassembly.

Camshaft installation distinguishes work on both cylinders from work on only one cylinder. The variant notes also identify different piston-ring specifications and crankcase-cover sealing arrangements.

Carburetor and Cooling-System Detail

Carburetor identification tables distinguish 49-state, California, and Canadian applications. Vacuum-piston diaphragms, float valves, jets, and air cut-off valves receive individual inspection instructions.

Step-by-step procedures cover carburetor rebuilding, synchronization, and the idle-drop pilot-screw adjustment. U.S. high-altitude adjustments and California EVAP purge-control and carburetor air-vent valve tests are treated separately.

Cooling diagnosis combines radiator-cap and system pressure tests with thermostat checks and radiator/fan service. Water-pump coverage is inspection and complete-assembly replacement; the pump is not to be internally disassembled.

Chassis Service and Electrical Fault Finding

Wheel procedures include bearing replacement, spoke and rim inspection, and balancing. Fork repair extends to seals and bushings; steering and swingarm sections cover bearing service and adjustment. Rear shock absorbers are inspected and replaced as assemblies.

Brake coverage distinguishes rear shoes, cam, and linkage from front master-cylinder and caliper overhaul.

Electrical chapters provide undercharging and overcharging flowcharts, current-leakage tests, regulator/rectifier checks, ignition peak-voltage tests, and ignition-timing inspection. Starter-relay and clutch-diode checks accompany the starting diagnosis; later equipment receives speed-sensor and electronic-meter troubleshooting.

Illustrations include the cooling-system flow pattern, battery/charging diagram, ignition-system diagram, starter-interlock circuit, lights/meters/switches diagrams, and two configuration-specific overall wiring diagrams. Symptom charts address hard starting, power loss, poor running at low or high speed, overheating, clutch slip, and handling faults.

Service References, Tools, and Repair Cautions

Torque tables, lubrication points, fluid data, wear limits, clearances, and electrical test specifications accompany the procedures.

Honda’s tool reference identifies the clutch-center holder 07JMB-MN50301 and peak-voltage adapter 07HGJ-0020100. It also lists the drive-chain tool set 07HMH-MR10103 and swingarm-pivot locknut wrench 07GMA-KT70200, with U.S. alternatives where specified.

Supporting the engine by the oil filter can break the filter mount and require crankcase replacement. Carburetor cautions address pilot-screw seat damage, passage damage from wire cleaning, and diaphragm damage from compressed air.

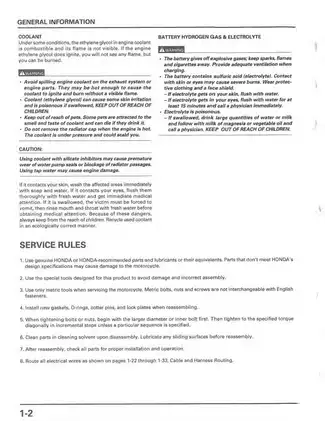

Follow Honda’s precautions for fuel, exhaust, pressurized coolant, brakes, battery electrolyte, and secure motorcycle support.

A Preview of Cold Valve-Clearance Data

For checks at compression TDC with the engine cold—below 35°C (95°F)—the valve-clearance section specifies intake clearance of 0.13–0.17 mm and exhaust clearance of 0.18–0.22 mm. Front and rear cylinders are addressed, with feeler-gauge checks and adjusting-screw service.
