1992–2001 Yamaha Jog CY50D Scooter Service Manual (P/N LIT-11616-08-16)

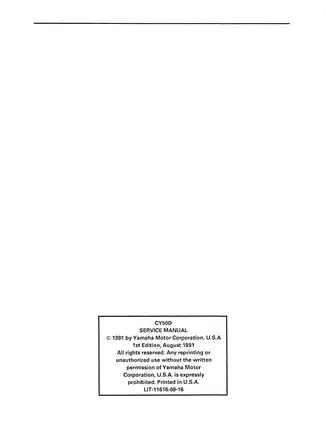

• Covers the 1992 Yamaha CY50D, model code 4FB1, beginning with *VIN JYA4FBA0NA000101 and engine serial 4FB-000101. This is a 213-page PDF of Yamaha Literature No. LIT-11616-08-16, 1st Edition, August 1991; the cover also carries code 4FB-28197-10**.
• Details engine removal and full internal repair, including the cylinder head and cylinder, piston and rings, crankcase and crankshaft, CDI magneto, Autolube pump, transmission, and final engine installation.
• Breaks down the automatic drive and starting assemblies with primary- and secondary-sheave service, centrifugal-clutch and V-belt inspection, kick-starter repair, starter clutch and gears, and starter-motor overhaul.
• Documents carburetor removal and teardown, float-level inspection, auto-choke testing, vacuum fuel-cock checks, and reed-valve removal, inspection, and installation.
• Includes front- and rear-wheel removal and bearing service, drum-brake shoe and cam work, steering-head and telescopic-fork disassembly, cable routing, and rear-shock removal and inspection.
• Provides the CY50D circuit diagram, component and connector-location views, plus ignition/starting, charging, lighting, signal, and auto-choke diagrams and troubleshooting charts. The separate CY50D wiring-diagram foldout listed at the end of the contents is not included in this PDF.
• Supplies scheduled-maintenance tables, component-specific torque data, lubrication points, fluid capacities, wear limits, clearances, adjustment data, and electrical test specifications, along with Yamaha special-tool numbers.

Model and System Identification

Check fitment by the CY50D/4FB1 model code and starting serials rather than by a broad 1992–2001 model-year range alone. The specification section identifies a 49 cc air-cooled two-stroke single with Yamaha Autolube, a Teikei Y14P carburetor, electric and kick starting, and a single-speed automatic V-belt transmission with a dry centrifugal clutch. The chassis sections match the steel-tube underbone frame, 10-inch panel wheels, mechanical front and rear drum brakes, telescopic front fork, and unit-swing rear suspension.

Maintenance, Engine, and Fuel-System Work

The periodic-service chapter covers body-panel access, idle and throttle-cable adjustment, Autolube pump air bleeding, spark-plug and oil checks, transmission-oil replacement, air-cleaner service, brake free play and shoe inspection, steering adjustment, wheel and suspension checks, sealed-battery inspection and charging, fuse testing, and headlight adjustment and bulb replacement.

Engine coverage moves from removal through complete disassembly, inspection, repair, reassembly, adjustment, and remounting. Exploded views precede the major teardown sections and identify assembly order, lubrication points, new-gasket or seal requirements, alignment marks, and tightening locations. Inspection material covers cylinder-head warpage, cylinder and piston wear, piston rings and pin, crankshaft condition and runout, transmission shafts and bearings, primary and secondary sheaves, clutch shoes and housing, V-belt, kick-start mechanism, and starter clutch and gears.

The carburetion chapter documents the Teikei carburetor from removal through assembly and installation, including jet and passage inspection, float-height verification, throttle-valve indexing, and auto-choke checking. Separate procedures cover the vacuum-operated fuel cock and reed-valve assembly.

Electrical Diagnosis and Troubleshooting

Electrical diagnosis begins with connector condition, switch-continuity tables, bulb checks, component locations, and connector views. It then covers the battery, starter motor and relay, brake switches, ignition coil, spark-plug cap, pickup and source coils, CDI unit, charging and lighting coils, rectifier/regulator, fuel sender and meter, oil-level circuit, horn, flasher system, and auto choke.

The troubleshooting chapter uses symptom-and-probable-cause charts for hard starting, poor idle, loss of medium- or high-speed performance, automatic V-belt drive faults, kick-start problems, weak braking, unstable handling, lighting and signal failures, and overheating.

Factory Tools and Repair Notes

Engine and drive work references the flywheel holding tool YU-01235, magneto puller YM-01189, crankcase separator YU-01135, crankshaft installer YU-90050 with adapter YM-90062, sheave holder YS-01880, and clutch spring holder YS-28891. Chassis and electrical procedures call for ring-nut wrench YU-33975, pocket tester YU-03112, and dynamic spark tester YM-34487; tune-up tools include tachometer YU-08036-A, compression gauge YU-33223, and fuel-level gauge YM-01312-A.

Yamaha specifically warns against striking crankcase gasket surfaces or forcing uneven case separation, which can damage the crankcase halves. Drum-brake repair also requires keeping grease off the shoes and removing excess lubricant from the brake cams; contamination can reduce braking effectiveness.

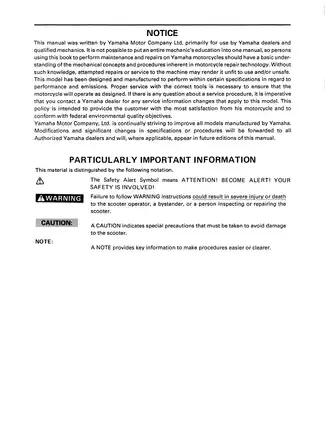

Reference only—Yamaha wrote this manual primarily for dealers and qualified mechanics. Have a qualified technician handle repairs beyond your training or equipment.
