2007 Piaggio MSS Fly 50 4T Scooter Workshop Manual (P/N 633212)

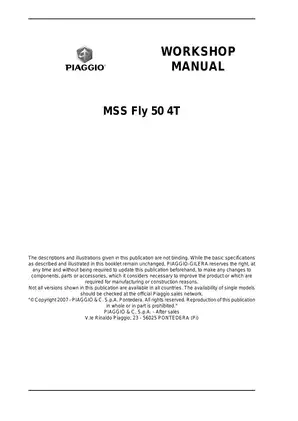

This Piaggio workshop manual, identified on the cover as 633212, covers the 2007 MSS Fly 50 4T scooter with the Hi-PER4 single-cylinder four-stroke engine. It documents maintenance, fault diagnosis, and mechanical repair across the engine, drivetrain, electrical system, brakes, and suspension.

• Engine repair: Engine removal, crankcase separation, crankshaft inspection, cylinder and piston measurement, cylinder-head service, and timing-system reassembly.

• CVT and final drive: Variator and clutch disassembly, pulley-bearing replacement, drive-belt inspection, kick-start service, and rear hub gear inspection.

• Fuel and secondary air: Keihin CVK 18 carburetor overhaul, automatic choke testing, vacuum fuel-tap checks, idle-mixture adjustment, and SAS filter service.

• Electrical diagnosis: Wiring diagrams, ignition and charging checks, voltage-regulator fault tracing, and lighting, turn-signal, and starter-circuit references.

• Brakes and suspension: Front caliper overhaul, hydraulic bleeding, rear brake-shoe replacement, front fork service, and wheel-bearing and steering checks.

• Maintenance references: Scheduled service tables, component-specific tightening torques, lubricant recommendations, dimensional drawings, and illustrated assembly references.

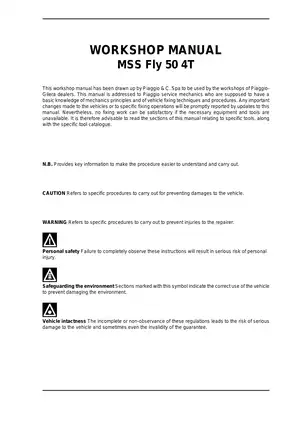

Written for Piaggio service mechanics, this manual assumes basic mechanical knowledge, familiarity with vehicle repair procedures, and access to the specified workshop equipment.

Engine Inspection and Reassembly

The engine section goes beyond removal and installation. It provides cylinder and piston inspection criteria, ring clearances and oversize dimensions, valve-guide measurements, camshaft checks, and crankshaft alignment checks. Cylinder-head tightening instructions distinguish reassembly from work involving replacement studs.

Gasket selection: Fiber and steel head-gasket arrangements are documented with different cylinder heights and base-gasket selection tables. These distinctions help identify the relevant top-end configuration before selecting replacement parts.

Oil-pump inspection covers rotor clearances and housing condition. The tooling references identify equipment such as camshaft tool 020450Y and flywheel extractor 020162Y alongside the relevant procedures.

CVT, Carburetor, and Running Problems

The transmission material covers the clutch drum, friction shoes, driven pulley seals and bearings, variator rollers, and final reduction gears. The driving-pulley reassembly caution explains how trapped belt tension can interfere with tightening and damage the crankshaft splines.

Carburetor instructions cover the vacuum diaphragm, accelerator pump, float level, jets, and automatic choke. Idle-mixture checks specify exhaust-gas analysis and temperature conditions, while the troubleshooting tables connect starting difficulties, stalling, poor performance, and high fuel consumption with possible causes.

The spark-plug section describes how excess silicone preservative can form deposits that promote pre-ignition and reduce performance. Spark-plug recommendations differ between the maintenance and engine-reassembly sections, so the NGK entries should not be treated as a single interchangeable specification.

Electrical Testing and Circuit References

The electrical section combines an overall wiring diagram with separate conceptual diagrams for ignition, headlights and the automatic starter, battery charging and starting, and turn indicators and the horn. Numbered component keys and wire-color abbreviations accompany the diagrams.

Voltage-regulator checks distinguish charging faults from lighting and turn-signal problems. Together with the pickup and stator tests, these references help narrow an electrical fault to its circuit and component rather than relying on symptoms alone. Spark-advance checks include timing-mark illustrations and RPM-limiter data.

Brake, Steering, and Chassis Service

Front brake coverage includes caliper disassembly, piston and seal inspection, disc checks, master-cylinder service, and bleeding with MityVac tool 020329Y. Suspension procedures address fork seals, front hub bearings, and rear shock replacement.

Steering coverage includes bearing-seat removal and ring-nut adjustment, but the steering-column refitting subsection is brief. The chassis section is marked as a work in progress. Lubricant references distinguish rear hub oil from the calcium-based grease specified for the steering bearings.

Proper maintenance requires strict adherence to factory tolerances. Always verify torque values and handle electrical components with caution to maintain vehicle integrity and prevent mechanical failure.

A Preview of Pickup and Stator Test Values

At ambient temperature, the pickup specification is approximately 170 Ω between the brown lead and ground. The stator winding specification is approximately 1 Ω between the black lead and ground. The electrical section notes that readings increase when the stator is hot, making temperature relevant when interpreting these checks.

Searchable PDF and Diagram Detail

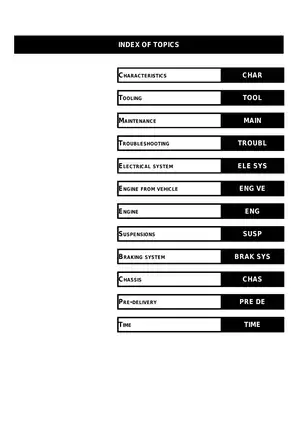

Text search, bookmarks, and diagrams: The manual text is searchable; labels embedded in diagram images are not searchable as text. Embedded bookmarks cover many sections, but some chapter entries lack working destinations and some subsection links land early. Small wiring labels require zooming, and some remain difficult to distinguish in the overall diagram.

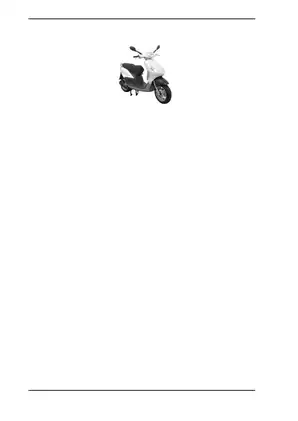

Supplied as one printable, 189-page PDF, primarily in English with some untranslated Italian passages. The total includes the cover, publication and introductory pages, the vehicle illustration page, and one page containing only the running header and footer.
