Yamaha Zuma 50 YW50AP 2002 Service Manual (P/N LIT-11616-15-39)
214 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: YW50AP (5PJ1), Zuma 50
Engine Type: 2-stroke gasoline torque induction
Model Year: 2002
-
Engine displacement: 49 cm³
-
Engine configuration: Forward-inclined single cylinder, 2-stroke
-
Bore x Stroke: 40.0 x 39.2 mm
-
Compression ratio: 7.2:1
-
Transmission type: Automatic V-belt
-
Fuel type: Regular unleaded gasoline
-
Ignition system: C.D.I.
-
Front brake: Single disc
-
Rear brake: Drum brake
Yamaha Manual Features & Selected Content Preview
This first-edition Yamaha service manual covers the 2002 YW50AP Zuma 50, model code 5PJ1. It was published in November 2001 under P/N LIT-11616-15-39, with 5PJ-F8197-10 also printed on the cover.
PDF Search, Bookmarks, and Page Breakdown

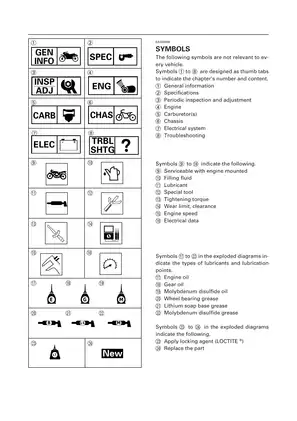

Search and diagram detail: The PDF has searchable text and bookmarks for chapters, major sections, and the full wiring diagram. Small connector labels and wire codes are readable when zoomed in. The main-index bookmark points to a separate file outside the download.
The download is one printable English PDF with 214 pages total, including 14 pages of front matter, 198 numbered chapter pages, one unnumbered wiring-diagram page, and the back cover.
Engine, Chassis, and Electrical Service
These selected service topics show the range of the manual. Other procedures include kick-starter inspection and headlight beam adjustment.
- Engine repair: Engine removal and installation, cylinder-head inspection, piston and ring checks, crankcase separation, crankshaft installation, and reed-valve inspection.
- Drive components: V-belt replacement, centrifugal-clutch service, primary and secondary sheave disassembly and inspection, and final-transmission removal and installation.
- Fuel and lubrication: Carburetor disassembly, fuel-level checks, auto-choke and vacuum fuel-cock testing, plus Autolube pump removal, installation, and bleeding.
- Brakes and wheels: Front master-cylinder and caliper overhaul, hydraulic brake bleeding, rear drum-brake inspection, wheel-bearing service, and wheel static balancing.
- Steering and suspension: Steering-bearing adjustment and replacement, front-fork disassembly and seal replacement, and rear-shock inspection.
- Electrical diagnosis: Ignition, charging, starting, lighting, and signal-system troubleshooting, with circuit diagrams, switch-continuity charts, and starter-motor inspection and repair.
Yamaha wrote this manual primarily for dealers and qualified mechanics. It assumes basic mechanical knowledge and familiarity with scooter repair.
Engine Overhaul and Drive Components

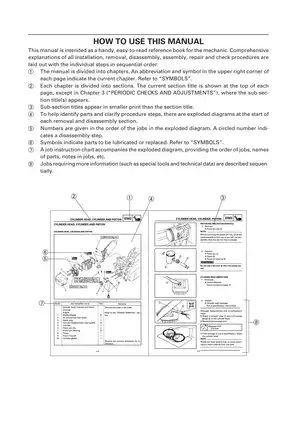

The overhaul section covers cylinder-head warpage, piston-ring inspection, crankshaft bearings, and oil seals. Piston-ring sketches, exploded views, and job charts show how parts fit together, where lubrication is required, and which parts are due for replacement during assembly.
The crankshaft installation notes explain how inadequate lubrication at the oil-seal lips and bearings can scratch the shaft. Tool references include crankcase separator YU-01135-A and crankshaft installation set YU-90050 with adapter YU-90062. The engine chapter also covers C.D.I. magneto removal and installation.
Clutch inspection covers shoe wear, housing diameter, spring condition, torque-cam grooves, guide pins, and primary-sheave weights. The troubleshooting chapter lists possible causes for poor takeoff, weak acceleration, and a running engine that fails to drive the scooter.
Carburetor and Autolube Service
Float-height illustrations accompany checks of the needle valve, jets, and fuel passages. The float height is factory-set. The separate fuel-level procedure covers measurement and replacement of a worn needle valve.
Autolube coverage includes the pump drive, oil-delivery hoses, and bleeding after pump installation. The maintenance schedule also covers throttle-cable adjustment, air-filter cleaning, and transmission-oil changes.
Brakes, Steering, and Front Fork
Master-cylinder and caliper exploded views accompany piston and seal inspections. The brake-fluid notes explain how unsuitable fluid can damage rubber seals and cause leaks.
The front-fork procedures cover damper-rod removal, oil-seal installation, spring orientation, and reassembly checks. The steering section covers bearing races and ring nuts, with separate routing drawings for hoses and wiring around the steering assembly.
Electrical Fault Isolation
Circuit diagrams, diagnostic flowcharts, and connector views support ignition, charging, and electric-starting tests. For a no-spark complaint, the ignition charts help trace the fault through the spark plug, coil, switches, and wiring before the C.D.I. unit is considered.
Starter-motor checks cover the armature, commutator, brushes, and brush springs. Signal-system tests include the horn, brake switches, flasher relay, fuel sender, and oil-level warning circuit. Some component numbers on the full wiring diagram differ from its adjacent legend. Chapter 7 supplies a separate component key alongside the circuit diagrams.
Follow the manual's precautions for electrical testing, fuel handling, brake service, and spring-loaded assemblies.
Oil, Fastener, and Ignition Specification Preview
The oil specifications list a 1.4 L engine-oil tank and distinguish a 0.11 L periodic transmission-oil change from the transmission's 0.13 L total capacity.
The cylinder-head and cylinder retaining nuts have a final torque of 14 Nm (10 ft-lb), with staged tightening specified in the assembly section. The clutch-housing nut is listed at 40 Nm (29 ft-lb).
The electrical tables list ignition timing at 14° BTDC at 5,000 r/min and specify a YTX5L-BS battery rated at 12 V, 4 Ah.
