Yamaha V-Star 950 / XVS950 Service Manual, 2009–2012 (P/N LIT-11616-22-60)

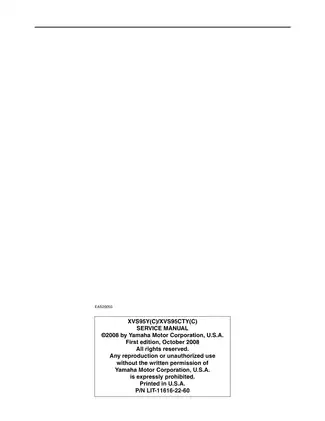

Yamaha V-Star 950 service manual for 2009–2012, covering XVS95Y(C) and XVS95CTY(C), including U49 and California variants. P/N LIT-11616-22-60 identifies the first edition, October 2008.

Text Search, Bookmarks and Wiring Detail

Search and diagram detail: Service text is searchable, with embedded bookmarks for chapters and major assemblies. Labels within many diagrams are not searchable. Small wire-color codes and connector markings require zooming; the system circuit diagrams may also need rotation.

ZIP download containing one 392-page printable PDF, including eight preliminary pages, ten further blank or header-only pages, the back cover, and two full wiring-diagram pages.

Engine, Chassis and Fuel-Injection Service

These selected service topics outline the contents rather than reproduce the full table of contents. Other examples include instrument functions and cable-lubrication procedures.

• Engine repair: Step-by-step engine removal and installation, cylinder-head service, piston inspection, crankcase separation, oil-pump checks, and crankshaft inspection.

• Valve train: Camshaft and rocker-arm service, timing-chain installation, valve-guide and valve-seat inspection, valve-clearance adjustment, and compression testing.

• Clutch and transmission: Wet-clutch inspection, primary-drive gear service, shift-shaft checks, and internal gearbox disassembly, inspection, and assembly.

• Chassis and belt drive: Wheel-bearing replacement, front-fork overhaul, steering-head service, swingarm inspection, rear-shock replacement, and drive-belt removal and installation.

• Brakes: Front and rear caliper and master-cylinder disassembly, seal inspection, brake-disc measurements, pad replacement, and hydraulic bleeding.

• Fuel system: Throttle-body synchronization and cleaning, injector installation and pressure testing, fuel-pressure checks, and throttle-position sensor adjustment.

• Electrical diagnosis: FI fault-code checks, ignition and starter-circuit troubleshooting, charging tests, and lighting, signaling, and fuel-pump circuit diagnosis.

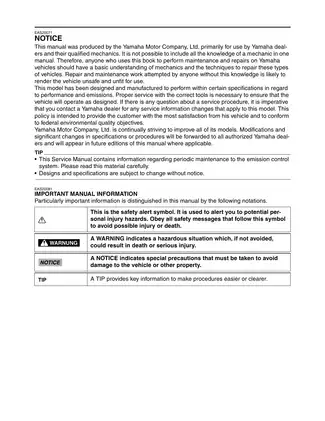

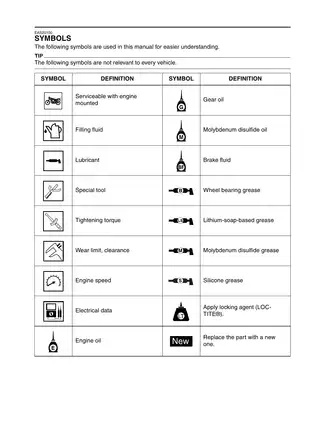

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes a basic understanding of mechanics and vehicle repair techniques.

Engine Measurements and Assembly Detail

Exploded views and job charts accompany the removal and disassembly sections. Component-specific torque sequences, lubrication instructions, tolerances, and wear limits support internal engine assessment and reassembly.

Camshaft identification: The front-cylinder camshaft has a punch mark; the rear-cylinder camshaft is unmarked. The installation procedures distinguish the timing-mark alignment and chain-tension requirements for each cylinder.

Bottom-end inspection: Connecting-rod markings guide replacement big-end bearing selection, supported by Plastigauge clearance checks. Interchanging bearings or connecting rods can alter oil clearance and cause engine damage.

Throttle-Body Service and Fuel Testing

Service limits: Throttle-body removal, cleaning, and adjustment are covered, but Yamaha specifies that the throttle body should not be disassembled. California-specific canister, rollover-valve, and purge-hose information accompanies the fuel-system procedures.

Fuel-pressure testing calls for pressure gauge YU-03153 and adapter YM-03176. A separate injector pressure test checks sealing after installation, distinguishing that task from checking the pump and pressure regulator.

Residual fuel pressure and electrical sparks are identified hazards; injector checks call for a well-ventilated work area and electrical isolation.

Belt Handling and Variant-Specific Chassis Work

XVS95CTY/XVS95CTYC procedures include windshield, sidebag, and backrest removal. Rear-shock coverage addresses removal, inspection, and replacement; Yamaha warns against opening the nitrogen-charged shock absorber.

The belt-drive section identifies handling restrictions because tight bending or turning a removed belt inside out can damage it. Belt-slack adjustment also addresses rear-wheel alignment.

Fault Isolation and Circuit Documentation

Fault-code tables connect symptoms to probable causes, wiring checks, fail-safe behavior, and reinstatement checks. Diagnostic mode provides sensor readings and actuator tests, helping distinguish wiring and component faults before an ECU replacement is considered.

Reference illustrations include the engine-oil lubrication chart, cable-routing views, and circuit diagrams for ignition, electric starting, charging, and fuel injection. Full-vehicle wiring diagrams are supplied in black-and-white and color versions, with connector layouts and a wire-color legend.

A Preview of Valve and Charging Specifications

For a cold engine, the valve-clearance specifications are 0.08–0.12 mm on the intake side and 0.22–0.26 mm on the exhaust side, alongside the adjustment procedures.

The charging-system reference specifies 14 V at 5000 r/min. The electrical sections pair reference values with test connections and troubleshooting charts.
