2000 Mercedes-Benz S-Class Operator's Manual (P/N A0005843550)

• Official OEM publication (Part No. 220 584 81 83 / A0005843550) published by DaimlerChrysler AG

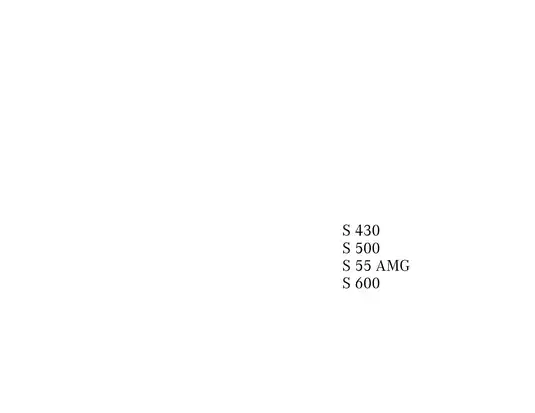

• Covers the 2000 Mercedes-Benz S-Class W220 chassis, including S430, S500, S55 AMG, and S600 models

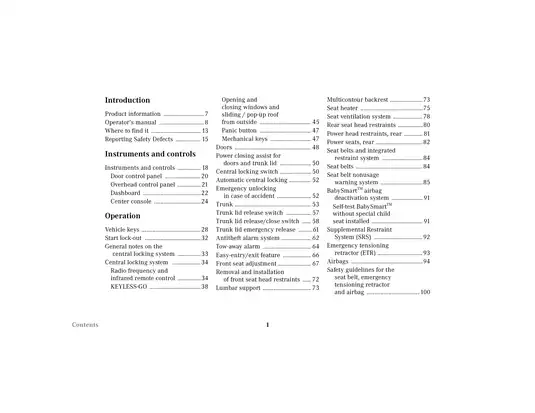

• Contains 421 pages of detailed operational data with over 15 factory diagrams for instrument controls and locking systems
• Definitive reference guide for baseline equipment configurations and optional factory features
• Details advanced systems including Active Body Control (ABC), Airmatic, Adaptive Damping System (ADS), Electronic Stability Program (ESP), and Brake Assist System (BAS)
• Explores the COMAND interface, Tele Aid, Parktronic, KEYLESS-GO, Distronic (DTR), and Flexible Service System (FSS)

Operational Systems Walkthrough

Getting a W220 into the bay often means dealing with complex electronic configurations before you even touch a wrench. This original PDF operator's manual breaks down the factory equipment to help you understand baseline functions. By providing the exact factory operating sequences, it prevents misdiagnosing a user-error as a hardware failure, speeding up the initial evaluation before a diagnostic scanner is even connected. You get straight-to-the-point instrument cluster display charts, dashboard interface drawings, and center console views. It maps out the exact operation of the central locking system. This includes detailed sections on electronic keys, KEYLESS-GO cards, and emergency trunk release procedures. Need to verify seat functionality after a module swap? The guide completely documents memory functions, lumbar support, multicontour backrest settings, and the seat ventilation system. It also provides comprehensive breakdowns for operating and resetting the automatic climate control.

Workshop Procedures and Repair Pitfalls

Working on the W220 chassis presents unique repair pitfalls, particularly concerning voltage drops. A discharged battery frequently causes module amnesia, requiring meticulous resynchronization of the power windows, sliding roof, and the steering angle sensor to clear the ESP warning. Furthermore, ignoring the 'Car Too Low' warning for the Airmatic or Active Body Control (ABC) systems and turning the steering wheel can severely crush the front fenders, making factory suspension height procedures highly critical before moving the shop vehicle. Improper jump-starting sequences on this complex 12V system also frequently damage the sensitive front Signal Acquisition Modules (SAMs).

To avoid an expensive trip to the dealership and execute a rapid fix, technicians and DIYers can utilize the step-by-step instructions included here. It details exactly how to manually reset the Flexible Service System (FSS), synchronize replacement remote controls, perform an emergency engine shut-down via fuse extraction, and execute manual overrides for a stuck sliding roof or fuel filler flap. This ensures a smooth troubleshooting workflow for everyday tasks.

Specification and Safety Information

Beyond interior controls, the manual provides technical specifications crucial for routine maintenance and diagnostics. You will find exact fluid capacities, engine oil requirements, refrigerant specs, and fuel system parameters. Electrical system identification is straightforward thanks to factory fuse location diagrams, fuse charts, and 12V system overviews, while mechanical routing is clarified by the exact poly-V-belt drive schematic. The document covers occupant safety systems extensively. This includes the Supplemental Restraint System (SRS), side-impact airbags, and the BabySmart child seat deactivation protocols. Always review these factory safety guidelines prior to servicing restraint systems to prevent accidental deployment or component damage. Proper seat belt usage and electronic key initialization procedures are heavily documented throughout the chapters to ensure accurate system setups.
