1999 Sea-Doo PWC Shop Manual - SPX, GS, GTS, GTI, GSX RFI, GTX RFI, GSX Limited, GTX Limited & XP Limited (P/N 219 100 094)

This 1999 Sea-Doo Shop Manual, Volume 1, covers the SPX, GS, GTS, GTI, GSX RFI, GTX RFI, GSX Limited, GTX Limited, and XP Limited personal watercraft, including the international versions listed in the introduction. It is Bombardier publication P/N 219 100 094.

The download contains one English-language PDF with 495 pages in total.

• Engine repair: Removal and installation, leakage diagnosis, magneto repair, top-end and bottom-end inspection, rotary valve service, and Rotax Adjustable Variable Exhaust (RAVE) operation.

• Fuel systems: Mikuni carburetor overhaul, twin-carburetor synchronization, throttle linkage adjustment, and Rotax Fuel Injection (RFI) pressure tests, sensor checks, and ECU fault diagnosis.

• Cooling and lubrication: Cooling circuit inspection, flushing, Variable Rate Oil Injection (VROI) pump adjustment, oil injection bleeding, and pump output testing.

• Propulsion: Jet pump disassembly and overhaul, impeller and wear-ring inspection, engine-to-pump alignment, drive shaft service, reverse mechanisms, and Variable Trim System (VTS) adjustment.

• Electrical diagnosis: Multi-Purpose Electronic Module (MPEM), Digitally Encoded Security System (DESS), ignition timing, charging and starting systems, gauges, and model-specific wiring diagrams.

• Steering and suspension: Steering cable replacement and alignment, adjustable steering service, and XP Limited direct action suspension inspection, shock removal, and spring replacement.

• Hull repair: Seat and body fitting service, pump support repairs, fiberglass reinforcement for structural damage, and gelcoat restoration procedures.

Bombardier wrote this manual primarily for manufacturer-trained watercraft technicians already familiar with Sea-Doo service and maintenance, using the appropriate hand tools and special equipment.

Rotax Engine Repair and Specifications

Engine procedures distinguish the 717 and 787 rotary valve layouts from the 947 reed-valve layout. RAVE coverage separates the pressure-operated 787 system from the electronically controlled 787 RFI and 947 versions.

Engine leakage diagnostic flow charts support fault isolation before disassembly. RAVE operation charts, exploded-view assemblies, combustion chamber volume tables, and piston inspection data accompany the repair procedures.

Counterbalance shaft timing receives specific attention: incorrect indexing can cause vibration and premature wear. Crankshaft inspection is included, but repair of a defective crankshaft is directed to a specialist shop or replacement assembly.

The technical data section supplies model-specific specifications, including RAVE guillotine clearances, engine leak-test pressures, counterbalance oil quantities, engine-mount torque values, and electrical test data. Specifications describe factory configurations; later dealer modifications are outside the manual's scope.

Carburetor, RFI, and Electrical Diagnosis

Carburetor coverage includes diaphragm inspection, needle-valve leakage tests, accelerator pump service, and synchronization. RFI coverage addresses the Bosch ECU, fuel delivery, throttle-position sensor adjustment, and RAVE solenoid tests.

The ECU fault code tables explain that an absent crankshaft-position signal with the engine stopped can be normal. That distinction helps a technician interpret a stored indication before treating the sensor as defective.

RFI diagnostics require the appropriate MPEM programmer and software. Detailed programmer operation and DESS key programming refer to the separate MPEM Programmer Guide; that guide is not included in this PDF.

Ignition timing correction charts and fuel level resistance charts support electrical checks. The wiring section also identifies wire colors and covers Deutsch, Packard, and AMP connector service.

Maintenance and Cooling Systems

Periodic inspection charts accompany cooling system care, seasonal storage, and water-flooded engine revival procedures. Cooling layouts distinguish engine variants, including the crankcase and magneto heat exchangers used with the 787 RFI.

Jet Pump, Steering, and Hull Service

The propulsion chapters separate pump designs and model-specific drive shaft arrangements. XP Limited coverage includes its split drive shaft and intermediate bearing alignment; folded seal lips can lead to bearing failure.

Hull repair distinguishes minor gelcoat defects from damage requiring fiberglass reinforcement. Coverage also includes through-hull inserts, ride plates, intake grates, and body fittings.

This page summarizes the publication's contents; it does not provide repair instructions. Fuel systems and high-voltage electrical components require appropriate precautions. Consult a qualified marine technician before undertaking service.

File Format and Readability

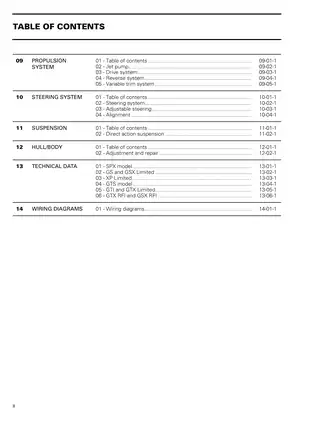

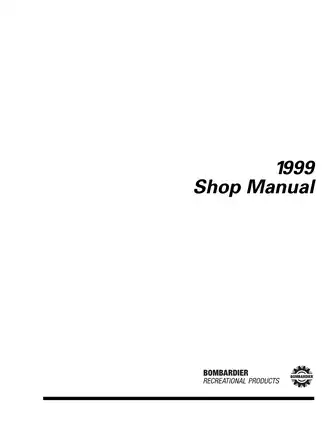

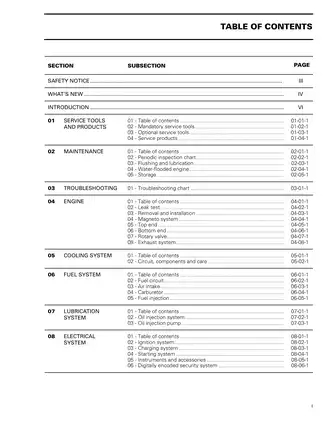

The total includes two cover pages, one title page, twelve pages of front matter, and nine model divider pages. The model wiring diagrams occupy eighteen pages.

Embedded bookmarks provide navigation to the main sections. Most procedural text is searchable; the model wiring diagrams do not support text search. Small wire labels and connector pin numbers require zooming.
