Ford, Mercury & Lincoln 1977–1979 Shop Manual Set (P/N 365-126-77A–E)
2,236 Pages • ZIP Download: 5 Printable PDFs • 255.11 MB
Ford Models Covered & Key Technical Specifications
Models: Thunderbird, Pinto, Bobcat, Mustang II, Maverick, Comet, Granada, Monarch, LTD II, Lincoln Mark V, Mercury Marquis
Models & Model Codes: Vehicle Certification Label BODY codes.
Thunderbird — Ford: Base 2-Dr. Pillar Hardtop (60H).
Pinto — Ford: Base 2-Dr. Sedan (62B), 3-Dr. Sedan (64B), Wagon (73B).
Bobcat — Mercury: U.S.A. and Canada 3-Dr. Sedan (64H), Wagon (73H); Canada-only 2-Dr. Sedan (62B), 3-Dr. Sedan (64B), Wagon (73B).
Mustang II — Ford: Base 2-Dr. Notchback (60F), Base 3-Dr. Hatchback (69F), Ghia 2-Dr. Notchback (60H), Mach 1 3-Dr. Hatchback (69R).
Maverick — Ford: Base 2-Dr. Sedan (62A), Base 4-Dr. Sedan (54A).
Comet — Mercury: Base 2-Dr. Sedan (62B), Base 4-Dr. Sedan (54B).
Granada — Ford: Base 4-Dr. Sedan (54H), Base 2-Dr. Sedan (66H), Ghia 4-Dr. Sedan (54K), Ghia 2-Dr. Sedan (66K).
Monarch — Mercury: Base 4-Dr. Sedan (54H), Base 2-Dr. Sedan (66H), Ghia 4-Dr. Sedan (54K), Ghia 2-Dr. Sedan (66K).
LTD II — Ford: S 2-Dr. Hardtop (65B), S 4-Dr. Pillar Hardtop (53B), 2-Dr. Hardtop (65D), 4-Dr. Pillar Hardtop (53D), Brougham 2-Dr. Hardtop (65K), Brougham 4-Dr. Pillar Hardtop (53K), S Wagon (71B), Wagon (71D), Squire Wagon (71K).
Lincoln Mark V — Lincoln: Base 2-Dr. Hardtop (65D).
Mercury Marquis — Mercury: 4-Dr. Pillar Hardtop (53H), 2-Dr. Hardtop (65H), Brougham 4-Dr. Pillar Hardtop (53K), Brougham 2-Dr. Hardtop (65K), Grand Marquis 4-Dr. Pillar Hardtop (53L), Grand Marquis 2-Dr. Hardtop (65L), Wagon with Colony Park or Decor options (71K).
Sub-models / Variants: 2-Dr. Notchback, 2-Dr. Pillar Hardtop, 2-Dr. Hardtop, 4-Dr. Sedan, 4-Dr. Pillar Hardtop, Wagon, 3-Dr. Hatchback, Ranchero (500: 97D; GT: 97R; Squire: 97K), Custom 500 (2-Dr. Pillar Hardtop: 60D; 4-Dr. Pillar Hardtop: 53D), Custom 500 Ranch (71D), LTD (2-Dr. Pillar Hardtop: 60H; 4-Dr. Pillar Hardtop: 53H; Wagon: 71H), LTD Landau (2-Dr. Pillar Hardtop: 60L; 4-Dr. Pillar Hardtop: 53L), Brougham, Squire, Ghia, Mach 1, Base
Trade Names: Thunderbird, Pinto, Bobcat, Mustang, Maverick, Comet, Granada, Monarch, LTD II, Lincoln, Mark V, Marquis, Cougar
Model Years: 1977–1979 (1977, 1978, 1979)
-
Engine configurations: 2300cc I4, 200 CID I6, 250 CID I6, 2800cc V6, 302 CID V8, 351W CID V8, 351M CID V8, 400 CID V8, 460 CID V8, including the 460 Police Interceptor.
-
Engine identification — VIN character 5: Y — 2.3L 2-V; Z — 2.8L 2-V; T — 200-1V; L — 250-1V; F — 302-2V; H — 351-2V; S — 400-2V; A — 460-4V; C — 460-4V Police.
-
Valve stem to guide clearance: 0.0010–0.0027 inches — 2300cc engine, intake valves.
-
Three-speed manual transmission: RAN-DM — Maverick/Comet and Granada/Monarch with 200-1V or 250-1V engines.
-
Mustang II four-speed manual transmissions: RAD-K — 302-2V; RAD-L and RAD-B5 — the 2.3L/2.8L applications listed in the transmission specifications.
-
Pinto/Bobcat four-speed manual transmissions: 77ET-7003-AA — 2.3L sedan with 2.73 axle; 77ET-7003-CA — 2.3L station wagon or 2.3L sedan with 3.18 axle.
-
Four-speed overdrive transmission: RUG-BP — Granada/Monarch with 200-1V, 250-1V or 302-2V engines.
-
Automatic transmissions: C3 — Mustang II, Pinto and Bobcat with 2300cc or 2800cc engines; C4 — applicable Maverick/Comet, Granada/Monarch, Pinto/Bobcat, Mustang II, LTD II, Cougar and Thunderbird configurations; C6 — applicable Ford/Mercury full-size, LTD II, Thunderbird, Cougar, Lincoln Continental and Continental Mark V configurations; FMX — Ford/Mercury full-size, LTD II, Thunderbird and Cougar.
Ford Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 1977 Car Shop Manual, Volume 1 — Chassis (P/N 365-126-77A). Ford and Mercury full-size cars, LTD II, Ranchero, Thunderbird, Mustang II, Granada, Monarch, Maverick, Comet, Pinto, Bobcat, Cougar, Lincoln Continental and Continental Mark V; U.S. and Canadian production. | 557 |
| 1977 Car Shop Manual, Volume 2 — Engine (P/N 365-126-77B), for the covered Ford, Mercury and Lincoln passenger-car lines. | 480 |
| 1977 Car Shop Manual, Volume 3 — Electrical (P/N 365-126-77C), for the covered Ford, Mercury and Lincoln passenger-car lines. | 619 |
| 1977 Car Shop Manual, Volume 4 — Body (P/N 365-126-77D), for the covered Ford, Mercury and Lincoln passenger-car lines. | 450 |
| 1977 Car Shop Manual, Volume 5 — Pre-Delivery, Maintenance and Lubrication (P/N 365-126-77E), for the covered Ford, Mercury and Lincoln passenger-car lines. | 130 |

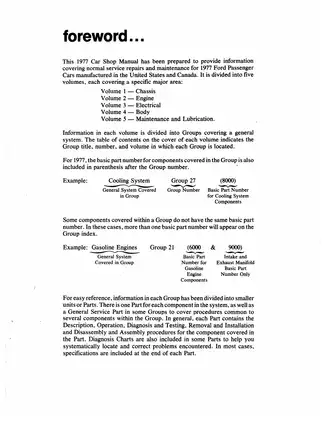

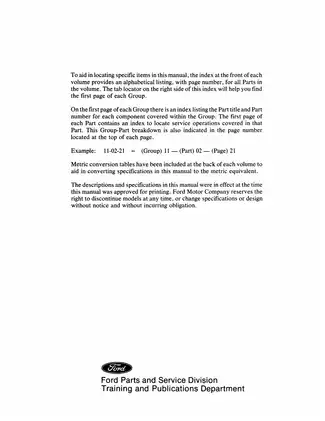

Prepared by Ford’s Parts and Service Division, Training and Publications Department, the volumes divide repair procedures by assembly and place routine service schedules and lubrication information in Volume 5. Their group and part references connect related work across the volumes.
Coverage is for 1977 only, not 1978–1979. The separate full-vehicle Wiring and Vacuum Diagrams Manual is not included; Ford refers readers to Form 7795P-77 for complete schematics and harness locations.
PDF Search, Indexes and Diagram Detail

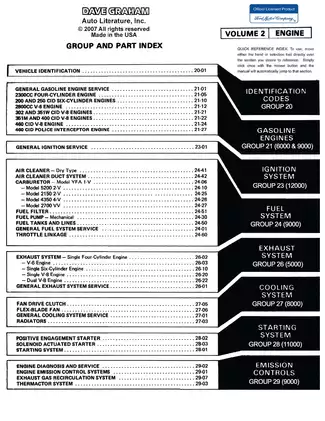

Text search and small labels: None of the five PDFs has searchable text, embedded bookmarks or active index links. Navigation uses the printed group/part indexes and page numbers. Small circuit numbers, connector labels and wire-color tables in the engine, electrical and body volumes require magnification.
The ZIP contains five printable PDFs totaling 2,236 pages, including 20 cover, index and introductory pages, 10 conversion-table pages and nine feedback/mailing pages. Reproduction markings in Volumes 2–5 identify the 2007 Dave Graham Auto Literature licensed edition.
Powertrain, Chassis and Body Service
The following selected coverage highlights show the main repair areas rather than reproduce the full contents. Additional topics include noise, vibration and harshness diagnosis and road-test checks.
-
Engine repair: Step-by-step engine removal, cylinder-head service, internal inspection, timing-belt or timing-chain work, reassembly and final adjustment procedures.
-
Brakes and steering: Sliding-caliper disc and drum brake service, Hydro-Boost and vacuum boosters, rack-and-pinion and recirculating-ball steering, plus Ford-Thompson and Saginaw pump repair.
-
Suspension and axles: Suspension inspection, driveshaft service, Traction-Lok differential repair and axle setup, supported by preload, backlash and wear specifications.
-
Transmission service: Ford three-speed, four-speed overdrive, RAD and 77ET manuals; C3, C4, C6 and FMX automatics, with internal service, clutch checks, adjustments and operational tests.
-
Electrical and climate control: Charging and lighting diagnosis, instruments, harnesses, fuse panels, heater/A/C systems, automatic temperature control, speed control and Sure-Track testing.
-
Body repair: Power seats, door and window mechanisms, locks, tailgates, stationary glass, roof systems, trim, body-shell alignment and car-line frame and underbody dimensions.
-
Maintenance and lubrication: Pre-delivery inspections, service schedules, lubrication charts, lubricant specifications, and hoisting, jacking and towing information.
Internal engine, axle and automatic-transmission work makes this set suited to technicians and experienced owners who have specialty pullers, measuring equipment and appropriate shop facilities.
Identification and Procedure Selection

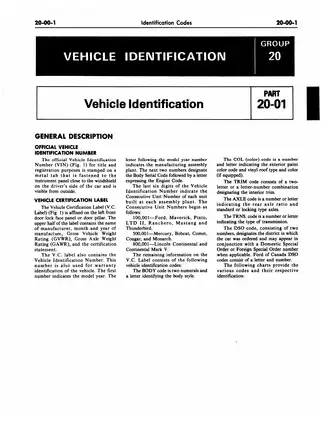

VIN and Vehicle Certification Label charts distinguish body, engine, transmission, axle, paint, trim and DSO codes. These references help match a procedure to the installed assembly before similar-looking Ford, Mercury or Lincoln components are serviced.
Group basic part numbers and service-tool identifiers accompany the procedures. Parts selection still calls for the Ford master parts catalogs where the manual directs the reader to them.
Engine, Fuel and Emission Systems
The engine chapters extend into camshaft and crankshaft measurements, valve-train inspection, pistons, connecting rods and oil pumps. Separate sections distinguish the 302/351W and 351M/400 V8 families; the 460 Police Interceptor section addresses its crankcase oil cooler and related service differences.
Carburetor procedures cover the YFA 1-V, 5200 2-V, 2150 2-V, 4350 4-V and 2700 VV. Dura Spark I and II ignition, cooling, starter overhaul, exhaust, Thermactor and EGR receive their own treatment. Engine-removal illustrations specify equipment such as lifting sling T53L-300-A.
Chassis and Transmission References
The Sliding Caliper Assembly sectional view, C6 Automatic Transmission sectional view and FMX Hydraulic Control System diagram support component identification and internal service. Axle procedures include pinion-depth measurements using T75P-4020-A.
The axle instructions explain how loosening the pinion nut after excessive spacer collapse can release bearing compression and allow the front bearing cone to turn on the shaft, risking damage.
Assembly-specific specifications include torque tables, clearances, wear and runout limits, fluid capacities, belt-tension data and electrical test values.
Electrical, A/C and Sure-Track Diagnosis
A/C airflow and vacuum-control charts accompany model-specific diagnosis. Selected wiring diagrams and continuity tests address the tachometer, heated rear window, illuminated entry and automatic temperature control.
Radio diagnosis references tester T65P-18805-A; speed-control tests reference ARE-22015. The amplifier-testing caution explains that a test lamp can draw enough current to damage its electronic components.
Sure-Track material combines a wiring diagram, warning-light diagnosis chart and individual circuit tests. For the Lincoln Continental and Continental Mark V hydraulic system, the actuator is serviced as a complete unit, with field disassembly expressly excluded.
Glass, Roof and Body Mechanisms
Window procedures distinguish dual U-run and single tubular-run mechanisms. The Moon Roof exploded component chart accompanies cable, track, panel-alignment and water-leak work; separate sections address removable manual roofs and car-line body dimensions.
Engine and transmission removal, brake testing and Refrigerant 12 A/C service call for secure vehicle support and suitable lifting, refrigerant-service and test equipment. Follow the safety instructions for the assembly being serviced.
Examples of Sure-Track Electrical Test Specifications
For Lincoln Continental and Continental Mark V cars equipped with four-wheel power disc brakes and Sure-Track, the sensor-circuit specification is 2,400–3,200 ohms.
The actuator-solenoid circuit has a separate 2–8-ohm range. Related sections distinguish sensor-output, ground and failure-switch tests, while the diagnostic chart connects warning-light behavior with possible circuit faults.
