Ford Mustang 1979–1992 Repair Manual Collection

The Haynes volume provides the main maintenance, repair and engine-overhaul coverage. The Ford/Mitchell articles add application-specific procedures, electrical tests and selected model-year wiring diagrams.

Application limits: The general Ford engine articles also cover other vehicle applications. Match the vehicle year, engine/VIN code and transmission before selecting a procedure. The separate TSB document contains bulletin summaries and reference numbers, not complete bulletin texts.

PDF Search, Bookmarks and Wiring Detail

Search and diagram labels: Ten supplemental text PDFs support text search; three wiring PDFs offer search mainly in headings and captions. The Haynes volume and eleven earlier excerpts have no PDF text search. Only the Haynes PDF has embedded bookmarks. Small wiring labels require zooming, and some Haynes diagrams remain faint or soft when enlarged.

The ZIP contains 25 printable PDFs in English, totaling 671 pages. This includes five opening pages, two blank pages, seven index pages and a color spark-plug chart within the Haynes volume, plus the separate one-page TSB index.

Engine, Drivetrain and Electrical Repair Coverage

The selected topics below outline the main repair areas. Additional material includes body-trim removal and owner safety checks.

• Engine repair: Step-by-step procedures for engine removal, timing-belt and timing-chain work, cylinder-head and valvetrain service, internal inspection, rebuilding and initial start-up.

• Fuel and emissions: Carburetor diagnosis and overhaul, CFI/EFI/SEFI component replacement, turbocharger removal and installation, and EEC-IV, EGR, PCV and evaporative-system checks.

• Cooling and HVAC: Thermostat and fan testing, radiator and water-pump replacement, heater controls, blower motors, heater cores and air-conditioning component service.

• Transmission and driveline: Unit removal and installation, automatic-transmission diagnosis and adjustment, clutch service and bleeding, universal joints, rear axles and Traction-Lok overhaul.

• Brakes and chassis: Disc and drum brake service, caliper and wheel-cylinder overhaul, hydraulic bleeding, wheel bearings, steering components and suspension removal procedures.

• Electrical diagnosis: Motorcraft alternator/regulator and starter tests, TFI-IV fault isolation, fuse charts, gauge and power-window testing, wiper checks and an illustrated component locator.

• Wiring diagrams: Typical Haynes circuits plus separate 1980, 1982, 1985, 1988 and 1992 files covering vehicle wiring regions and selected accessory circuits.

The material is suited to experienced home mechanics and technicians who can match procedures to the vehicle configuration and have suitable test equipment and lifting support.

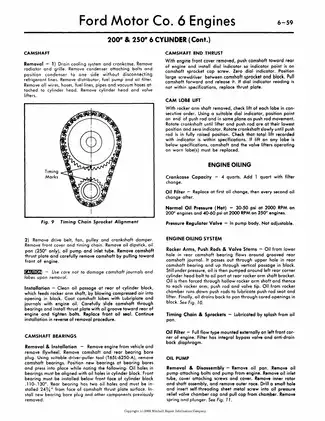

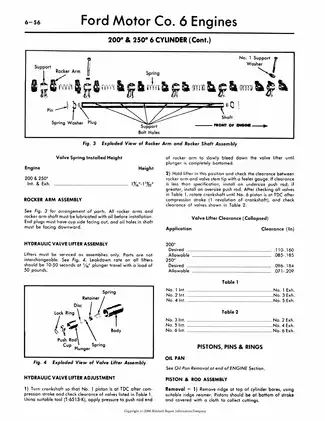

Engine Inspection and Rebuilding

Separate Haynes sections distinguish the four-cylinder, inline-six, 2.8L V6, and 3.8L V6/V8 procedures. Coverage includes manifolds, camshafts and followers, hydraulic lifters, crankshaft seals, oil pans and oil pumps.

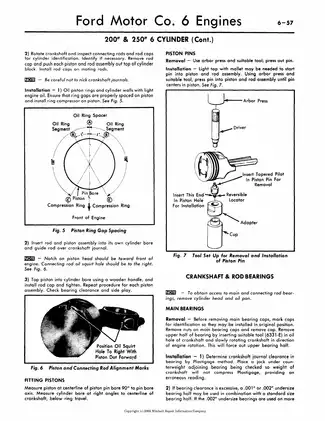

The general overhaul chapter adds block and head inspection, cylinder honing, valve service, pistons, connecting rods, bearings and reassembly. Torque tables, fluid data, wear limits and clearances accompany the related assemblies.

Engine-build differences: The supplemental articles distinguish standard and HO V8 components and firing orders, as well as turbocharged and naturally aspirated four-cylinder applications. Standard and HO intake, cylinder-head, piston, camshaft, valve and exhaust components are not interchangeable.

The 2.3L valvetrain section warns that rotating the crankshaft or camshaft before the lifters are collapsed after follower work can cause serious valve damage. Supporting illustrations include the Cross-Sectional View of Engine Oil Circuit and Exploded View of Timing Belt & Components.

Transmission Limits and Rear-Axle Work

The manual identifies SROD, RAD, ET and T50D manual transmissions, plus C3, C4, C5, AOD and A4LD automatics. Transmission coverage concentrates on general diagnosis, maintenance, linkage adjustment, seals and unit removal and installation; it does not provide a complete internal transmission rebuild procedure.

The axle articles extend into pinion-depth measurement, bearing preload, backlash, propeller-shaft alignment and Traction-Lok clutch-pack service. The Exploded View of Ford Motor Co. Traction-Lok Differential supports component identification.

Charging, Starting and Ignition Diagnosis

The charging article separates rear- and side-terminal Motorcraft alternators with external regulators. On-vehicle and bench tests help distinguish wiring or regulator faults from internal alternator faults before teardown.

The starter article adds voltage-drop and load checks, armature and field-circuit tests, inspection and overhaul. TFI-IV coverage includes coil and harness checks, stator and module testing, distributor service and the TFI-IV Ignition System Wiring Diagram.

Named tools include Camshaft Belt Tensioner T74P-6254-A, Lifter Bleed Down Wrench T71P-6513-B, Spring Lock Coupling Removers D87L-9280-A/B, and Alternator Shaft Holder T65P-10300-B.

The Motorcraft alternator article warns that turning a flat-type rectifier terminal screw during removal destroys its retaining serrations.

Circuit Selection and Workshop Safety

The Haynes diagrams are typical examples rather than complete wiring coverage for every model year. Examples include Power Distribution — 1987 and Later Models and Power Window Circuit, Convertible (1992) in the separate wiring material.

The 1980, 1982 and 1985 files organize wiring by vehicle region. The 1988 and 1992 files cover selected circuits such as starting/charging, windows, locks, mirrors, seat/lumbar systems, radio, wiper/washer and release circuits. The component locator supplies eleven illustrated views.

Follow the safety instructions tied to each procedure: support a raised vehicle with proper stands or a hoist, relieve fuel pressure before opening EFI lines, and disconnect the negative battery cable before electrical component removal. Live charging and starter tests require the specified circuit precautions.

A Preview of Alternator Test and Wear Specifications

The Motorcraft alternator section specifies 2.0–3.5 ohms between the rotor slip rings for its open/short-circuit bench check.

Its brush specifications list a new length of 0.48 inch (12.2 mm) and a wear limit of 0.25 inch (6.4 mm), alongside the alternator inspection and overhaul material.
