Dodge Dakota 2005–2008 Service & Repair Manual Set

5,706 Pages • ZIP Download: 10 Printable PDFs • 104.79 MB

4.5starstarstarstarstar_half(2)
$18.77 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Dodge Models Covered & Key Technical Specifications

Model & Model Codes: Dakota (ND)

Sub-models / Variants: 4x2 (VIN position 5: E), 4x4 (VIN position 5: W), ST, SLT, Sport, LARAMIE, Club Cab, Quad Cab

Model Years: 2005–2008 (2005, 2006, 2007, 2008)


  • Engine Options: 3.7L 6-cylinder MPI Gasoline (VIN position 8: K), 4.7L 8-cylinder MPI Gasoline (VIN position 8: N), 4.7L 8-cylinder MPI High Output Gasoline (VIN position 8: J)

  • Engine Oil Capacity (3.7L): 4.7 liters (5.0 qts)

  • Engine Oil Capacity (4.7L): 5.6 liters (6.0 qts)

  • Cooling System Capacity: 15.4 liters (16.2 qts)

  • Fuel Tank Capacity: 25 U.S. Gallons (95 Liters)

  • Suspension Adjustment: Front caster 3.5° ± .05°, camber 0.25° ± .50°

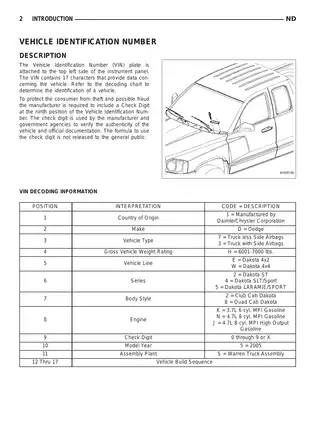

  • VIN Series Codes (2005): Position 6: 2 = ST, 4 = SLT/Sport, 5 = LARAMIE/SPORT

  • VIN Body Codes (2005): Position 7: 2 = Club Cab, 8 = Quad Cab

  • Transmission Variants (2005 Dakota): Getrag 238 (G238) manual, with 2WD and 4WD procedures; 42RLE automatic; 545RFE automatic

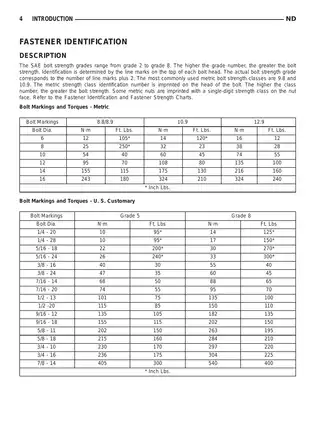

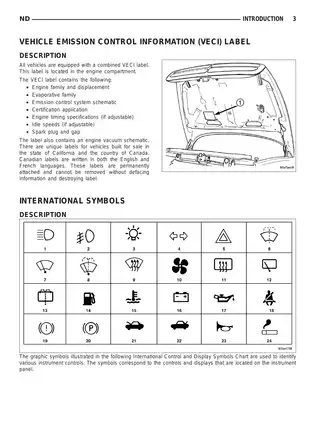

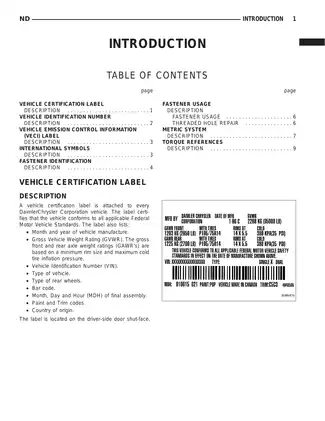

Dodge Manual Features & Selected Content Preview

Publication Pages
2005 Dodge Dakota ND Service Manual — mechanical, powertrain, chassis, body, electrical, and diagnostic information 5,249
2007 Dodge Dakota System Wiring Diagrams 121
2008 Dodge Dakota Electrical Component Locator 45
2008 Dodge Dakota Audio/Video Service Information 84
2008 Dodge Dakota Charging 10
2008 Dodge Dakota Navigation/Telecommunication Service Information 4
2008 Dodge Dakota Starting Service Information 28
2008 Dodge Dakota Wiring Diagram Information 27
2008 Dodge Dakota System Wiring Diagrams 117
2008 Dodge Dakota DTC Index 21

The factory service volume provides the mechanical repair procedures, while the later publications supply year-specific circuit diagrams, component locations, and selected electrical service information.

Year-specific coverage: Mechanical repair information applies to 2005. The collection does not include complete mechanical service manuals for 2006, 2007, or 2008.

PDF Search, Bookmarks, and File Breakdown

Text search and diagram detail: The main manual has searchable service text and embedded chapter and component bookmarks, but many wiring pages lack searchable labels. Its Welcome, Instructions, and Foreword bookmarks point to separate files outside this download. The nine additional PDFs have no embedded bookmarks; their text sections and diagram captions are searchable, while labels inside diagram images are not. Dense wiring diagrams require zooming to read small circuit and pin labels.

The ZIP contains 10 printable PDFs totaling 5,706 pages. This total includes the main volume’s one-page Group Tab Locator, 29 blank pages, and two service-manual comment pages.


Powertrain Repair, Chassis Service, and Electrical Diagnosis

These selected content highlights outline the repair coverage rather than reproduce the full contents. Other topics include exhaust-system service and frame inspection references.

  • Engine repair: Step-by-step engine removal and installation, cylinder-head and valvetrain service, bottom-end inspection, bearing fitting, oil-pump work, and timing-drive procedures.

  • Transmission and clutch: Getrag 238 teardown and assembly, 42RLE and 545RFE diagnosis and overhaul, clutch inspection, and hydraulic-linkage replacement.

  • Transfer cases and axles: NV233 and NV244 repair, C205F front-axle service, rear differential overhaul, and propeller-shaft, half-shaft, CV-joint, and universal-joint procedures.

  • Suspension, steering, and brakes: Ride-height and alignment procedures, control-arm and hub replacement, steering service, brake bleeding, and rear-wheel and all-wheel ABS diagnosis.

  • Electrical troubleshooting: PCM, CAN, charging, starting, lighting, restraints, theft-security, and power-accessory diagnosis, supported by wiring, connector, ground, and splice references.

  • Body and HVAC: Cab-specific body-component removal and installation, HVAC fault diagnosis, actuator service, leak testing, and refrigerant recovery, evacuation, and charging.

This material suits technicians and experienced owners who can interpret circuit diagrams and use scan tools, precision measuring equipment, and the fixtures required for internal repairs.

Engine, Cooling, and Fuel-System Work

Separate engine chapters cover the 3.7L and 4.7L, with distinct standard and High Output V8 specifications. They include compression and combustion-leak testing, oil-pressure diagnosis, cylinder-head inspection, valve and seat work, crankshaft inspection, and piston and ring measurements. Timing-chain inspection and timing verification accompany the installation procedures.

Cooling coverage includes pressure and leak tests, thermostat diagnosis, radiator and water-pump replacement, and drain/refill procedures. Fuel-system sections address pressure release, pump-module and fuel-rail service, injectors, and engine-management sensors. EVAP diagnosis includes Natural Vacuum Leak Detection faults.

Maintenance Schedules A and B distinguish operating conditions, with lubricant requirements, capacity tables, fluid-check references, and towing guidance.

Transmission and Differential Repair Depth

The automatic-transmission chapters combine DTC routines with road tests, hydraulic-pressure checks, clutch-air tests, and repair verification. Internal coverage extends to clutch assemblies, pumps, valve bodies, and hydraulic schematics. The Getrag section includes internal inspection and reassembly procedures.

The clutch hydraulic linkage is serviced as a complete assembly; its individual components are not separately overhauled. Differential setup covers pinion depth, bearing preload, backlash, contact patterns, and shim selection for the C205F front axle and 8 1/4- and 9 1/4-inch rear axles, including Trac-Lok units.

Chassis, Body, and Climate Control

Suspension work includes bushings, ball joints, springs, shocks, and wheel hubs. Steering sections address the rack-and-pinion gear and power-steering system; brake coverage includes hydraulic-unit service as well as base-brake and ABS diagnosis.

Body procedures distinguish Club Cab and Quad Cab arrangements where applicable. Covered components include the cargo box, doors, glass, window regulators, instrument panel, seats, and tailgate. HVAC sections extend to control diagnostics, actuators, housings, and refrigerant-system performance testing.

Circuit References and Later-Year Electrical Files

The factory Group 8W material connects circuit identification with connector pin-outs and ground and splice locations. Diagram examples span engine performance, CAN data lines, ABS, supplemental restraints, transfer-case controls, and power distribution.

The later wiring publications include 4.7L Flex Fuel circuits. The component locator provides illustrated references for modules, relays, sensors, connectors, grounds, and splices. Separate service extracts address audio equipment, hands-free telecommunications, charging, starting, and wiring repair.

For a slow-cranking complaint, the 2008 starting section provides feed- and ground-circuit voltage-drop tests to distinguish excessive circuit resistance from starter or engine faults. Its DTC index lists codes and descriptions; it is not a replacement for complete diagnostic procedures for every listed code.

Special Tools and Component-Specific Cautions

Tool references include Ball Joint Press C-4212F, Shock Nut Wrench 9362, Inclinometer 7663, Timing Chain Holding Fixture 8429, and Engine Support Fixture 8534, plus transmission and axle measuring and installation tools.

The C205F pinion procedures warn that excessive tightening can damage the collapsible spacer or bearings. Engine cautions explain that damaging or magnetizing the camshaft target wheel can cause a no-start condition.

Brake hydraulics, airbag circuits, pressurized fuel and coolant, vehicle lifting, and R-134a service require the specified safety, isolation, recovery, and support equipment.

Preview of Camshaft Inspection Specifications

For the 3.7L engine, the camshaft specification table lists bearing clearance of 0.025–0.065 mm and end play of 0.075–0.200 mm. These inspection values accompany the engine repair material and illustrate the component-level dimensional data included alongside the removal, installation, and timing procedures.
