Toyota Camry 2007–2009 Repair Manual Set (P/N RM0250U)

The construction explanations support the diagnostic and repair sections, while the wiring references connect circuit tests to physical connectors, junction blocks, and grounds.

The mechanical lineup identifies left-hand-drive configurations; the collision volume also provides general-export alignment specifications. Its welded-panel instructions start from a stripped body and exclude finish-painting procedures.

Searchable PDFs and Wiring Detail

Text search and navigation: The readable PDFs contain searchable service text. Most embedded bookmarks use source filenames rather than descriptive chapter names. 2AZ-FE_Exhaust.pdf has no bookmarks, and 20 bookmarks in Seat.pdf lack destinations. Small, densely arranged wiring labels require zooming.

The ZIP contains 64 readable, printable PDFs totaling 8,537 pages: 61 repair-section files and one file for each companion publication. Front matter, appendices, 30 memo pages, and overlapping brake-control and parking-brake sections are included in the total. An additional damaged REPAIR MANUAL/Clutch.pdf is excluded; the readable 41-page clutch section is supplied in 2AZ-FE MODELS/Clutch.pdf.

Powertrain Repair, Circuit Diagnosis, and Body Systems

These selected contents show the main workshop coverage. Further topics include cruise-control troubleshooting and tire-pressure warning-system diagnosis.

• Engine repair: Step-by-step engine removal, cylinder-head and engine-unit disassembly, internal inspection, timing-chain installation, and reassembly for the 2AZ-FE and 2GR-FE.

• Engine-control diagnosis: SFI diagnostic trouble-code charts, freeze-frame data, Active Tests, monitor confirmation patterns, and sensor-circuit inspection procedures.

• Transaxles and clutch: E351 manual-transaxle overhaul, U250E and U660E hydraulic testing, valve-body service, internal disassembly, and clutch-system repair.

• Brakes and chassis: ABS/VSC troubleshooting, brake bleeding, yaw-rate and acceleration-sensor calibration, wheel alignment, axle service, and power-steering repair.

• Electrical circuits: System schematics, relay locations, harness routing, junction-block layouts, connector identification, ground points, and power-distribution charts.

• Body electronics: Smart Key and immobilizer registration, SRS diagnosis, occupant-classification calibration, power-window initialization, and air-conditioning fault tracing.

• Collision repair: Welded-panel replacement and body-dimension drawings, with regional construction differences and corrosion-protection information.

This set suits technicians familiar with scan-tool diagnosis and component overhaul; advanced procedures call for Toyota’s intelligent tester and the specified special service tools.

Engine and Transaxle Repair

The engine sections extend to piston, crankshaft, bearing, and cylinder-head inspection. The 2AZ-FE material includes valve-clearance adjustment and balance-shaft inspection; the 2GR-FE section covers its valve-lash adjusters and dual-VVT-i timing components.

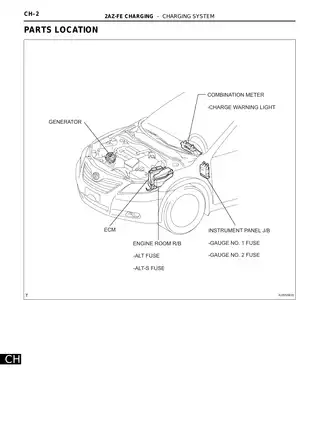

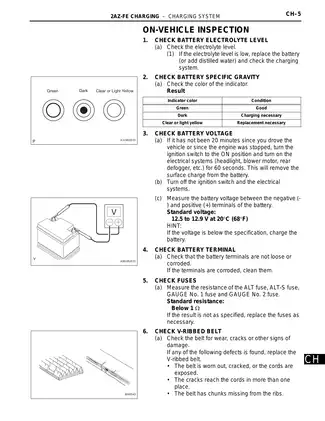

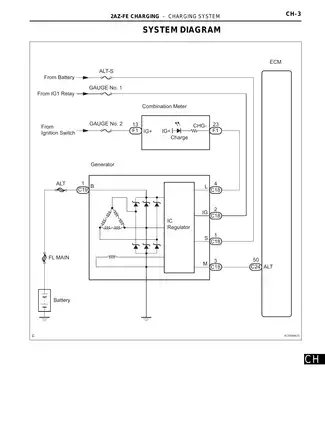

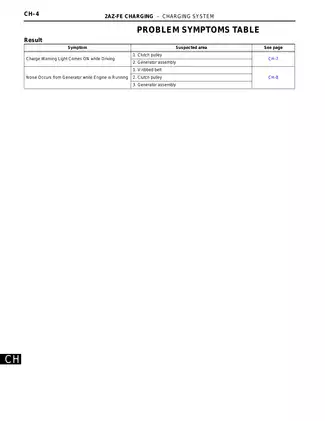

The 2AZ-FE cylinder-head instructions warn that an incorrect bolt-removal sequence can warp or crack the head. Cooling, fuel, lubrication, starting, and charging sections add water-pump replacement, injector testing, oil-pump inspection, and starter and generator overhaul.

Transmission variants: The E351 manual and U250E automatic are paired with the 2AZ-FE; the U660E automatic is paired with the 2GR-FE. The automatic-transaxle chapters combine symptom tables and electrical diagnosis with hydraulic tests, torque-converter inspection, and overhaul procedures.

Circuit and System Documentation

Technicians can follow power flow from the battery through individual fuses, fusible links, and relays down to the final electrical loads. Relay-location and harness-routing references connect each circuit to its physical connectors and ground points, helping locate faults behind the instrument panel or within the engine compartment.

Circuit examples include Engine Control for 2AZ-FE, Engine Control for 2GR-FE, Multiplex Communication System – CAN, and ABS with VSC. The Power Source current-flow charts and overall wiring diagrams show connections across systems.

Variant notes distinguish TMC and TMMK production and vehicles with or without the Smart Key System. Connector charts, terminal identification, and service-hint reference values support multimeter inspections. The wiring volume’s first printing is dated January 13, 2006.

Brakes, Climate Control, and Restraints

Brake-control procedures distinguish ABS and VSC configurations and explain calibration requirements associated with sensor replacement and alignment work.

Air-conditioning coverage includes refrigerant service, blower and air-conditioning-unit removal, and sensor and actuator diagnosis.

The SRS section includes occupant-classification zero-point calibration and sensitivity checks. During electrical testing, particularly around the supplemental restraint system, follow the manual’s safety protocols to prevent accidental airbag deployment or electrical shorts.

Collision Repair and Workshop References

Body-panel instructions distinguish relevant TMC/TMMK construction differences. They specify cutting and welding locations, panel-fit standards, seam sealing, and protective coatings.

The collision manual explains that heat-straightening structural panels can reduce steel strength and damage the corrosion-resistant coating.

Separate Service Specifications and Preparation files collect torque tables, inspection limits, fluid-capacity data, electrical test specifications, and required tools. Preparation identifies the specified SSTs, including oil-pan seal cutter 09032-00100.

Selected Valve-Clearance and Thermostat Inspection Data

For cold 2AZ-FE valve-clearance inspection, the standard ranges are 0.19–0.29 mm at the intake valves and 0.38–0.48 mm at the exhaust valves. These accompany the valve-lifter selection and adjustment material.

Thermostat inspection data distinguish the engines: at 95°C, standard valve lift is at least 10 mm for the 2AZ-FE and 7.7 mm for the 2GR-FE. These specifications accompany the cooling-system inspection procedures.
