Acura MDX 2006 Service & Repair Manual Collection
4,714 Pages • ZIP Download: 73 Printable PDFs • 277.05 MB
Acura Models Covered & Key Technical Specifications
Model: MDX (5-speed automatic: MDKA for 2003–2005; BDKA for 2006)
Model Years: 2003–2006 (2003, 2004, 2005, 2006)
-
Engine coolant temperature, EGR flow monitor enable condition: 156°F (69°C) minimum
-
Intake air temperature (IAT) sensor resistance characteristic: Increases as temperature decreases
-
EGR insufficient-flow malfunction threshold: Current-to-normal EGR flow ratio of 15% or less for at least 3 seconds during deceleration with the throttle fully closed
-
Throttle position (TP) sensor A output voltage threshold: 0.3 V or less for DTC P0122; 4.8 V or more for DTC P0123, each for at least 0.2 seconds with the engine running
-
Cooling-system DTC P0128 confirmation test: HDS RADIATOR FAN TEST for 20 minutes
Acura Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2006 MDX — Advanced Diagnostics | 381 |
| 2003–2006 MDX — SRS / Airbags | 565 |
| 2003–2006 MDX — Audio System | 134 |
| 2003–2006 MDX — Automatic Transmission | 457 |
| 2003–2006 MDX — Driveline / Axle Shafts | 127 |
| 2003–2006 MDX — Battery | 1 |
| 2003–2006 MDX — Conventional Brake Components | 82 |
| 2003–2006 MDX — Bumpers | 8 |
| MDX — Dust & Pollen Filter; procedure labeled 2001–2006 | 7 |
| Supplementary Cabin-Filter Photo Guide | 2 |
| 2003–2006 MDX — Charging System | 38 |
| 2003–2006 MDX — Consoles | 13 |
| 2003–2006 MDX — Fan Controls | 9 |
| 2003–2006 MDX — Cooling System | 29 |
| 2003–2006 MDX — Cruise Control | 12 |
| 2003–2006 MDX — Cylinder Head | 164 |
| 2003–2006 MDX — Dashboard | 27 |
| 2003–2006 MDX — Rear Window Defogger | 6 |
| 2003–2006 MDX — Keyless / Power Door Locks / Security | 52 |
| 2003–2006 MDX — Doors | 76 |
| 2003–2006 MDX — EGR System | 34 |
| 2006 MDX — Electrical Component Locations | 172 |
| 2003–2006 MDX — Engine Assembly | 66 |
| 2003–2006 MDX — Engine Block | 83 |
| 2003–2006 MDX — Engine Lubrication | 22 |
| 2003–2006 MDX — Engine Mount Control System | 8 |
| 2003–2006 MDX — EVAP System | 123 |
| 2003–2006 MDX — Exterior Lights | 44 |
| 2003–2006 MDX — Exterior Trim | 11 |
| 2003–2006 MDX — Fenderwell | 11 |
| 2003–2006 MDX — Frame | 8 |
| 2003–2006 MDX — Front Suspension | 36 |
| 2003–2006 MDX — Fuel and Emissions Systems | 110 |
| 2003–2006 MDX — Fuel Supply System | 83 |
| 2003–2006 MDX — Fuse / Relay Boxes | 7 |
| 2003–2006 MDX — Gauges | 40 |
| 2003–2006 MDX — Glass | 40 |
| 2003–2006 MDX — Hood | 8 |
| 2003–2006 MDX — Horns | 10 |
| 2003–2006 MDX — Idle Control System | 27 |
| 2003–2006 MDX — Ignition Switch | 3 |
| 2003–2006 MDX — Ignition System | 17 |
| 2003–2006 MDX — Intake Air System | 29 |
| 2003–2006 MDX — Intake Manifold and Exhaust System | 16 |
| 2003–2006 MDX — Interior Lights | 33 |
| 2003–2006 MDX — Interior Trim | 63 |
| 2003–2006 MDX — Lubricants & Fluids | 2 |
| 2003–2006 MDX — Mirrors | 12 |
| 2003–2006 MDX — Moonroof | 27 |
| 2005–2006 MDX — Navigation System | 120 |
| 2003–2006 MDX — Openers | 13 |
| 2003–2006 MDX — PCV System | 7 |
| 2003–2006 MDX — PGM-FI System | 291 |
| 2004–2006 MDX Touring — Power Lumbar Support | 8 |
| 2003–2006 MDX — Power Mirrors | 23 |
| 2003–2006 MDX — Power Moonroof | 11 |
| 2003–2006 MDX — Power Seats | 21 |
| 2003–2006 MDX — Power Steering | 157 |
| 2003–2006 MDX — Power Windows | 28 |
| 2003–2006 MDX — Rear Differential | 100 |
| 2003–2006 MDX — Rear Entertainment System | 37 |
| 2003–2006 MDX — Rear Suspension | 46 |
| 2003–2006 MDX — Relays | 11 |
| 2003–2006 MDX — Seat Heaters | 11 |
| 2003–2006 MDX — Seats | 89 |
| 2003–2006 MDX — Specifications | 29 |
| 2003–2006 MDX — Starting System | 36 |
| 2003–2006 MDX — Tailgate | 6 |
| 2003–2006 MDX — Under-Dash Fuse / Relay Box | 3 |
| 2003–2006 MDX — VSA System Components | 114 |
| 2003–2006 MDX — VTEC | 23 |
| 2003–2006 MDX — Wipers / Washers | 36 |
| 2006 MDX — System Wiring Diagrams | 159 |
The repair topics work alongside the separate specifications and circuit diagrams for component diagnosis and workshop preparation. Many component illustrations are credited to American Honda Motor Co., Inc.
Coverage limits: Internal transmission specifications and diagnostic tables are included, but the collection does not contain a complete internal transmission teardown and rebuild sequence. Air-conditioning material covers wiring, specifications, and cabin-filter service rather than a full HVAC repair chapter.
PDF Search, Diagram Detail and File Organization
Text access and diagram labels: Service text supports keyword searches, while lettering within embedded drawings is not searchable. The system-wiring file has searchable headings and captions, and the supplementary filter guide has searchable instructions followed by a photo page. None of the PDFs has embedded bookmarks. Small wiring labels require zooming.
The ZIP contains 73 printable PDFs totaling 4,714 pages, including the wiring volume’s 80 heading/caption-only pages and the supplementary two-page cabin-filter guide. An HTML index and readme are also included.
Engine Repair, VTM-4 and Electrical Diagnosis
These selected service topics outline the main repair areas; additional subjects include engine-mount control diagnosis and cruise-control input tests.
-
Engine service: Step-by-step engine removal and installation, compression and VTEC rocker-arm testing, valve-clearance adjustment, timing-belt service, and cylinder-head/block repair.
-
PGM-FI and emissions: Fault isolation and sensor/actuator testing, supported by fuel-supply, EVAP, EGR, VTEC, PCV, intake-air, ignition, and idle-control procedures.
-
Automatic transmission: DTC and symptom diagnosis, road/stall/pressure testing, solenoid and speed-sensor service, transfer-assembly work, and complete transmission removal/installation.
-
Driveline and VTM-4: Front, rear, and intermediate driveshaft service, propeller-shaft inspection, rear-differential diagnosis, and control-unit initialization.
-
Brakes, steering and suspension: Conventional brake repair and bleeding, VSA troubleshooting, steering pressure tests and gearbox overhaul, and front/rear suspension work.
-
SRS: Post-deployment inspection, airbag, cable-reel and impact-sensor replacement, OPDS initialization, and front-passenger weight-sensor calibration.
-
Electrical and accessories: Wiring and connector references, fuse/relay checks, charging and starting diagnosis, and dedicated body-electrical and entertainment-system procedures.
This material suits technicians and experienced DIY owners who can follow circuit tests and have access to the specified diagnostic equipment and special tools.
Internal Engine Work and Cooling Service
Internal engine work extends to camshaft inspection, valve and guide repair, valve-seat reconditioning, crankshaft and piston service, bearing selection, and oil-pump overhaul.
Cooling procedures cover radiator-cap and thermostat testing, water-pump replacement, radiator service, and fan-motor and control-circuit checks.
HDS Troubleshooting and Monitor Logic

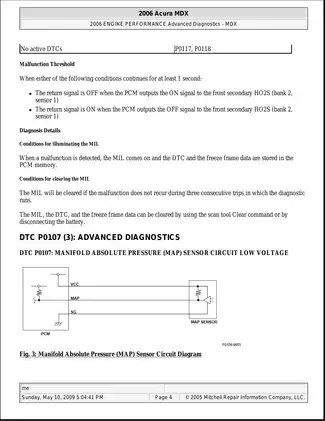

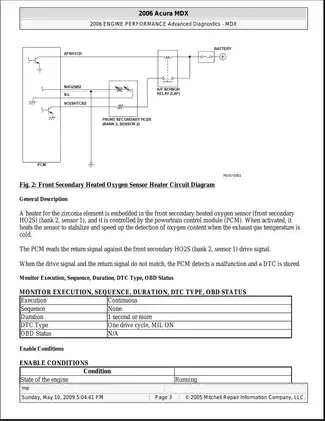

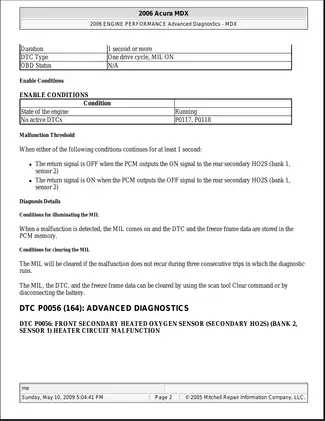

The 2006 advanced-diagnostics volume contains 179 diagnostic entries covering 189 named DTCs, supported by 267 numbered figures. Monitor enable conditions, malfunction thresholds, MIL and freeze-frame behavior, and clearing logic help explain when a fault can set and whether a confirmation test has completed.
Sensor coverage includes MAP, IAT, ECT, throttle-position, A/F, and HO2S circuits. Other entries address fuel trim, misfire, catalyst monitoring, EVAP, EGR, electronic throttle control, transmission monitoring, VTEC, and F-CAN communication faults.
Related service files add HDS/PCM troubleshooting, freeze-data use, PCM updating and substitution, PCM idle learn, CKP pattern learning, and throttle-position learning checks.
Circuit References and Equipment Differences

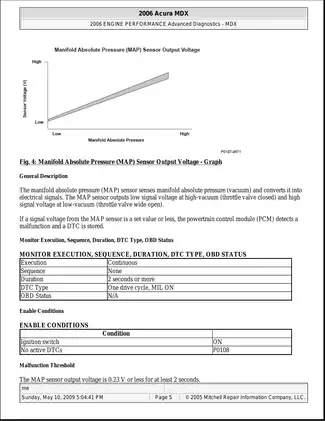

Illustrated references include the five-part 3.5L Engine Performance Circuit, MAP sensor output-voltage graphs, and the gear-position-to-shift-solenoid table. Further examples include the FCAN bus-off circuit, VTM-4/VSA communication diagrams, and SRS/OPDS circuit and component views.
SRS layouts distinguish 2003 from 2004–2006, with later-model side-curtain airbag information. Audio sections distinguish Bose/non-Bose systems and equipment combinations.
Accessory files cover lighting, gauges, security, power windows, locks, mirrors, seats, moonroof, rear entertainment, and navigation. Starting and charging material also includes starter and alternator overhaul procedures.
Special Tools and Repair Cautions
Engine work identifies the EQS02BMDXSB0 front-subframe adapter and 07VAJ-P8A010A VTEC air adapter. Driveshaft service lists the 07MAC-SL0A102 ball-joint remover.
Other references include the 070AZ-SAA0100 SRS short canceller, KTC trim tools, HDS functions, and system-specific pressure-test adapters.
The brake troubleshooting section explains how incorrectly positioned upper and lower front-caliper pins can cause vibration and uneven or rapid pad wear. The transmission section warns that contamination left in the ATF cooler can cause repeat failure after a replacement or remanufactured transmission is installed.
VTM-4 control-unit replacement includes initialization needed for correct 4WD operation. Transmission service also covers ATF-cooler cleaning and shift-cable adjustment.
Engine removal, SRS work, brake/VSA service, pressurized fuel and power-steering diagnosis, and transmission cooler cleaning require the correct lifting, isolation, diagnostic, and protective equipment. Repairs beyond the user’s training or shop capability should be handled by a qualified technician.
Sample Valve Clearances and Head Inspection Limits
The separate specifications file brings engine, transmission, rear-differential, steering, suspension, brake, and air-conditioning standards and service limits together for comparison with inspection measurements.
The valve-adjustment section gives intake clearance as 0.20–0.24 mm and exhaust clearance as 0.28–0.32 mm; both apply with the cylinder head below 100°F (38°C).
The cylinder-head inspection table lists a warpage service limit of 0.05 mm, separately from the standard dimensions and clearances.
