Acura MDX 2007–2009 Repair & Owner’s Manual Set (P/N 00X31-STX-6102)

The repair files support workshop diagnosis and component repair; the Owner’s Manuals explain vehicle operation and routine owner checks. Repair information is organized into individual system files with illustrations attributed to American Honda Motor Co., Inc.

File-specific coverage: Conventional brakes and the DTC index are labeled 2007–2008; advanced diagnostics and electrical-component locations are labeled 2008; exterior trim is labeled 2008–2009.

Searching the Files and Reading Diagrams

Text search and diagram detail: Body text and captions are searchable, but labels embedded in diagram images are not. The PDFs have no embedded bookmarks or active navigation links, including the blue contents entries in the 2009 Owner’s Manual. Small PCM, SRS, SH-AWD and multiplex wiring labels require zooming; some lettering remains pixelated.

The ZIP contains 87 printable PDFs totaling 5,408 pages. This includes three added notice pages within the repair files, eight blank pages across the Owner’s Manuals, and the original front matter, indexes and service summaries.

Engine, Drivetrain and Electrical Repair

These selected coverage highlights summarize the main workshop topics. Other included procedures address rear-window defogger wire repair and hood adjustment.

• Engine and emissions: Engine removal and installation, timing-belt service, valve-clearance adjustment, VTEC rocker-arm testing, cylinder-head work, crankshaft and piston inspection, PGM-FI diagnosis, emissions fault isolation, and PCM reset and relearn operations.

• Automatic transmission: Road and stall-speed tests, hydraulic pressure testing, solenoid checks, removal and installation, valve-body repair, clutch inspection, and internal disassembly and reassembly.

• SH-AWD and chassis: SH-AWD function and electromagnetic-clutch tests, rear-differential overhaul, VSA diagnosis, brake bleeding and caliper overhaul, steering pump tests and gearbox overhaul, and front suspension service.

• SRS: DTC diagnosis, ODS initialization and calibration, passenger weight-sensor service, airbag and side-curtain replacement, and post-deployment inspection.

• Climate control: A/C system diagnosis, sensor and actuator tests, compressor-clutch overhaul, and front and rear HVAC component service.

• Electrical diagnosis: B-CAN troubleshooting, PCM and multiplex circuits, connector and control-unit tests, plus TPMS, gauges and lighting diagnosis.

• Body and convenience systems: Repair information for navigation, AcuraLink, audio, driver-position memory, keyless security, power tailgate, windows, seats, doors, moonroof and interior trim.

The repair files suit professional technicians and experienced DIY owners with automotive repair knowledge, HDS access, electrical test equipment, lifting equipment and the specified special tools.

HDS Diagnosis and Equipment Differences

DTC indexes and decision paths support HDS/SCS code retrieval, freeze-data and on-board snapshot use, symptom checks and module input/output tests. B-CAN communication checks and connector-terminal references help distinguish a shared network problem from a local circuit or control-unit fault.

Procedures account for navigation and non-navigation vehicles, AcuraLink, rear entertainment and power-tailgate equipment. Front suspension instructions distinguish vehicles with and without active dampers.

Mechanical Repair and Workshop References

Step-by-step procedures cover major work such as timing-belt replacement and transmission disassembly and reassembly. Cooling and lubrication files add thermostat testing, water-pump replacement, oil-pressure testing and oil-pump overhaul; separate starting and charging files include starter and alternator overhaul.

Transmission coverage extends to transfer-gear backlash and bearing-preload checks. SH-AWD procedures include control-unit updating and initialization, plus differential clutch-torque memorization.

Named tools include the EQS02BMDXSB0 front subframe adapter, 07VAJ-P8A010A VTEC air adapter, 07AAJ-PNAA101 air-pressure regulator and 07SAZ-001000A backprobe set. The specifications cover component torques, fluid capacities, test pressures, electrical test values, clearances, wear limits and adjustments.

Circuit Diagrams and Exploded Views

Electrical references include the six-part PCM Electrical Connections wiring diagram, two-part Rear Differential Circuit Diagram, four-part SRS System Circuit Diagram and Multiplex Integrated Control System Circuit Diagram. Connector views and diagnostic charts accompany the system descriptions.

Automatic-transmission Hydraulic Flow Diagrams show fluid routing for different operating conditions. Separate damper/spring exploded views show active-damper and standard assemblies.

Owner Operation and Configuration

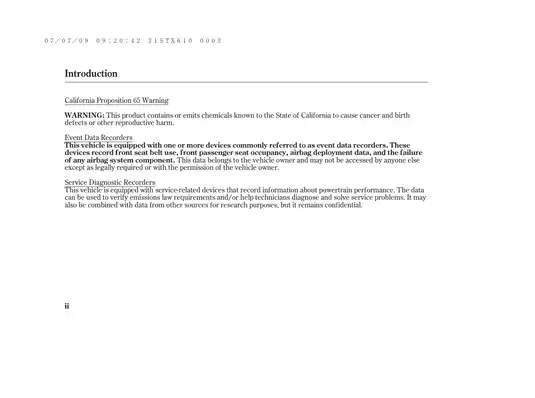

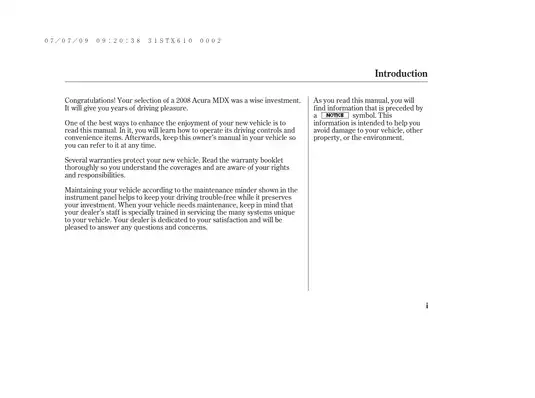

The Owner’s Manuals explain instrument indicators, gauges, the multi-information display, SH-AWD and TPMS displays, driver-position memory, climate and audio controls, power tailgate and keyless entry. They also cover Maintenance Minder, emergency procedures, child-restraint anchorage, towing, fluid checks and vehicle specifications.

The 2008 Unlinked edition notes that content and specifications could change during the model year and that a later hyperlinked version was planned.

SRS and Transmission Repair Cautions

Cable-reel misalignment can open the wiring and disable the SRS, steering-wheel controls and horn. Transmission cautions address solenoid-connector handling and ATF pump-shaft alignment; incorrect pump-shaft alignment can cause seizure during reassembly.

Airbag, fuel, brake, refrigerant, and raised-vehicle work requires the stated safety procedures, proper equipment, and qualified repair practices.

Valve-Clearance Specification Preview

The cylinder-head section specifies intake valve clearance of 0.20–0.24 mm and exhaust clearance of 0.28–0.32 mm, with cylinder-head temperature below 100°F (38°C). These adjustment specifications appear alongside valve-location illustrations and the related procedure.
