Acura RSX & Type-S 2002–2003 Factory Service Manual (P/N 61S6M01)
1,495 Pages • ZIP Download: Printable PDF • 36.49 MB
Acura Models Covered & Key Technical Specifications
Models & Model Codes: RSX (DC5, K20A3), Acura RSX Type-S (DC5, K20A2)
Sub-models / Variants: 2-door Hatchback, Premium (Canada only, DC5, K20A3)
Model Years: 2002–2006 (2002, 2003, 2004, 2005, 2006)

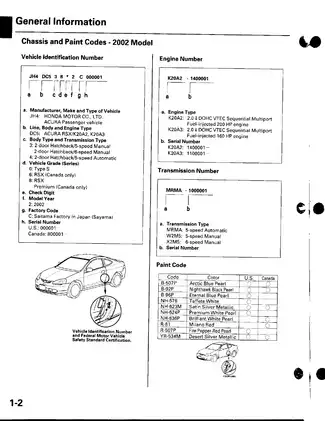

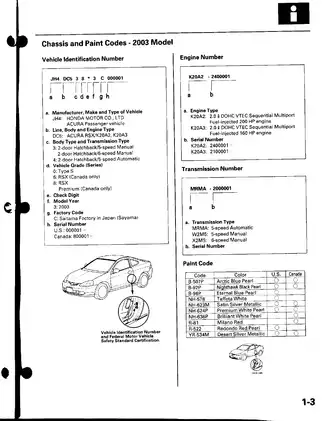

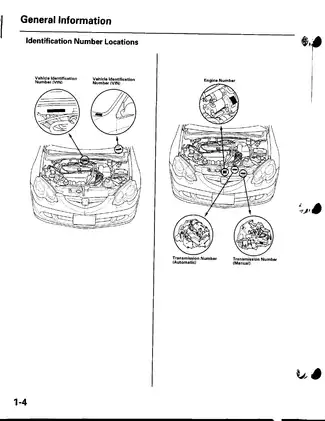

VIN Variant Codes: Position 7 — 3 = 5- or 6-speed manual, 4 = 5-speed automatic. Position 8 — 0 = Type-S, 6 = Canadian RSX, 8 = RSX or Canadian Premium.
Serial Numbers: U.S. 000001–, Canada 800001– (vehicle serial numbers for the 2002 and 2003 models)
Engine Serial Numbers: 2002 — K20A2 1400001–, K20A3 1100001–. 2003 — K20A2 2400001–, K20A3 2100001–.
MRMA Transmission Serial Breaks: 2002 — end cover 1000001–1002922 / 1002923 and later, cooler check valve and spring 1000001–1006166 / 1006167 and later, countershaft 1000001–1021247 / 1021248 and later. The 2003 models use the later configurations from 2000001.
-
Engine displacement: 1,998 cc (2.0L)
-
Engine configuration: Inline 4-cylinder, DOHC VTEC
-
Fuel type: Unleaded gasoline (minimum pump octane of 91 for K20A2 and 86 for K20A3)
-
Compression ratio: 11.0 (K20A2), 9.8 (K20A3)
-
Transmission types: 5-speed Manual (W2M5, K20A3), 6-speed Manual (X2M5, K20A2), 5-speed Automatic (MRMA, K20A3)
-
Drive system: Front-wheel drive
-
Cooling system capacity: 6.4 liters (M/T engine overhaul)
Acura Manual Features & Selected Content Preview
Honda’s factory service manual (P/N 61S6M01, First Edition 09/2002) covers the 2002–2003 Acura RSX and RSX Type-S (DC5) for the U.S. and Canada, including the Canadian Premium. Its 23 sections cover the K20A2 and K20A3 engines and the applicable manual and automatic transaxles.
PDF Search, Wiring Detail, and Page Count
Text search and diagram detail: The PDF is partially searchable. The fuel and emissions and manual transmission chapters are among the sections without searchable text. There are no embedded bookmarks. Zoom in to read small pin numbers and wire color codes in dense wiring diagrams.
The ZIP contains one printable PDF with 1,495 pages and a separate HTML readme. The page count includes one introductory page from another Honda service manual and two duplicate pages in the body electrical section.
Engine Overhaul, Transaxle Service, and Fault Diagnosis
These selected highlights show the kinds of repairs and tests covered. The manual also includes starter performance testing and radiator fan circuit troubleshooting.
- K20 engine: Step-by-step engine removal and installation, cylinder-head and cam-chain service, compression testing, and oil-pump overhaul.
- Cooling and maintenance: Normal and severe service schedules, thermostat testing, water-pump replacement, and coolant service.
- Clutch and transaxles: Clutch hydraulic bleeding and component replacement, internal repairs to both manual gearboxes, and MRMA automatic diagnosis and overhaul.
- Steering, suspension, and brakes: Steering pump and gearbox overhaul, wheel alignment, hub and bearing service, brake hydraulic repairs, and ABS fault tracing.
- Fuel and emissions: PGM-FI fault isolation, EVAP testing, readiness-code checks, and separate intake-manifold procedures for the K20A2 and K20A3.
- Body, climate control, and restraints: Door and glass service, A/C and climate-control diagnosis, body electrical troubleshooting, and SRS fault isolation.
- Workshop references: Exploded assembly views, transmission hydraulic-flow diagrams, torque tables, fluid specifications, wear limits, and electrical test values.
The manual is suited to experienced technicians familiar with factory scan-tool diagnostics and hydraulic pressure testing.
Cylinder Head, Engine Block, and Fuel Management
The cylinder-head procedures cover VTEC rocker-arm testing, VTC actuator inspection, cam timing and auto-tensioner service, rocker-shaft and camshaft inspection, valve-guide replacement, and valve-seat reconditioning. The block and lubrication sections detail piston and crankshaft removal, piston-ring service, rod and main bearing selection, cylinder honing, and oil-pressure testing.
The fuel and emissions section includes dedicated K20A3 IMRC diagnosis and repair, along with Honda PGM Tester procedures for ECM/PCM reset, update, and substitution.
Manual Gearboxes, MRMA Automatic, and Driveline
The W2M5 and X2M5 chapters cover shaft and gear disassembly, bearings, synchronizers, shift forks, oil seals, and differential work. The X2M5 also has reverse-lockout diagnosis. The driveline section covers the driveshafts and intermediate shaft.
For the MRMA, symptom and trouble-code charts are backed by road, stall-speed, and hydraulic pressure tests. Overhaul procedures cover shift solenoids, clutch-pressure controls, valve bodies, clutch clearances, shafts, and the differential. The shift and key interlock circuits have their own troubleshooting coverage.
Separate illustrations and procedures let you match the end cover, cooler check valve and spring, and countershaft to the MRMA serial number before choosing an overhaul procedure. The countershaft locknut has a left-hand thread, and forcing it the conventional way can damage the fastener or shaft. Solvent can strip the grease from the manual clutch release bearing.
Chassis, Body, and Climate Control
Steering procedures include rack-guide adjustment and pump pressure and leak testing. Suspension and brake work covers ball joints, dampers and springs, brake bleeding, discs and calipers, the master cylinder and booster, and parking-brake adjustment.
The body section covers moonroof adjustment, trim and seat removal, and frame repair charts. HVAC coverage includes refrigerant recovery, evacuation and charging, compressor-clutch overhaul, and diagnosis of the blower, evaporator, heater, and climate controls.
Wiring Diagrams, Special Tools, and SRS
Wiring references include the ECM/PCM, PCM A/T control, ABS, climate control, SRS, and reverse-lockout circuit diagrams. Fuse and relay box views, connector and harness indexes, and control-unit locations help identify circuit test points. The SRS chapter documents OPDS initialization after applicable seat or sensor-unit repairs.
Special-tool references include VTEC air adapter 07ZAJ-PNAA101 and its related adapters, power-steering gauge 07406-0010001 with its adapters, bearing separator 07KAF-PS30200, and SRS service connector 07PAZ-0010100.
Follow the factory support, isolation, and handling precautions for engine or transaxle removal, brake hydraulics, A/C refrigerant service, and SRS work.
Cold Valve Clearance Examples
The valve adjustment procedure specifies a cylinder-head temperature below 100°F (38°C). At that temperature, intake clearance is 0.21–0.25 mm for both engines. Exhaust clearance is 0.25–0.29 mm on the K20A2 and 0.28–0.32 mm on the K20A3.
