Dodge Dakota 1994–1996 Factory Service Manual (P/N 81-370-5110)

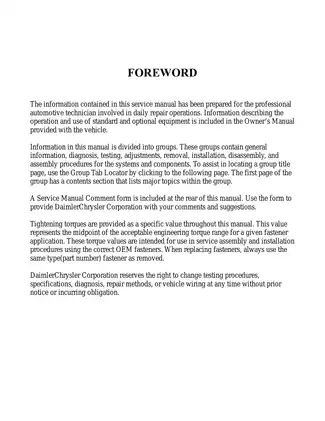

The PDF cover is labeled 1994–1996 Dodge Dakota. Inside is Chrysler’s 1995 AN Dakota factory service manual (P/N 81-370-5110), with procedures for 4x2 and 4x4 trucks in Regular Cab and Club Cab configurations.

PDF Search, Bookmarks, and Wiring Detail

Text search and diagram navigation: The service text and subject index are searchable, and embedded bookmarks open service chapters and subsections. Many wiring labels are outside the text search. Small pin numbers and wire codes are easier to read when enlarged, although some connector-table entries remain faint.

The ZIP contains one printable PDF with 1,432 pages, including the cover, foreword, 36 blank pages, and a 24-page subject index. The total also includes 19 revision-marked pages within the ignition and wiring chapters.

Engine Repair, Drivetrain Overhaul, and Circuit Diagnosis

These are selected highlights from the service manual. Other procedures include cooling-system leak testing and diagnosis of clutch slip, chatter, and incomplete release.

• Engine repair: Engine removal and installation, cylinder-head and valve service, timing-system work, crankshaft and bearing inspection, piston service, and lubrication-system repair.

• Transmissions and transfer case: Step-by-step removal, teardown, inspection, and reassembly for manual and automatic gearboxes, plus overhaul procedures for the automatic overdrive unit and NP231 transfer case.

• Suspension, axles, and steering: Separate procedures for coil-spring and torsion-bar front suspensions, with wheel alignment, CV shaft service, rear suspension repair, differential setup, and steering gear service.

• Brakes and ABS: Disc and drum brake repair, hydraulic testing and bleeding, parking brake service, and separate fault diagnosis for rear-wheel anti-lock (RWAL) and all-wheel ABS.

• Electrical diagnosis: Group 8W wiring diagrams, circuit descriptions, connector pinouts, and open- and short-circuit tests. Separate electrical chapters cover starter current draw and generator output testing.

• Heating and air conditioning: R-134a recovery, evacuation, charging, leak testing, and performance checks, plus compressor replacement, clutch service, and heater/A/C housing removal.

Chrysler wrote this manual for professional automotive technicians performing day-to-day service and repair.

Vehicle Identification and Maintenance

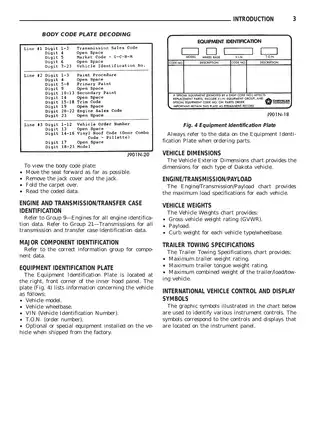

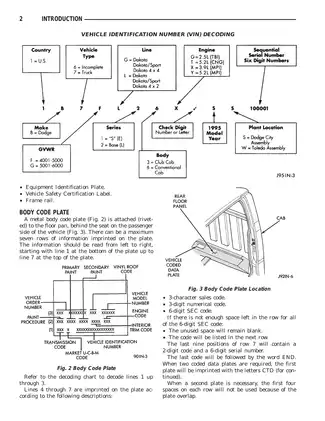

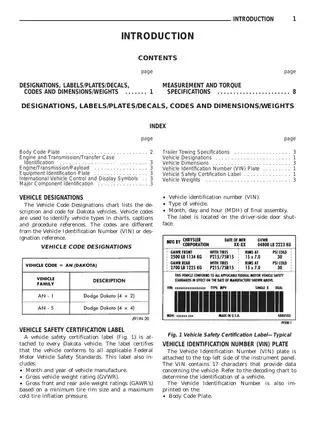

The introduction explains VIN, body-code, equipment-plate, and drivetrain identification and provides exterior dimensions, vehicle weights, payload ratings, and trailer-towing charts. Schedule A and Schedule B cover maintenance by operating conditions. The maintenance group also specifies lubricants and fluid capacities and gives jump-starting, hoisting, and towing procedures for the applicable drivetrains.

Engine Timing and Fuel-System Diagnosis

The 2.5L four-cylinder chapter covers timing-belt, camshaft, and intermediate-shaft timing. The 3.9L Magnum V6 and 5.2L Magnum V8 chapters cover timing chains, hydraulic tappets, cylinder-block inspection, and oil-pump service. Engine specifications include bearing clearances and wear limits.

Fuel-system procedures distinguish single-port injection on the four-cylinder from multi-port injection on the V6 and V8. They cover PCM inputs and outputs, sensor and relay tests, onboard fault codes, and component removal and installation. The CNG engine appears in the VIN chart. The fuel-service procedures cover gasoline injection. The manual refers technicians to the separate Powertrain Diagnostic Procedures publication for full DRB operating instructions and certain fault-isolation routines.

Transmission, Axle, and Steering Service

The manual gearbox chapters distinguish removal and installation on 2WD and 4WD trucks. For the 42RH and 46RH automatics, the clutch-and-band application chart shows which elements are active in each range, helping narrow down a shift complaint before teardown. Hydraulic and air-pressure tests, stall tests, and cooler-flow checks complement the shift linkage, throttle-valve cable, and band adjustments. Overhaul coverage includes the valve body, clutch packs, planetary geartrain, and selective snap-ring and spacer charts.

The NP231 chapter includes linkage adjustment, in-vehicle service, and assembly views for overhaul, with differences between versions with and without synchronizer components. For the automatic overdrive unit, Chrysler warns that unsupported weight can damage the intermediate shaft. If the planetary and overrunning-clutch splines lose alignment, the unit may require disassembly. The manual identifies Alignment Tool 6227-2 for this work.

Axle procedures include pinion depth, bearing preload, backlash, gear-tooth contact patterns, and Trac-Loc differential service. The front-axle section illustrates Gauge Set C-3715-B for the 7-1/4-inch assembly. The axle procedures caution against collapsing the preload spacer too early or loading the differential bearing cage during installation. Propeller-shaft coverage includes vibration diagnosis and U-joint replacement. Steering coverage includes 4WD recirculating-ball gear overhaul and replacement procedures for the 2WD rack-and-pinion assembly.

Brake Faults, Wiring, and Cab Service

The brake chapter explains warning-lamp behavior and uses flash codes for RWAL and the DRB scan tool for all-wheel ABS. Group 8W covers powertrain, transmission controls, ABS, airbag, lighting, trailer tow, HVAC, and power accessories. Ground-distribution diagrams, connector-location views, and splice charts let technicians match a circuit shown on the schematic to its physical wiring.

Body procedures cover doors, glass, window regulators, seats, and interior trim. HVAC component service extends to the evaporator and heater core. The frame and bumper chapter includes snowplow hydraulic and electrical schematics. Vehicle operating instructions are in the separate Owner’s Manual. Follow the chapter-specific precautions for brake, airbag, fuel-system, refrigerant, and under-vehicle work.

Fuel Pressure and NV3500 Gear Ratio Examples

For the gasoline V6 and V8, the fuel-delivery chapter specifies approximately 35–45 psi at idle and a minimum of 24 psi for five minutes after warm shutdown during the leak-down test.

The NV3500 gear-ratio tables identify a 4.01:1 first gear in the original gearset and a 3.49:1 first gear in the close-ratio version. The parts-ordering note identifies the transmission assembly part number as the reference for choosing between the two versions.
