Dodge Dakota 2001 Factory Service Manual (P/N 813701010)

• 2,309-page PDF of the official DaimlerChrysler Corporation 2001 Dodge Dakota Service Manual, covering Regular (Conventional) Cab, Club Cab, and Quad Cab trucks in 4x2 and 4x4 configurations.
• Dedicated engine repair chapters cover the 2.5L I4, 3.9L V6, 4.7L V8, and 5.9L V8, with mechanical diagnosis, engine removal and installation, cylinder-head and valvetrain work, timing service, lubrication, and internal inspection.
• Unit-specific transmission and transfer-case coverage spans the NV1500 and NV3500 manuals; 42RE, 46RE, and 45RFE automatics; and NV233 and NV244 electronic transfer cases, with road and pressure tests, teardown, inspection, reassembly, and adjustment procedures.
• Axle and driveline repair details the C205F front axle, 8 1/4 and 9 1/4 rear axles, Trac-Lok differentials, propeller shafts, half shafts, and CV joints, including differential setup and complete disassembly/assembly work.
• Separate 2WD and 4WD chassis sections address wheel alignment, 4WD ride-height and torsion-bar adjustment, control arms, hub/bearings, ball joints, steering, base brakes, rear-wheel ABS, and all-wheel ABS.
• Included factory electronic procedures cover PCM/SKIM programming, SKIS initialization and transponder-key programming, TCM Quick Learn, and scan-tool-assisted ABS bleeding.
• Circuit-level electrical documentation supplies 8W system diagrams, bus communications, connector pinouts, splice and ground locations, and wire/terminal repair methods.

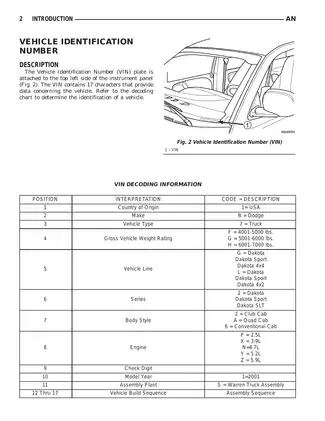

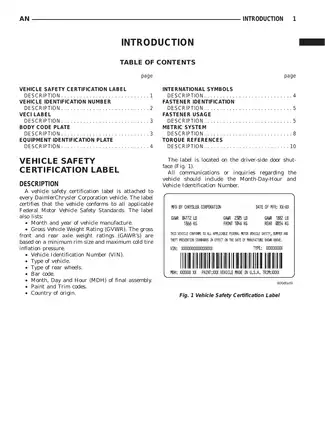

DaimlerChrysler prepared this manual for professional automotive technicians involved in daily repair operations. Its depth suits technicians and experienced mechanics equipped for scan-tool diagnosis, precision measurement, lifting, and driveline setup. VIN and body-code data help match the publication to the truck: body-style code 6 denotes Conventional Cab, 2 Club Cab, and A Quad Cab, while AN1 and AN5 identify Dakota 4x2 and 4x4 lines. This is a service and repair publication; operating instructions for standard and optional equipment are assigned to the vehicle Owner's Manual.

Engine and Transmission Scope

The engine sections move from compression and combustion-leakage testing through complete removal, cylinder-head and valve work, bearing-fit checks, crankshaft and piston service, oil-pump inspection, and timing-system assembly. For 5.2L applications, the manual retains shared clutch, cooling, ignition, and fuel-system material, but it does not provide a separate internal-engine repair chapter.

Group 21 treats each named transmission as its own repair section. The NV233 is an electronically controlled part-time unit with 2WD, 4HI, 4LO, and Neutral ranges; the NV244 combines full-time AWD with part-time 4HI and 4LO and has no 2WD range. Both sections cover TCCM inputs, the mode sensor, selector switch, shift motor, fluid service, and case disassembly and assembly. AX15 and 44RE codes appear in identification or shared-reference material, but neither unit receives a stand-alone overhaul chapter.

4WD Setup, Axles, and Brake Service

The 4WD suspension material places ride-height measurement and torsion-bar adjustment ahead of wheel alignment, followed by caster, camber, and toe procedures. Axle repair goes beyond seal replacement: pinion-depth measurement, bearing preload, backlash, gear-contact evaluation, and Trac-Lok inspection are documented for the applicable units. Brake coverage includes base-brake diagnosis, rear-wheel and all-wheel ABS, HCU service, and the required conventional-plus-scan-tool bleeding process.

Maintenance and Additional Vehicle Systems

Outside the main powertrain and chassis groups, the PDF carries Schedule A and B maintenance, hoisting and towing, cooling, charging and starting, fuel injection, exhaust and EVAP service, HVAC and refrigerant work, restraints, body and glass repair, and new-vehicle preparation. Component-specific torque data, fluid capacities, approved lubricants, wear limits, clearances, adjustment values, and electrical test specifications are placed with the related repair procedures.

Diagrams, Special Tools, and Repair Cautions

Named visual references include the C205F Gear Tooth Contact Patterns chart, 4.7L Timing Drive System, 45RFE Hydraulic Flow in Second Prime Gear, 8W-31 Transmission Control System diagrams, 8W-80 Connector Pinouts, and 8W-90 Connector/Ground Locations. Tool callouts identify the 8350 Timing Chain Wedge, the 8177 Pinion Block with 8541 Arbor Discs and C-3339 dial indicator for C205F setup, and the 8258-A Pressure Tap Adapter for 45RFE testing.

The manual contains wiring-based and component checks, but certain DTC-specific scan-tool test trees and Controller Antilock Brake programming are referred to separate Powertrain, Chassis, or other Diagnostic Procedures manuals outside this PDF.

The 4.7L timing section warns that rotating the camshafts or crankshaft independently with the timing chains removed can cause severe valve or piston damage; the specified wedge also prevents hydraulic-tensioner overextension. The C205F procedures warn that pinion-bearing rotating torque cannot be reduced by loosening the pinion nut: excessive preload can damage the collapsible spacer or bearings and requires a new spacer.

Follow the manual's hoist and support, fuel-pressure, airbag-disable, and refrigerant-handling precautions. The work assumes correct load-rated equipment and standard professional workshop practices.
