Volkswagen Jetta, Golf & GTI Service Manual (1999–2005)
4,954 Pages • ZIP Download: Printable PDF • 94.02 MB
Volkswagen Models Covered & Key Technical Specifications
Models: Golf, Jetta, GTI
Sub-models / Variants: Jetta Wagon, R32, 1.8L Turbo (AWD in the maintenance overview), 1.9L TDI (ALH in service procedures), 1.9L PD Diesel (maintenance and charging-system coverage), 2.0L Gasoline (AEG in the maintenance overview), 2.8L VR6 (BDF repair chapters; AFP in the maintenance overview)
- Model Years:** 1999–2005 (1999, 2000, 2001, 2002, 2003, 2004, 2005)
Manual transmission: 5- and 6-speed 02M, Golf and Jetta applications: 1.8L 132 kW (ERR, FML, FZQ); 2.8L 147 kW (EDJ, FSR, FZR)
Serial breaks: Presta steering column introduced from vehicle identity No. 1J-XB 095 035; the Nacam column is also used. Modified tie-rod ball joints introduced from 1J WW 085 662 (Wolfsburg), 1J WP 050 833 (Mosel), 1JWD039151 (Bratislava), and 1J WB 062 360 (Brussels).
-

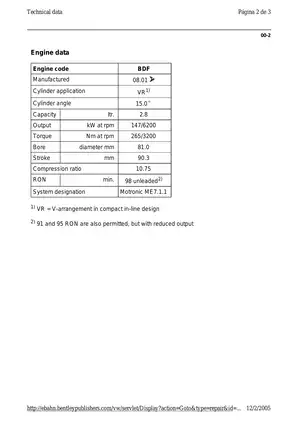

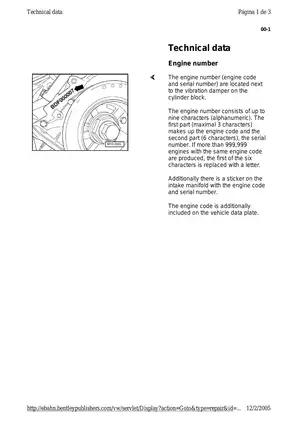

Engine displacement: 2.8 L (BDF)
-
Engine configuration: VR6 (V-arrangement in compact in-line design)
-
Engine cylinder angle: 15.0 degrees
-
Peak power output: 147 kW at 6200 rpm
-
Maximum torque: 265 Nm at 3200 rpm
-
Bore: 81.0 mm
-
Stroke: 90.3 mm
-
Compression ratio: 10.75:1
-
Fuel requirements: 98 RON unleaded for rated output; 91 and 95 RON unleaded are permitted with reduced output
-
Engine control system: Motronic ME7.1.1
Volkswagen Manual Features & Selected Content Preview
This Bentley Publishers eBahn service manual covers Volkswagen Jetta, Golf, and GTI models in the listed 1999–2005 range, with selected Jetta Wagon and R32 procedures. Dedicated engine mechanical, fuel injection, and ignition chapters cover the 2.8L 24-valve BDF VR6. The 1.8L turbo, 1.9L TDI and PD diesel, and 2.0L gasoline engines appear in supporting service material, without dedicated internal-engine repair chapters for those engines.
PDF Search and Download
Text search and bookmarks: Search the service text by component, fault code, or procedure, or use bookmarks to jump between systems and repair groups. The cover is an image. Some pages have text or tables cut off at the right edge.

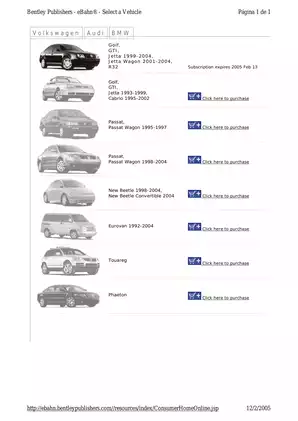

The ZIP download contains one printable English-language PDF with 4,954 pages, including the cover and one introductory vehicle-selection page.

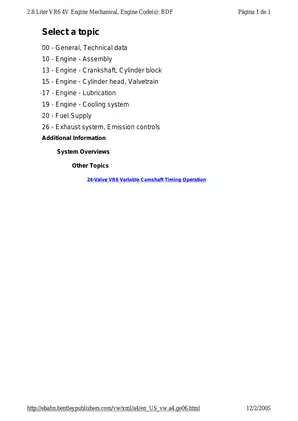

VR6 Engine, 02M Gearbox, and Vehicle Systems
This is a selection of the repair and diagnostic content. The manual also covers cruise control and radio diagnosis.
- BDF VR6 mechanical repair: Engine removal and installation, timing-chain and valvetrain service, crankshaft and connecting-rod work, and cooling, lubrication, fuel supply, and emissions systems.
- Motronic diagnosis: SAE fault-code tables, output tests, readiness procedures, measured-value blocks, and checks for ignition, misfires, oxygen sensors, and variable camshaft timing.
- 02M manual transmission: Hydraulic clutch service, selector adjustment, transmission removal, and overhaul of the shafts, synchronizers, and differential.
- Brakes and running gear: ITT Mark 20 IE and Mark 60 ABS diagnosis, brake bleeding, FWD and AWD suspension, R32 front suspension, and wheel alignment.
- Body and climate systems: Structural panel replacement, restraint and airbag service, manual A/C, Climatronic, and R134a refrigerant circuit diagnosis and repair.
- Electrical service and maintenance: Battery, starter, generator, wiring connector repair, and scheduled work including Haldex service and engine-specific timing-belt procedures.
This manual suits technicians and experienced DIYers who need component tests, assembly procedures, and reference dimensions for the covered systems.
BDF Engine Diagnostics and 02M Overhaul
The BDF mechanical chapters cover workshop mounting, sealing flanges, the dual-mass flywheel or drive plate, valve timing, the variable intake manifold, EVAP, and secondary-air injection. The Motronic chapters include ECM matching and adaptation, knock-control checks, and tests for electronic throttle control.
The 02M repair chapter includes clutch bleeding, gear-oil checks, housing and selector service, shaft adjustment, seal replacement, and differential bearing preload with shim tables. Automatic-transmission material covers related engine-removal and maintenance procedures. For automatic transmission overhaul, use the separate transmission repair information.
Chassis, Collision Repair, and Electrical Diagnosis
The brake chapters separate ABS, EDL, ASR, and ESP checks by system. Running-gear procedures cover drive axles, wheel bearings, the AWD rear subframe and final drive, and hydraulic power steering. The steering section identifies production changes that affect column and tie-rod replacement.
Collision repair includes body dimensions, panel gaps, straightening fixtures, and replacement procedures for pillars, roof sections, wheel housings, and quarter panels. The exterior section includes specific procedures for the Golf GTI 337 Edition, Jetta GLI Sport, and Golf R32.
Electrical diagnosis covers the instrument cluster, gateway, immobilizer, convenience system, central locking, and seat controls. Connector pin assignments and component tests are included. For full current-flow diagrams, the service procedures refer to separate wiring documentation.
Climate Service and Scheduled Maintenance
The HVAC sections cover manual A/C and Climatronic, with refrigerant pressure checks, recovery, component replacement, and troubleshooting. Maintenance covers fluid and filter checks, brake-fluid replacement, automatic-transmission fluid and final-drive checks, and diesel fuel-filter service. The maintenance section includes VW Maintenance Card entries for 1999–2003.
BDF Crankshaft Measurement Preview
The crankshaft section lists a main-bearing journal diameter of 59.958–59.978 mm. It also gives a new radial clearance of 0.02–0.06 mm and a wear limit of 0.10 mm for the Plastigage check.
