E-Z-GO Models Covered & Key Technical Specifications

Models: Golf Cars (GX-440/444, GX-444), Trucks (GXI-300/800, GXT-300/800, GXT-800), Personnel Carriers (PC4GX, PC4GXI, PC4GXJ)

Sub-models / Variants: Freedom (GX-444F), Spirit (GX-444J), Liberty (PC4GXJ), 3-Wheel, 4-Wheel

Trade Names: Freedom, Spirit, Liberty

Model Years: 1989–1993 (1989, 1990, 1991, 1992, 1993)


  • Engine model: EC25-3PG

  • Displacement: 244 cc

  • Bore diameter: 2.8350–2.8357 inches

  • Maximum engine speed: 4000 RPM

  • Spark plug gap: 0.028–0.030 inches

  • Compression ratio: 5.8:1

  • Starter/Generator belt tension: 75–80 lbs (existing), 90–110 lbs (new)

  • Electrical voltage: 12 VDC

  • Drive clutch bolt torque: 55 ft-lbs

E-Z-GO Manual Features & Selected Content Preview

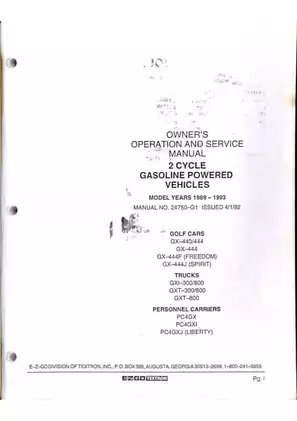

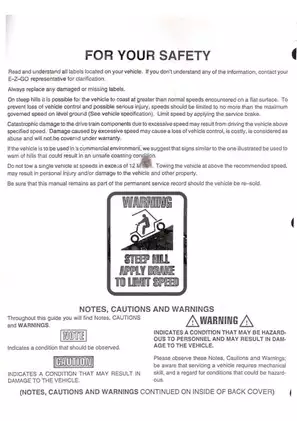

E-Z-GO’s Owner’s Operation and Service Manual (P/N 24750-G1) covers the 1989–1993 2-cycle gasoline-powered golf cars, trucks, and personnel carriers listed above, including Freedom, Spirit, and Liberty models.

PDF Access, Diagram Detail and Page Count

Search, bookmarks and wiring labels: PDF text search is not usable, and there are no embedded bookmarks. Use zoom to read small terminal markings and wire-color labels in the main and accessory wiring diagrams.

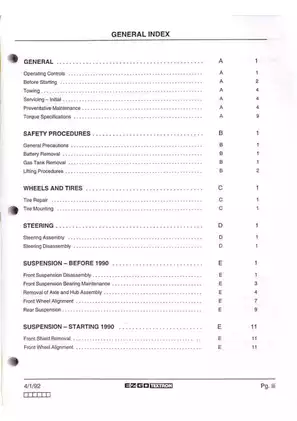

One printable, 223-page PDF contains 10 pages of covers and front matter followed by 213 pages of manual sections. That total includes blank pages, the two-page suspension supplement, and the two-page 1992 Speed Control and Oil Pump supplement.


Engine Overhaul, Chassis Service and Electrical Diagnosis

Selected topics are outlined below. Other covered work includes body-trim removal and paint refinishing.

  • Engine repair: Engine removal, crankcase separation, piston and cylinder inspection, crankshaft bearing and seal replacement, and reassembly.

  • Fuel and speed controls: Carburetor service, float adjustment, accelerator and governor linkage checks, oil-injection pump calibration, and air bleeding.

  • CVT and rear axle: Drive-clutch removal, driven-clutch service, axle-shaft replacement, differential removal, and internal governor and gear service.

  • Steering and suspension: Rack-and-pinion disassembly, front wheel alignment and toe-in adjustment, wheel-bearing service, and front-fork repair.

  • Service and hill brakes: Drum and shoe replacement, self-adjuster inspection, compensating-linkage adjustment, and parking-brake release checks.

  • Electrical troubleshooting: Starting, charging, and Solid State Ignition tests, starter/generator inspection, and wiring diagrams for the different electrical configurations.

The manual specifies trained service personnel; its internal repair procedures assume mechanical skills and access to workshop tools and test equipment.

EC25-3PG Engine and Drivetrain Repair

Step-by-step instructions extend from engine removal through complete teardown and reassembly. The engine chapter explains piston and ring orientation, crankcase pressing operations, and inspection of piston clearance, cylinder wear, and connecting-rod bearings.

Cooling-system coverage includes blower-housing removal and cleaning of the fan and cylinder-head fins. Engine installation guidance also addresses isolation mounts, pulley alignment, and exhaust components.

The CVT section distinguishes drive-clutch removal and installation from minor driven-clutch field repairs, including ramp-button replacement. Rear-axle procedures reach the governor actuator fork, intermediate gears, and input bearings. The differential unit is treated as a complete replacement assembly.

Carburetion, Oil Injection and Plug Fouling

Carburetor coverage explains the float, pilot, main, and choke systems alongside disassembly and adjustment procedures. The Carburetor Jetting Altitude Tables distinguish golf-car applications from the truck and personnel-carrier applications.

Fuel-pump information separates the early crankcase-mounted arrangement from the later remote pump and pulse-line configuration.

The 1992 supplement addresses spark-plug fouling associated with intermittent fleet-golf-car operation. It adds jetting, air-intake, linkage, oil-pump, and spark-plug guidance; the text notes that these measures may not apply to range cars, extended running, or GX-800 applications.

The oil-injection section covers pump installation and priming. It warns that trapped air after disturbance of the oil-injection system can cause serious engine damage.

Steering, Brakes and Maintenance Planning

The suspension supplement identifies changes for 1990-and-later vehicles. Separate brake sections distinguish the 1989 and later arrangements, including shoe, spring, and adjuster layouts. The Front Fork Assembly illustration supports the three-wheel front-end procedures.

The Initial Service Chart and Periodic Service Schedule support routine maintenance planning, while the brake chapters provide six-month inspection procedures and post-service performance checks.

The speed-control section warns that mishandling the governor linkage can bend the arm and damage the governor, potentially requiring complete rear-axle removal and disassembly.

Always verify lifting points and use proper support stands before working beneath the chassis.

Wiring Revisions and Fault Isolation

The electrical sections distinguish 1989/early-1990 wiring from the later-1990 arrangement. Voltage-regulator connection illustrations help identify the applicable system before selecting a diagram or test procedure.

Electrical System Wiring Diagrams and Solid State Ignition System Wiring Diagrams accompany circuit tests. The Ignition Circuit Diagnostic Flow Chart separates no-spark diagnosis from low-power complaints when spark is present.

Starter/generator bench procedures cover brushes, commutator condition, armature insulation, and field coils. Troubleshooting also addresses hard starting, stalling, overheating, vibration, and charging faults. General hardware, engine-assembly, and starter/generator torque references accompany the relevant work.

Examples of Ring-Gap Specifications and Brake-Wear Limits

For EC25-3PG engine inspection, the specification table lists a piston-ring end gap of 0.008–0.016 inch. The overhaul section adds cylinder-wear and piston-clearance inspection guidance.

For both brake designs, the lining inspection specifies replacement of the shoes as a set if either shoe has less than 0.040 inch of lining at any point.
