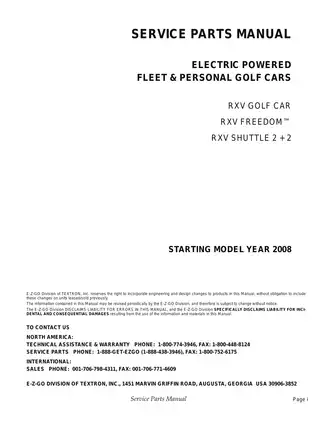

2008 E-Z-GO RXV Electric Golf Carts Service Parts Manual (P/N 607975)

This E-Z-GO RXV Service Parts Manual, P/N 607975, revised September 2008, covers the 2008 RXV Golf Car, RXV Freedom, and RXV Shuttle 2+2 electric models.

Text search and parts navigation: Main text and parts lists are searchable. Embedded bookmarks link to model information and individual parts entries; some illustrated warning decals are not searchable.

• Pedals and brakes: Exploded views and parts lists for the accelerator pedal assembly, brake pedal sensors and switches, and motor brake assembly.

• Electrical components: Main harness, solenoid, run/tow switch, directional key switch, charger receptacle, and accessory lighting with associated replacement-kit contents.

• Drive and speed control: AC motor, electronic speed controller, resistor assembly, and rear axle illustrations paired with part numbers and quantities.

• Steering and suspension: Front strut and wheel-hub assemblies, steering rack, column, A-arms, and rear leaf-spring hardware shown in component breakdowns.

• Body and seating: Body-panel and instrument-panel options, floorboards, front seating, and Shuttle 2+2 rear-seat component breakdowns.

• Charger and battery hardware: Charger cord options, EMI board, battery trays, hold-downs, cable assemblies, and battery-fill-system parts.

This catalog is suited to parts-counter staff and technicians who recognize the vehicle's assemblies and need part-number identification for repair planning.

Parts Identification and Assembly Listings

Numbered component views correspond to tables of part numbers, descriptions, and quantities. Indented entries show assembly membership; an asterisk identifies a component that is not sold separately. This helps identify the orderable assembly for a repair when the illustrated component cannot be purchased on its own.

E-Z-GO requires the model, serial number, and manufacture date code for parts orders. Production revisions can leave a vehicle with a different combination of components from the illustration.

Electrical Components and Battery Variants

Electrical parts data identifies the 48V Delta-Q charger receptacle and separates standard run/tow switch hardware from the keyed CE version. Horn, state-of-charge meter, DC-to-DC converter, headlight, taillight, and turn-signal kits have their own component listings.

Battery system information details hardware for Trojan 12V 140AMP and 175AMP battery setups, including hold-down rods and cable assemblies. The charger section distinguishes cord lengths and lists the cover, handle, EMI board, and strain-relief kit.

The electrical illustrations identify components and cable assemblies; they are not full wiring schematics or electrical troubleshooting charts.

Steering, Axle, and Suspension Parts

The rear axle section documents the 16.99:1 light-duty electric axle, identifying the long driver-side and short passenger-side shafts, hubs, bearings, and seals.

Steering drawings identify rack-cover bellows and the column yoke subassembly. The rear suspension lists standard and heavy-duty tapered leaf springs with their bushings and shackles.

Body Options, Rear Seating, and Weather Protection

Front cowls and rear bodies are separated by color and by the presence of light openings. Instrument-panel trim differs with key-switch, state-of-charge-meter, and light-switch openings, helping match replacement trim to the installed equipment.

Dedicated drawings cover Shuttle 2+2 rear seating, golf-car and 2+2 sun tops, split windshields, and permanent tow-bar hardware. RXV, Freedom, and Shuttle body decals have separate parts listings.

Parts Catalog Scope and Electrical Warnings

Factory repair procedures, diagnostic tests, and tightening torques are outside this catalog's scope. Its introduction identifies a separate Technician's Repair and Service Manual for maintenance and repair work.

The run/tow warning decal reproduced on the controller splash shield addresses electrical arcing, battery explosion, and vehicle damage from unauthorized modification. Consult a certified technician before performing service on this equipment.

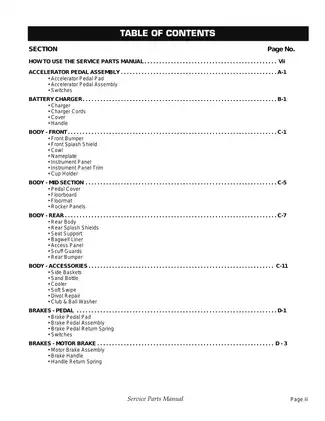

PDF Contents and Page Total

This is a single, printable 84-page PDF. The total includes the front and back covers, two blank pages, and ten notes pages.
