1970–1990 E-Z-GO GX440 / GX444 Gasoline Golf Cart Service Manual

This 1970–1990 E-Z-GO service manual covers GX440 and GX444 gasoline golf carts, including 3-wheel and 4-wheel configurations. It combines operating instructions, maintenance, troubleshooting, and mechanical repair, with February 1978 revisions.

• Engine repair: EC25DS engine removal, cylinder and piston inspection, cylinder-head assembly, crankcase separation, crankshaft bearing replacement, and starter-dynamo service.

• Fuel system: Mikuni BV-18 and BV-24 carburetor disassembly, float adjustment, fuel-system troubleshooting, and main-jet selection charts for altitude and temperature.

• Electrical diagnosis: Starting, ignition, and charging circuit tests, voltage regulator and starter blocking relay checks, points and condenser service, and control wiring diagrams.

• Brakes and rear axles: Dana A-12/D-12 and S-12 service coverage, brake-shoe replacement, hill brake linkage adjustment, axle bearing service, and S-12 differential assembly.

• Steering and suspension: Rack-and-pinion steering repair, front fork disassembly, wheel-bearing replacement, front wheel alignment, and spring, shock absorber, and suspension bushing service.

• Belt drive: Drive-belt service, drive clutch removal and replacement, and driven clutch disassembly, bushing replacement, and ramp-button repair.

The introduction addresses owners performing operation and minor repairs, and mechanics carrying out service work; the internal repair sections require measuring tools, pullers, and press equipment.

EC25DS Engine Inspection and Assembly

The cylinder section explains how piston, bore, and ring measurements determine whether parts can be reused. Crankcase procedures cover bearings and seals; worn connecting-rod bearings require replacement of the complete crankshaft and rod assembly.

The manual identifies flywheel puller A-14709-G1, armature puller A-12579-G1, and clutch puller A-12580-G1. Engine assembly torque requirements accompany the repair procedures.

Incorrect wrist-pin retainer positioning can cause ring-land scuffing and retainer failure. The cylinder assembly illustrations explain this specific risk.

Mikuni Carburetors and Fuel Delivery

Separate BV-18 and BV-24 instructions distinguish their float-setting arrangements, including the BV-18 spring-loaded inlet needle and the caution against bending the float arm. The serial-number assignments help match the installed carburetor to the correct adjustment illustrations before service.

The Main Jet Size vs. Altitude and Temperature charts cover both carburetors. Fuel-pump operation, tank removal, filter inspection, and symptom-based troubleshooting address flooding, lean running, poor acceleration, and low-speed problems.

Starting, Charging, and Ignition Diagnosis

The electrical section separates systems with and without a starter blocking relay. Control Wiring Diagrams, Figs. 1H and 2H, show the corresponding circuits, terminal markings, and wire colors.

A Quick Analysis Guide links starter symptoms to the relevant tests. Separate checks address forward-reverse switch continuity, charging circuit control switches, voltage regulators, and starter-dynamo brushes. These distinctions help narrow down faults such as charging in only one direction.

Timing procedures cover both directions of engine rotation. Armature testing and commutator rework are assigned to a qualified electric motor repair technician.

Fuel and electrical work requires attention to fire hazards, battery isolation, and ventilation, as addressed in the manual’s precautions.

Dana Axles, Brakes, and Clutch Repair

Axle differences: The brake section groups Dana A-12 and D-12 procedures together. It distinguishes their stamped brake drums and integral axle flanges from the S-12 cast hub-drum arrangement. Rear axle coverage includes shaft removal, wheel-bearing replacement, and pinion oil-seal service.

Differential work: The S-12 section extends into carrier disassembly, bearing and shim placement, pinion preload, and hypoid ring gear backlash. The manual specifies an experienced automotive differential repair shop for differential case and drive pinion repairs.

Clutch limits: The driven clutch has documented bushing and ramp-button repair procedures. The drive clutch is designated exchange-only; its coverage is removal and installation, rather than internal rebuilding.

Steering, Suspension, and Routine Service

The chassis sections cover front fork torsion-block replacement on 3-wheel cars and camber, toe-in, and turning-radius adjustment on 4-wheel cars. Leaf spring service, rear coil springs, shock absorbers, and power-frame pivot bushings are also covered.

Control-linkage instructions connect accelerator, choke, and governor adjustments with cutout-switch operation. Excessive actuator-disc travel can damage the cutout switch, a specific caution explained in that section.

The Periodic Service Schedule, Lubrication Chart, and Initial Service Chart organize routine work. Additional procedures cover the optional seat brake, body trim, rear fenders, front cowl, and seat wrap.

A Preview of Engine Clearances and Axle Backlash

These examples are a small selection of the inspection and assembly specifications in the manual.

For the EC25DS engine, the specification table lists piston-to-bore clearance of 0.004–0.007 in. and piston ring end gap of 0.010–0.016 in. The cylinder inspection section explains the related measurements.

For the Dana S-12 axle, the differential assembly section specifies ring gear and pinion backlash of 0.004–0.008 in., checked with a dial indicator.

PDF Reading, Wiring Detail, and Page Breakdown

Text search and diagram viewing: PDF text search and embedded bookmarks are not available. The printed contents pages provide section references. Small terminal markings and wire-color labels in the control wiring diagrams are readable with enlargement; rotating these pages makes viewing easier.

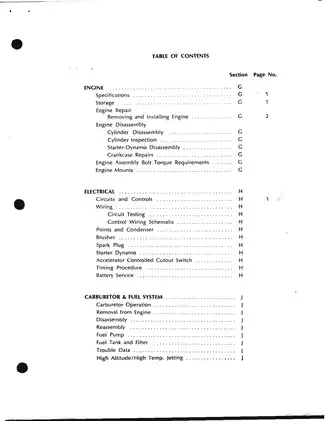

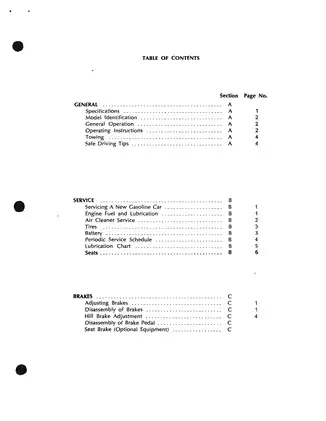

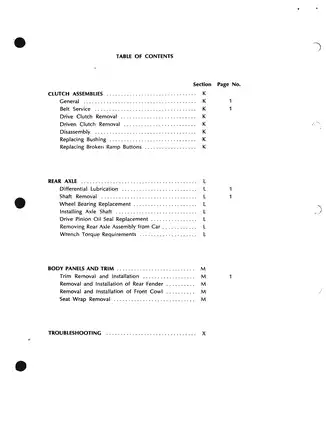

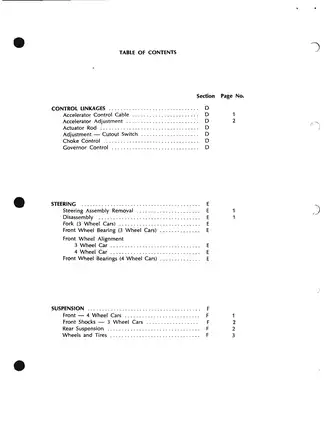

The download contains one printable, 98-page PDF: 93 section-numbered pages plus one introduction page and four contents pages. Those five introductory pages are already included in the total.
