Volkswagen Jetta, Golf, GTI & Cabrio 1993–1999 Service Manual – Partial PDF (P/N LPV 800 116)

This partial PDF reproduction of the Bentley Volkswagen Jetta, Golf, GTI and Cabrio Service Manual (P/N LPV 800 116) covers US and Canadian A3 models listed for 1993–1999. It contains substantial maintenance and repair material, but several chapters listed in the original contents are absent.

Printable PDF: Search, Navigation and Diagram Detail

Text access and legibility: The manual content is not searchable. Two untitled bookmarks both lead to the cover, providing no chapter navigation. Small wiring labels require zooming; some remain degraded, and several tables have cropped text at the page edges.

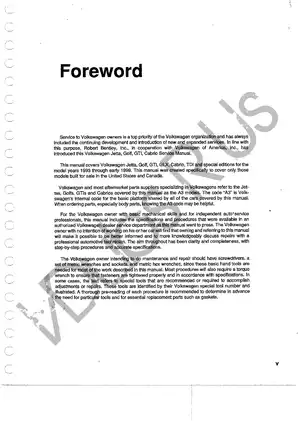

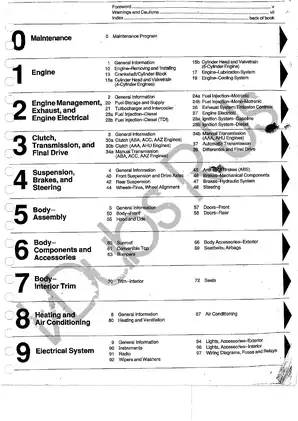

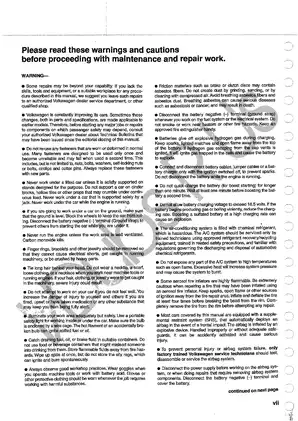

One printable English-language PDF contains 517 pages, including two cover pages, one contents page, two foreword pages, two safety pages, six index pages and one Quick Data page.

VR6 Engine Work, Motronic Testing and Chassis Repair

These selected highlights describe the included material rather than reproduce the full contents. Additional topics include central-locking repairs and factory keyless-remote programming.

• Engine mechanical work: Step-by-step engine/transmission removal, cylinder-block reconditioning, VR6 cylinder-head service, hydraulic cam-follower checks and timing-chain installation.

• Fuel, ignition and emissions: Motronic fault-code interpretation, fuel-pressure testing, sensor and relay checks, gasoline ignition diagnosis, EGR and secondary-air system testing.

• Clutch and driveline: AAA/AHU clutch hydraulics, clutch replacement, 02A shift-cable adjustment, transmission removal and drive-flange seal replacement.

• Suspension, brakes and steering: Base and Plus suspension service, wheel bearings, CV joints, disc/drum brakes, conventional brake bleeding and power-steering repairs.

• Body and cabin: Door and window repairs, sunroof adjustment, interior trim, seats, heater-core replacement and ventilation-control adjustment.

• Electrical systems: Battery, charging and starter checks, fuse/relay identification, connector information and the included wiring-diagram section.

The manual is written for Volkswagen owners with basic mechanical skills and independent service professionals; its engine-reconditioning material specifically assumes experienced technicians and precision measuring equipment.

Engine Service and Missing Repair Groups

The engine sections provide component identification, exploded views and inspection tolerances for planning mechanical repairs. Cylinder-block material distinguishes engine applications and includes piston-ring checks, crankshaft measurements and diesel piston-height data for head-gasket selection.

VR6 coverage includes cylinder-head tightening diagrams, valve-guide inspection and timing-chain alignment using VW tool 3268. The manual warns that tightening camshaft sprocket bolts with the plastic alignment tool installed can damage the tool.

Four-cylinder and diesel limits: The dedicated four-cylinder cylinder-head chapter, turbocharger/intercooler chapter, diesel injection chapters and diesel ignition chapter are absent. This file therefore does not provide the advertised complete TDI timing-belt replacement coverage.

Motronic Diagnosis and Cooling-System Tests

The Motronic electrical-test tables connect individual circuits with test terminals, conditions and expected readings, helping distinguish wiring or power-supply faults from component faults. Blink-code information is accompanied by OBD II component locations and readiness-code procedures requiring suitable diagnostic equipment.

Lubrication and cooling sections add oil-pressure-switch testing, oil-pump inspection, cooling-system troubleshooting and thermostat/fan checks. Engine-performance charts and cooling-system routing illustrations support component identification. The separate Mono-Motronic repair chapter is absent, although system descriptions and applicable wiring remain.

Transmission Service and Brake-System Limits

The included 02A chapter covers removal, installation and selector repairs; it expressly excludes internal transmission teardown. The dedicated 020 transmission, ACC/ABA/AAZ clutch and automatic-transmission chapters are missing.

ATF-change instructions and final-drive seal procedures remain, but the ATF-level instructions refer to the absent automatic-transmission chapter. The 01M’s dipstick-free arrangement and specified VW fluid must not be confused with conventional dipstick-equipped transmission servicing.

Teves 04 and Teves 20 GI ABS/EDL coverage includes system identification, component locations and selected service operations. It excludes in-depth electronic diagnosis and the scan-tool bleeding procedure required when a Teves 20 GI reservoir has emptied. Brake, airbag and spring-loaded suspension work requires the relevant training, precautions and equipment.

Body Repairs, Heating and Wiring Coverage

Heater and ventilation procedures include blower, heater-core and control-cable work. R134a system descriptions are present, but the dedicated air-conditioning repair and Cabrio convertible-top chapters are missing. Airbag coverage addresses removal and installation rather than fault diagnosis.

The wiring material stops at printed page 97-125 and contains the 1993–1994 diagram section; the later diagram sections listed in the contents are absent. Examples include battery/starter/generator circuits, engine-control wiring, ABS circuits, heated mirrors and air conditioning.

Examples of VR6 Valvetrain Inspection Limits

For the AAA engine, the hydraulic cam-follower check specifies a clearance wear limit of 0.1 mm (0.004 in.) with the engine fully warm. This is an inspection limit, not a routine valve-clearance adjustment setting.

The valve-guide inspection specifies maximum play of 1.0 mm (0.039 in.) for intake guides and 1.3 mm (0.051 in.) for exhaust guides, measured using a new valve of the appropriate type.
