Volkswagen Corrado G60, VR6 & SLC Repair Manual Set (1990–1994)
1,060 Pages • Printable PDF • 135.51 MB • Download
Volkswagen Models Covered & Key Technical Specifications
Models: Corrado, Corrado G60, Corrado VR6, Corrado SLC
Sub-models / Variants: G60 (PG; 509014 manual, 509018 automatic), VR6 (Canada) / SLC (USA) (AAA; 5090Q4 manual, 5090Q8 automatic), 2-Door Sport
Model Years: 1990–1994 (1990, 1991, 1992, 1993, 1994)

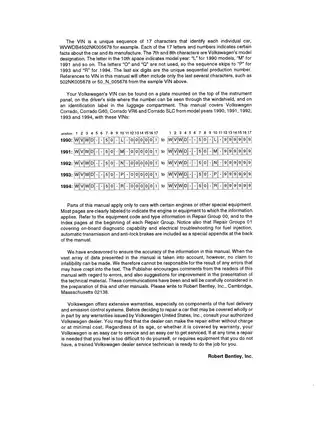

Serial Numbers: Corrado production breakpoints: steering shaft/pinion from VIN 50 N 012 001; door-lock freeplay adjustment from VIN 50 NK 015 279; fuel-flap actuator spacer from VIN 50 MK 002 478.
-
1.8L G-60 Engine: 158 hp @ 5600 rpm, 166 ft. lbs @ 4000 rpm, 4-cylinder in-line, 8.0:1 compression
-
2.8L VR-6 Engine: 178 hp @ 5800 rpm, 6-cylinder V-configuration, 10.0:1 compression
-
Transmission: 02A 5-speed manual (PG: ATA, AYL; AAA: CDM), 096 4-speed automatic (PG: APC; AAA: APB, CFA, CFF)
-
Capacities (4-Cylinder): Fuel 14.5 gal, Coolant 1.7 gal, Engine Oil 4.3 qt (with filter)
-
Capacities (6-Cylinder): Fuel 18 gal, Coolant 9.1 qt, Engine Oil 6.3 qt (with filter)
Volkswagen Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Volkswagen Corrado factory repair manual, 1990–1994 — Corrado, G60, VR6 and SLC; PG and AAA engines; United States and Canada | 962 |
| Repair Manual Supplement, July 1994 — updates for 1993–1994 models | 98 |
The supplement supplies later-production revisions for use alongside the main manual's repair, fuel-injection and diagnostic sections. Coverage is specific to vehicles built for the United States and Canada.
PDF Bookmarks, Diagram Detail and Page Count

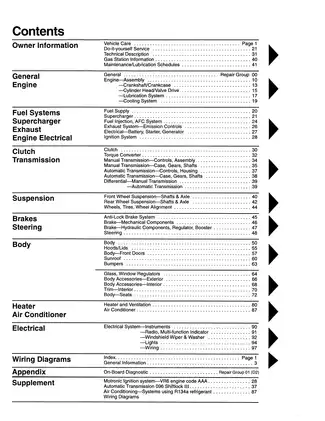

Navigation and small print: Embedded bookmarks organize the repair groups, wiring diagrams, diagnostic appendix and supplement. PDF text search is unavailable. Small connector numbers and wire-color labels in dense wiring diagrams require zooming.
Supplied as one printable, 1,060-page PDF in English. The stated counts include 18 cover/front-matter pages, a 152-page diagnostic appendix, the supplement's divider page, and 25 blank file pages. Many file pages show two printed manual pages side by side.
Engine, Drivetrain and Electrical Repair Coverage
These selected content highlights show the main repair areas. Further topics include maintenance/lubrication schedules and cruise-control vacuum testing.
-
Engine repair: Step-by-step engine/transmission removal and installation, cylinder-head repair, crankshaft and piston inspection, hydraulic-lifter and valve service, lubrication, and cooling.
-
Fuel and boost systems: G60 boost-pressure and intake-leak testing, Digifant fuel/ignition checks, and AAA Motronic fuel-pressure, injector and sensor diagnosis.
-
Transmission service: 02A clutch, shift-linkage, gearbox and differential work; 096 internal clutch/brake assemblies, valve body, ATF pump, final drive, stall-speed and shift-point checks.
-
Suspension and brakes: PG/AAA subframes, control arms, struts, wheel bearings, axle shafts and CV joints; rear-axle work, variant-specific alignment data, TRW/ZF steering and bleeding with or without ABS.
-
Electronic diagnosis: Digifant I, Motronic, 096 transmission and Teves 02 ABS/ABS-EDL fault-code tables, scan-tool functions, measuring-value blocks, electrical tests and basic-setting checks.
-
Body repair: Door-lock adjustment, sunroof alignment, window-regulator service, rear-spoiler removal and installation, and interior trim work.
-
Heating and air conditioning: Heater service, refrigerant-system diagnosis, leak and pressure testing, and separate procedures for R-12 and R-134a systems.
Owners with basic mechanical skills and independent service professionals are the stated audience; major repairs require the specified torque wrench, special tools and diagnostic equipment.
PG and AAA Engine Detail
AAA chain-and-sprocket drawings support drive-chain indexing, valve timing and camshaft work with the 3268 camshaft guide. Further checks address the auxiliary coolant pump, residual fuel pressure, idle control, throttle position and temperature sensors.
The G-Charger component layout and VAG 1687 tests cover the intake air path. Its damage-repair section addresses foreign material in the air-filter housing, intercooler, silencer, hoses and intake, including debris damage to the cylinder head, pistons and cylinder walls.
Engine Management and Transmission Diagnostics
Digifant II on 49-state/Canada PG cars, and California PG cars through 1990, has no readable DTC memory, including with VAG 1551. California PG cars from 1991 use Digifant I on-board diagnosis.
AAA Motronic provides scan-tool and blink-code retrieval, output diagnostic tests, measuring-value blocks and VAG 1598 checks. Digifant/Motronic component layouts accompany the test information. These system distinctions help match the diagnostic chart and wiring diagram to the vehicle before fault tracing or component selection.
02A repair extends to synchronizer inspection, shaft adjustment and differential setup. The 096 selector/clutch/brake engagement chart supports internal transmission work, while its diagnostic appendix supplies an electrical test sequence and basic-setting routine. Reference data includes transmission shim and free-play charts, component torque specifications, capacities, internal-engine tolerances, wear limits and electrical pin/value tables.
Teves ABS and Steering Variants
Hydraulic-modulator views and test charts distinguish Teves 02 ABS with a 35-pin controller from ABS/EDL with a 55-pin controller. ABS uses blink-code output; ABS/EDL changes to rapid data transfer around August 1991, with an indefinite production breakpoint. A replacement controller can also change the available diagnostic mode on an earlier vehicle.
Conventional brake sections include pad/caliper service and parking-brake adjustment. ABS service information addresses the self-pressurizing hydraulic assembly and pressure-relief precautions.
TRW and ZF steering sections cover pressure/leak testing, adjustment and complete gear replacement; internal steering-gear repair is outside their scope. The steering-shaft/pinion production change identifies parts that must be matched.
Wiring and Later-System Updates
Production-specific main and auxiliary diagrams cover the rear spoiler, anti-theft alarm, central locking, power windows, MFA, automatic shoulder belts, automatic transmission, ABS and cruise control. Canada-specific diagrams include daytime running lights, headlight washers, Recaro power seats and seat-belt warnings.
Electrical service also includes battery load testing, starter removal/installation and alternator regulator/brush inspection. The wiring chapter explains how incandescent test lamps can damage electronics and unsuitable probes can deform miniature terminals, causing later intermittent faults; it specifies LED/digital instruments and VW 1594 connector adapters.
The July 1994 supplement covers distributorless AAA ignition from January 1993, Shiftlock III for 1993–1994 automatics, and the new R-134a system for 1993–1994 vehicles. R-12 procedures and specifications do not carry over to that system. Additional main, A/C, radio and CD-changer diagrams are included.
Airbag testing and refrigerant work require trained technicians and the prescribed equipment.
A Preview of PG and AAA Compression Data
PG compression-test data lists 8–12 bar (116–174 psi) for a new engine and a wear limit of 6 bar (87 psi).
For AAA engines, the corresponding figures are 11–13 bar (160–189 psi) and 7.5 bar (109 psi). Both sections specify an engine-oil temperature of at least 30°C (86°F) and a fully open throttle for these comparisons.
