Saab 9-7X 2005–2007 Service & Owner Manual Set (P/N 15863676 A)

The owner manuals cover operation and routine care; the repair and electrical books provide the procedures, diagnostic tables, and circuit references used for workshop work.

Year coverage is not uniform. The broad mechanical, driveline, chassis, body, and diagnostic repair library is for 2007. The 2005 material consists of the owner manual plus electrical component-location, engine-electrical, and wiring information. No separate 2006 service section is included.

PDF Search, Bookmarks, and Diagram Detail

Finding text and circuit details: Text sections are searchable, although many drawing labels, including circuit labels in the separate wiring PDFs, are not. Only the 2007 Owner Manual has embedded bookmarks; the other 76 files have none. Small wiring and system-schematic labels require zooming.

The ZIP contains 77 printable PDFs totaling 8,575 pages. This includes 145 caption-only pages and two opening heading pages in the wiring books, six opening pages in each owner manual, and five further notes pages within those owner manuals.

Engine, Driveline, and Vehicle-System Procedures

These selected content highlights outline the main workshop areas. Cruise-control diagnosis and roof-rack removal are additional examples of the topics covered.

• Engine repair: Step-by-step engine removal, internal disassembly and assembly, cylinder-head and timing-chain work, with compression, leakage, and oil-pressure diagnosis.

• Transmission and transfer case: Automatic-transmission symptom diagnosis, line-pressure checks, cooler flushing and flow tests, plus NVG 126-NP4 teardown, inspection, and assembly.

• Axles and driveshafts: Front and rear differential repair, pinion-depth and bearing-preload adjustments, backlash and gear-contact checks, and shaft service.

• Brakes and chassis: ABS automated bleeding, hydraulic and disc brakes, steering service, suspension repair, air-spring sensor calibration, and tire-pressure sensor learn.

• Electrical and engine controls: Wiring diagrams, connector views, starting and charging diagnosis, scan-tool data, DTC testing, fuel-system work, and module setup references.

• Climate control: Automatic-HVAC diagnosis, refrigerant recovery and recharging, component replacement, and actuator recalibration.

• Restraints and body systems: Post-collision SIR inspections, passenger-presence rezeroing, and repair information for doors, windows, seats, lighting, and related body equipment.

The diagnostic and overhaul sections suit technicians familiar with automotive electrical testing, scan-tool operation, and the specialist equipment specified for the work.

Engine Mechanical and Fuel-System Work

The dedicated LL8 and LH6 chapters cover crankshaft and piston inspection, valvetrain work, oil-pump repair, and assembly specifications. Mechanical tests and engine-control data support fault isolation and repair planning before major disassembly. For the LH6, dedicated Active Fuel Management procedures test cylinder deactivation, valve lifters, and the valve lifter oil manifold.

Fuel and control sections cover injector, rail, and tank repair, fuel-pressure testing, throttle-body service, MAF/MAP/ECT sensor procedures, heated oxygen-sensor replacement, and EVAP diagnosis. PCM/ECM connector views, scan-tool output controls, and crankshaft-position variation learn connect component work with the required checks and setup.

The LL8 spark-plug procedure warns that removal from a hot engine can seize the plug threads and damage the cylinder head.

Transmission Diagnosis and Driveline Rebuilding

The 4L60-E/4L65-E/4L70-E book addresses shift complaints, torque-converter clutch behavior, leaks, vibration, and cooler flow. It is diagnostic material rather than a full internal transmission overhaul manual.

The transfer-case book follows the NVG 126-NP4 through removal and internal rebuilding, with seal-installation references including J 42738. Front-axle procedures distinguish 7.25-inch S4WD/A4WD assemblies; rear-axle procedures cover 8.0/8.6-inch units. Tool references include J 45224 for front differential bearing adjustment and J 8614-01 for pinion service.

The rear differential instructions flag excessive pinion rotating preload as a condition requiring disassembly and another new collapsible spacer.

Brake, Steering, and Suspension Details

Master-cylinder bench bleeding and park-brake adjustment supplement the brake-system diagnostics. Steering coverage extends to power-steering testing and bleeding, column repair, and steering-wheel position sensor centering. Front and rear suspension sections include component replacement and inspection data.

HVAC, Restraints, and Body Equipment

HVAC coverage separates refrigeration-system service from automatic control diagnosis and actuator setup. Restraint material addresses inspections after a collision and the passenger-presence system's setup requirements.

Body files cover trim, door access, windows, lighting, wipers, seat hardware and controls, audio/navigation, theft deterrence, and remote functions. These sections combine component procedures with the relevant circuit descriptions and diagnostic checks.

Electrical Locations, Schematics, and Module Setup

The 2005 and 2007 wiring books contain 74 and 71 named circuit diagrams, respectively. Coverage spans engine performance, computer data lines, power distribution, starting and charging, ABS, electronic suspension, SIR, HVAC, and body controls.

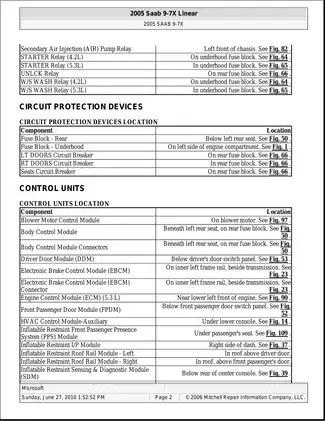

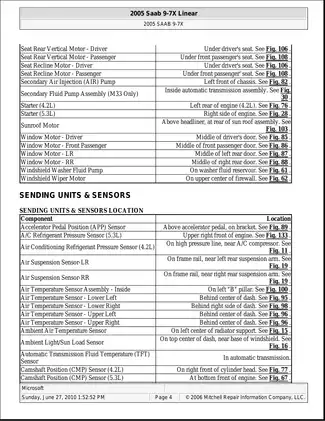

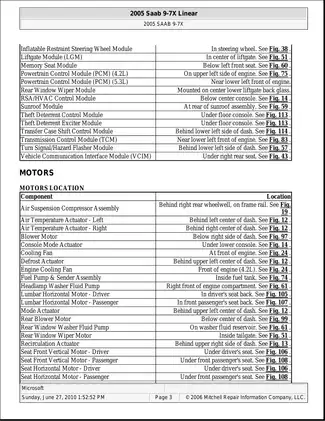

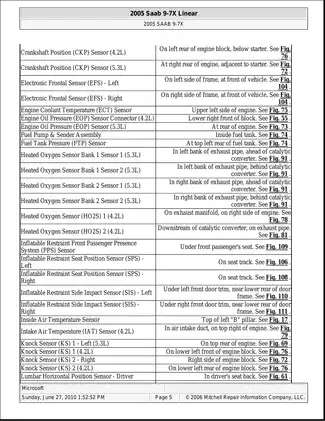

Their component locators contain 134 and 138 numbered graphics across 11 location groups, with PCM/ECM/TCM positions, connector references, grounds, and harness splices. Specific 2005 references include C101 beside the underhood fuse block, G106 on the left front shock tower, and S100 near the ECM harness breakout toward C107. These locations connect circuit references with the physical harness during fault tracing.

Representative drawings include the 4.2L Timing Chain Alignment Diagram, 4.2L and 5.3L Engine Performance Circuits, the Front Drive Axle (7.25 in Axle) (A4WD) disassembled view, Transfer Case Control Schematics, and Wheel Speed Sensors & Yaw Rate/Lateral Acceleration Sensor Schematics.

Programming references address BCM, PCM/ECM, EBCM, HVAC, SDM, passenger-presence, instrument-cluster, liftgate, memory-seat, radio, sunroof, and TCM replacement. Technical tables supply fastener torques, fluid capacities, approved lubricants and sealers, electrical test values, wear limits, and calibration data.

The cooling-fan diagnostic section warns that probing its sealed clutch connector without the specified jumper leads can damage the connector or wiring.

Follow the specific safety precautions for SIR, starting and charging, brake, and refrigerant work. Electrical testing may call for live circuits and scan-tool commands, while component removal may require battery isolation; the test setup depends on the procedure.

Front-Axle Setup Data: Selected Examples

For the front differential, the specifications list preferred gear backlash of 0.13–0.18 mm (0.005–0.007 in). The bearing setup data distinguish pinion-only rotating preload with new bearings, 1.7–3.4 N·m (15–30 lb-in), from used bearings, 1.1–2.3 N·m (10–20 lb-in). These entries accompany the front-axle inspection and adjustment procedures.
