1985-1998 Saab 9000 Service Manual
Includes 1985-1998 Saab 9000 4-cylinder models with 1985 cc and 2290 cc engines. Publication C4085-91017.
Manual Preview

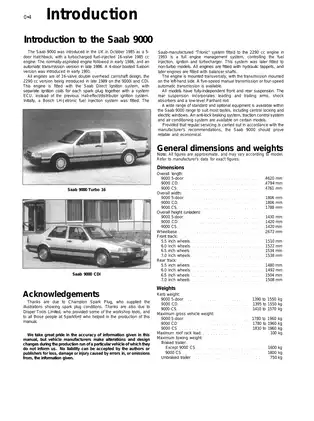

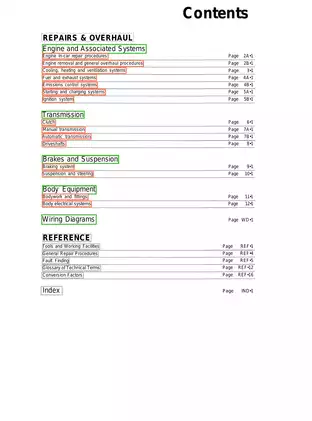

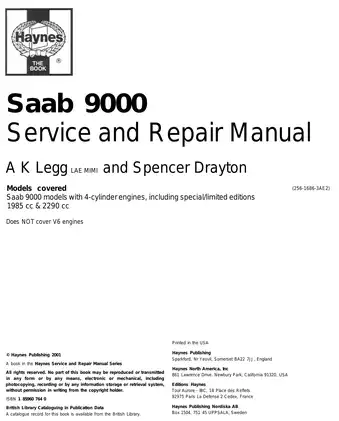

Sample pages from the 1985-1998 Saab 9000 Service Manual manual
Purchase & Download
Saab Models Covered & Key Technical Specifications
Models: Saab 9000
Sub-models / Variants: 5-door Hatchback, 4-door Saloon, 9000i, 9000 CD, 9000 CDi, 9000 CS, Turbo 16, Trionic engine management models, LH-Jetronic fuel injection models, Limited editions
Build Years: 1985–1998
Technical Data:
- Engine types: 1985 cc, 2290 cc (4-cylinder, 16-valve, DOHC)
- Transmission types: 5-speed manual, 4-speed automatic
- Cooling system capacity: 9.0 liters
- Engine oil capacity: 4.2–5.5 liters depending on engine variant
- Fuel tank capacity: 62–68 liters depending on model year
- Idle speed: 850 ± 50 rpm (AIC controlled) or 850 ± 75 rpm
Saab Manual Features & Content Preview
Saab 9000 Service and Repair Manual 1985–1998
- Covers 1985–1998 Saab 9000 models, including 9000i, 9000 CD, and 9000 CS, with 1985 cc and 2290 cc 4-cylinder engines
- Official Haynes publication P/N 256-1686-3AE2, first published 2001
- Contains 47 exploded-view diagrams, 16 wiring schematics, and extensive torque specification tables for all major mechanical components
- OCR text layer lets you jump to a torque spec by keyword
- Laid out for standard letter and A4 printing
- This 1985–1998 Saab 9000 edition remains the reference for the 4-cylinder DOHC build, providing specific tuning data for both Bosch LH-Jetronic and Trionic management systems
Document Scope and Coverage
This publication documents the technical service requirements for the 1985–1998 Saab 9000 with 4-cylinder powerplants. The manual is divided into logical blocks, beginning with living with the vehicle and roadside assistance procedures, followed by a detailed maintenance schedule spanning from weekly checks to major 96,000-mile service intervals. Technical chapters document the removal, inspection, and installation of engine systems, including the cylinder head, fuel and exhaust components, manual and automatic transmissions, braking systems, and electrical architecture.
Specification Highlights
Technical data provided includes detailed capacity tables for engine oil, coolant, transmission fluid, and fuel systems, alongside component-specific clearances. Torque settings for cylinder head bolts, big-end bearings, and spark plugs are clearly tabulated for workshop use. Electrical reference values are supplied for various sensors, including the Trionic engine management temperature sensor and LH-Jetronic idle air control valve resistance parameters. Dimensional data for bore sizes and valve clearances is included for rebuild reference. An official 256-page Haynes OEM manual covering the 1985–1998 Saab 9000, documenting engine, chassis, electrical, and fuel-injection specifications for the B202, B204, and B234 series builds.
