2006–2007 Saab 9-3 Basic Engine 4-Cylinder Petrol Service Manual (OEM)

• Covers 2006–2007 Saab 9-3 9440-series models equipped with the 4-cylinder gasoline engine.
• Documents the full powertrain-removal scope, including the cooling system, front subframe, steering assembly, exhaust connections, electrical harnesses, and final engine separation.
• Details cylinder-head and head-gasket repair, camshaft sprocket positioning, chain-tensioner service, ignition-coil cover removal, and factory fastening procedures.
• Explains balancer-shaft chain setup through color-coded link positions, sprocket indexing marks, and dedicated timing-alignment illustrations.

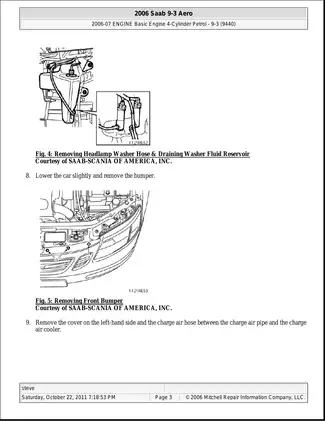

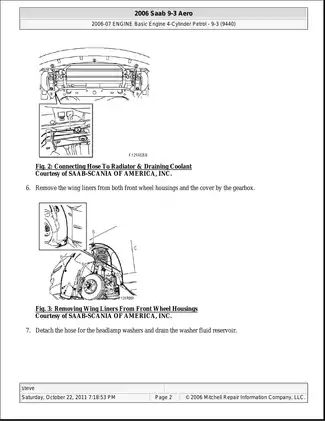

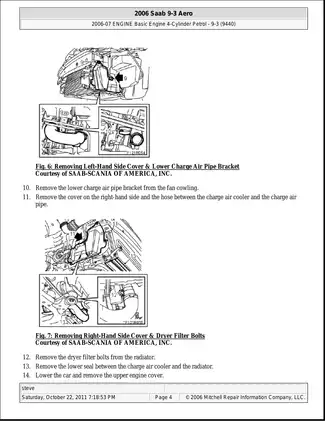

• Contains 178 technical figures and exploded views covering component locations, assembly relationships, and critical installation alignments.
• Provides component-specific torque data, angle-tightening procedures, service specifications, and Saab special-tool references, including 83 96 152 and 83 96 095.

This factory PDF was originally provided by Saab-Scania of America, Inc. for major engine service on the four-cylinder Saab 9-3. Its coverage goes well beyond routine maintenance. The material is built around repair work that requires the powertrain, cylinder head, timing components, or related support assemblies to be removed and correctly aligned during reassembly.

Powertrain Removal Coverage

The powertrain section maps out the complete removal job at the system level. It identifies the cooling-system connections, front-subframe attachments, steering components, exhaust joints, wiring-harness routing, and other interfaces that must be accounted for before the engine can be separated from the vehicle.

The illustrations make it easier to see where components are located and how the surrounding assemblies relate to one another. This is especially useful when planning a repair involving the subframe and steering system, where several mechanical and electrical connections are handled within the same work area.

Saab tool 83 96 152, identified as the engine-centering kit, is included in the tooling references for alignment work. Accessory-drive service is supported by tool 83 96 095, the belt-circuit relieving tool. These references help technicians determine which factory fixtures and tension-relief tools are called for before starting the job.

Cylinder Head and Timing Components

Cylinder-head coverage includes head removal and disassembly, gasket service, camshaft sprocket positioning, chain-tensioner work, ignition-coil cover handling, wiring-harness placement, and exhaust-side connections. Fastener information is tied to the individual operations rather than presented as a stand-alone list.

The head-fastening procedure uses a controlled multi-stage sequence followed by angular tightening. Related specifications are also provided for the front subframe, oil-filter cover, and other components disturbed during major engine repair.

Particular attention is given to timing alignment. The camshaft sprockets, chain tensioner, and associated indexing positions are shown in dedicated figures so the installed relationship can be checked against the factory layout.

The balancer-shaft chain section is one of the most useful parts of the publication. It identifies the required color-coded chain links and their relationship to the intake- and exhaust-side sprockets. The diagrams provide a visual reference for checking shaft position before the timing area is closed.

Timing marks that appear close by eye can still be indexed incorrectly. An error in the colored-link or sprocket relationship can leave the balancer shafts out of phase even though the chain appears seated normally. The tensioning components also need to be handled in the specified condition; uncontrolled release or incorrect loading can disturb alignment or damage parts within the chain drive.

Technical Figures and Service Data

The 178 figures include exploded assembly layouts, component-location drawings, timing references, chain-indexing illustrations, and installation-alignment views. They support the written procedures by showing how parts fit together and where alignment points are located.

Factory specifications cover the major fasteners and assemblies involved in the documented work. The service data includes torque tables, angular-tightening requirements, component installation specifications, and specialized tooling information. Rather than overwhelming the reader with unrelated measurements, the values are placed alongside the repair operations where they are needed.

Powertrain and subframe removal involves suspended, heavy assemblies. Properly rated lifting and support equipment should be used before any mount, steering, or subframe connection is released. Timing and belt-drive components can also remain under stored tension, making the specified relief tools and factory handling procedures an important part of the job.
