Toyota Camry 1992–1996 Repair Manual Set (P/N RM361U1, RM361U2)

14,815 Pages • ZIP Download: 90 Printable PDFs • 400.37 MB

4.6starstarstarstarstar_half(5)
$18.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Toyota Models Covered & Key Technical Specifications

Model & Model Codes: Camry (SXV10, MCV10)

Sub-models / Variants: Manual Transmission (5S-FE: S51), Automatic Transmission (5S-FE: A140E; 1MZ-FE: A541E)

Model Years: 1992–1996 (1992, 1993, 1994, 1995, 1996)


  • Pedal height from asphalt sheet: 160.8–170.8 mm (6.33–6.72 in.)

  • Pedal freeplay: 5.0–15.0 mm (0.197–0.591 in.)

  • Push rod play at pedal top: 1.0–5.0 mm (0.039–0.197 in.)

  • Clutch release point distance: 25 mm (0.98 in.) or more

  • Disc rivet head depth (minimum): 0.3 mm (0.012 in.)

  • Disc runout (maximum): 0.8 mm (0.031 in.)

  • Flywheel runout (maximum): 0.1 mm (0.004 in.)

  • Master cylinder installation nut torque: 7.8 N–m (80 kgf–cm, 58 in.-lbf)

  • Release cylinder installation nut torque: 13 N–m (130 kgf–cm, 9 ft-lbf)

  • Clutch line union torque: 15 N–m (155 kgf–cm, 11 ft-lbf)

  • Flywheel set bolt torque: 88 N–m (900 kgf–cm, 65 ft-lbf)

Toyota Manual Features & Selected Content Preview

Publication Pages
1994 Camry Repair Manual section files — companion Volumes 1/2, P/N RM361U1 / RM361U2; SXV10 and MCV10 series 2,716
1994 Camry Electrical Wiring Diagram — SXV10 and MCV10 series 307
Toyota Wire Harness Repair Manual — P/N RM1022E 414
Camry 1992–96 illustrated parts reference 23
1991 Lexus ES250 engine and A540E repair sections 501
1991 Lexus ES250 electrical wiring manual 161
ES300 repair-section compilation — archive labeled 1993 1,941
A540E overhaul manual — 1993 ES300 application 140
1993 ES300 electrical wiring manual 240
Lexus New Car Features extract — 1993 archive 9
1993 Dealer Model Reference 1
1993 U.S.A. Maintenance Schedule 3
Lexus maintenance booklet extract 41
Lexus service-campaign compilation — 1993 archive 75
Lexus technical-service bulletins — 1993 archive 259
Lexus Technical Training compilation — archive labeled 1993 1,969
1997 ES300 Repair Manual section files — P/N RM511U 2,092
A541E overhaul reference — 1997 ES300 archive 139
1997 ES300 electrical wiring reference 281
1997 ES300 New Car Features 114
Lexus service-campaign compilation — 1997 archive 70
Lexus technical-service bulletins — 1997 archive 273
Duplicate Camry PDFs inside CamryRepairManual.rar 3,046

Use the Camry repair chapters for factory procedures and the wiring manual for circuit diagnosis. The Toyota-wide connector reference supplies the housing, terminal and repair-wire information needed after the electrical fault has been isolated.

Application limits: The Camry factory repair procedures and wiring diagrams are specific to 1994; the illustrated parts reference carries the 1992–96 designation. The separate Lexus publications retain their own applications and do not extend Camry repair coverage.

PDF Search, Bookmarks and File Contents

Search and diagram detail: The repair, wiring, harness and training material supports text search and contains embedded bookmarks, although some tables and diagram text fall outside the searchable layer. Small wiring labels require zooming. The illustrated parts reference has neither text search nor bookmarks; the separate Lexus maintenance booklet also has no bookmarks.

The ZIP contains 90 printable PDFs totaling 14,815 pages, including forewords, section title pages and supplemental documents. This comprises 70 distinct PDF files with 11,769 pages plus 20 byte-identical Camry copies with 3,046 pages inside the additional RAR archive.


Camry Engine, Drivetrain and Electrical Coverage

These are selected contents, rather than a complete table of contents. Other topics include wiper and washer testing and combination-meter inspection.

  • Engine and maintenance: Step-by-step timing-belt and cylinder-head procedures, engine removal, cylinder-block service, fuel-injection and emissions diagnosis, cooling, lubrication, starting, charging and ignition.

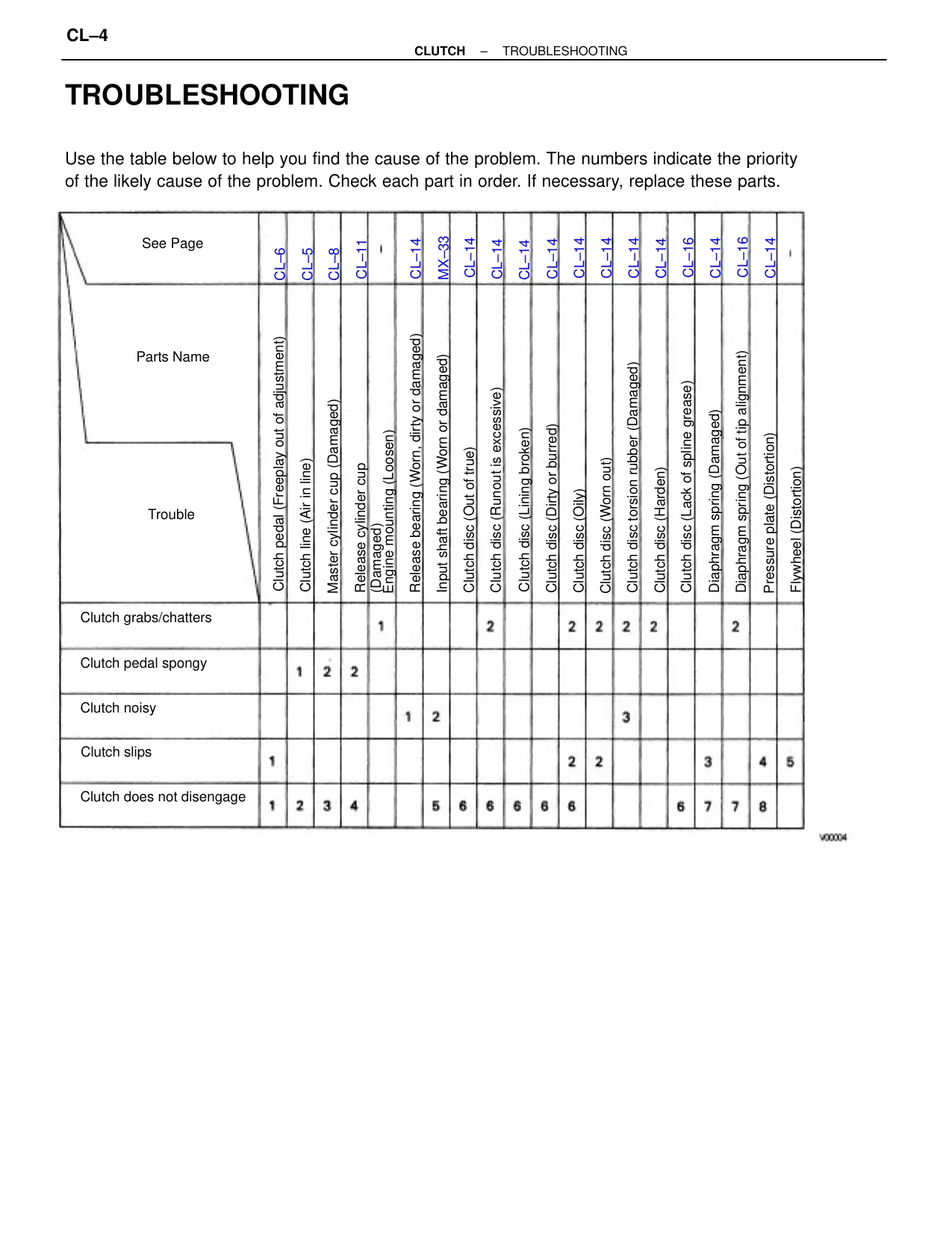

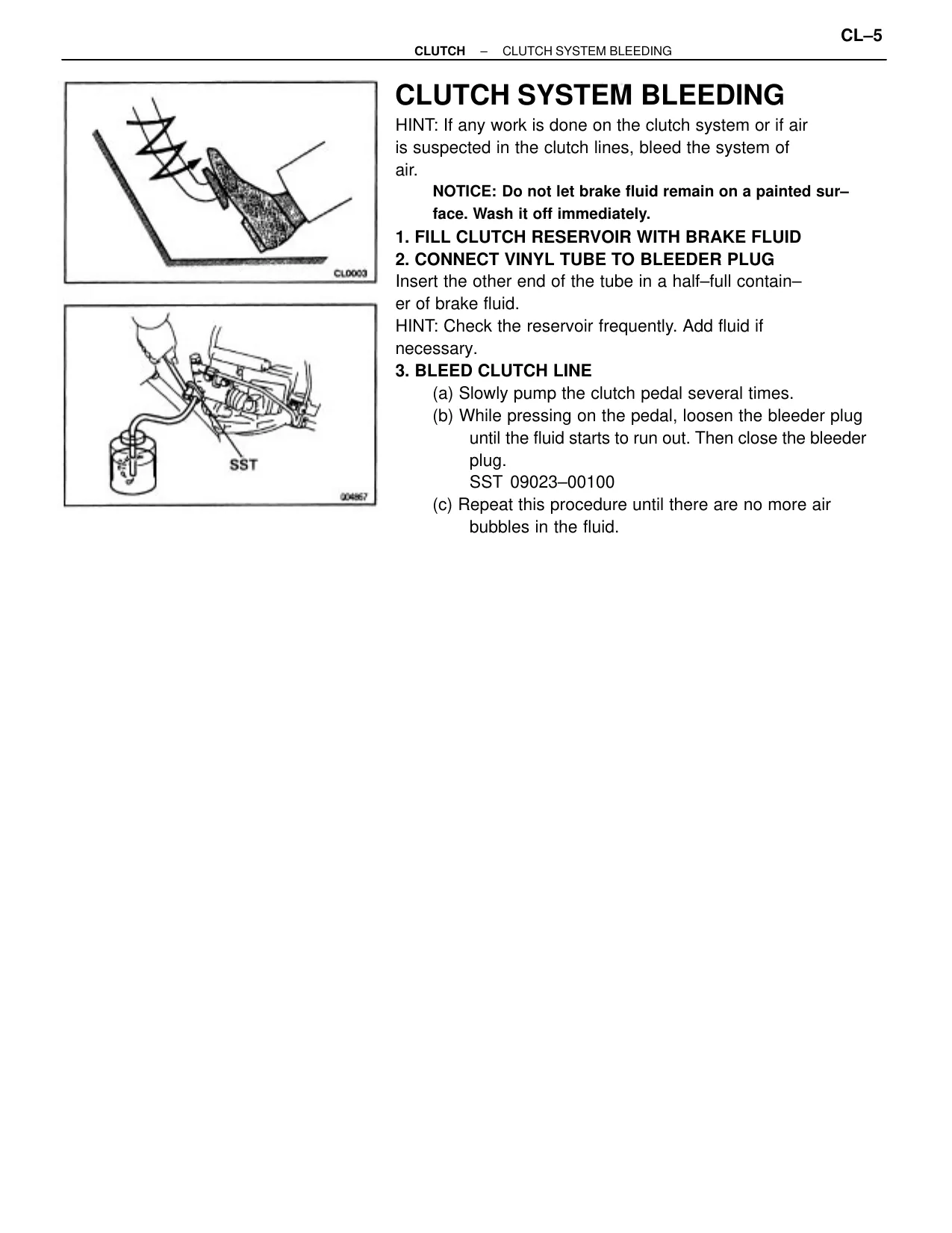

  • Transaxle and clutch: A140E/A541E on-vehicle and valve-body repair, S51 internal service, hydraulic bleeding, pedal adjustment and clutch-unit inspection.

  • Brakes and running gear: Single- and two-piston front calipers, rear drum and disc brakes, parking brakes, ABS diagnosis, wheel alignment, drive shafts and power steering.

  • Body and equipment: Door, glass, molding, sliding-roof, seat and restraint service, plus tests for lighting, windows, locks, mirrors, audio and cruise control.

  • A/C and SRS: R134a component removal, inspection, reassembly and testing, together with dual-airbag troubleshooting, connector checks and factory precautions.

  • Wiring and connectors: Relay locations, harness routing, power-source current-flow charts, system schematics, connector and ground locations, terminal repairs and hardware indexes.

The factory procedures are suited to experienced technicians with the specified Toyota SSTs, electrical test equipment and workshop measuring tools.

Engine Repair and Diagnostic References

Mechanical work: Cylinder-head coverage extends through disassembly, inspection and reassembly. Cylinder-block chapters include crankshaft and bearing inspection, while the fuel-system sections distinguish MFI/SFI procedures and component tests.

Fault diagnosis: DTC charts, fail-safe information, symptom matrices, ECM terminal reference values and connector views support circuit inspections and final confirmation checks. The 1MZ-FE material also covers its electronically controlled hydraulic cooling fan.

Transaxle Internals and Clutch Service

S51 repair: Internal procedures cover input and output shafts, synchronizers, shift and select mechanisms, and differential service. Bearing and seal installation, preload checks and control-cable adjustment are included.

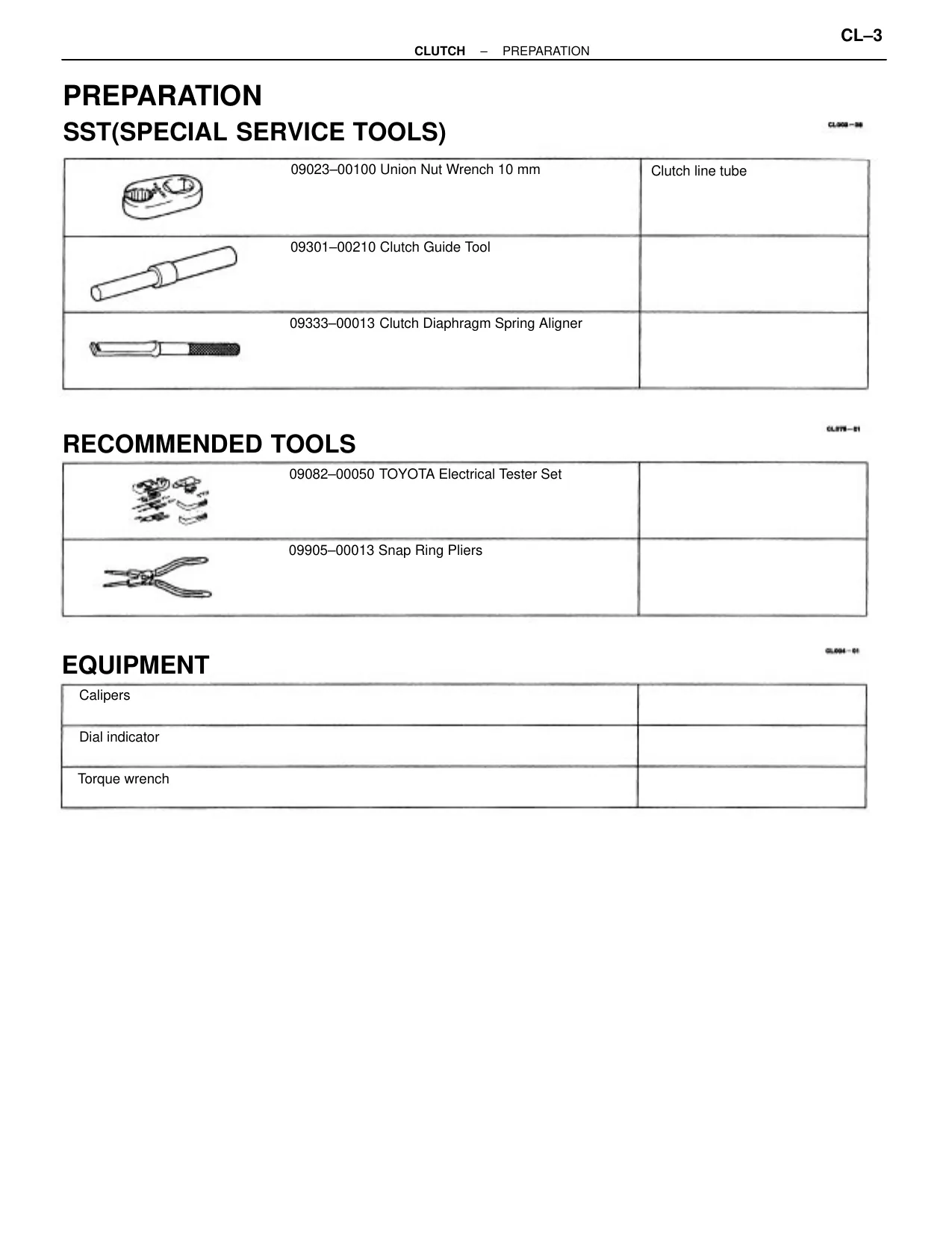

Clutch components: The chapter documents master- and release-cylinder overhaul, release-bearing service, clutch-cover installation and diaphragm-spring alignment. Tool references include clutch guide 09301-00210 and diaphragm spring aligner 09333-00013.

Automatic-overhaul scope: The Camry AX1/AX2 chapters cover operation, on-vehicle service, assembly removal and installation, shift-lock checks, electronic diagnosis and confirmation testing. They refer internal overhaul work to separate A140E/A541E unit manuals. The Lexus supplements include A540E and A541E overhaul references with their own applications.

Brake Variants, Steering and Body Repairs

Brake procedures include master-cylinder and booster service, proportioning-valve and load-sensing proportioning-valve work. ABS diagnosis distinguishes TMC-built NIPPONDENSO systems from TMM-built BOSCH systems.

Suspension and drive-shaft procedures distinguish engine applications where necessary. Power-steering material covers pump and gear-housing repairs; body sections add glass, molding, door, seat and seat-belt service.

Section-specific reference data includes torque tables, clearances, wear and runout limits, adjustment specifications and electrical test values.

Circuit Tracing and Connector Hardware

The Camry wiring book connects system circuits with junction-block internals, harness connectors, splice points, grounds and power distribution. Routing views distinguish sedan, coupe and wagon bodies where applicable.

Variant-specific diagrams: Examples include Engine Control for the 1MZ-FE, separate 5S-FE A/T/California M/T and non-California M/T layouts, Electronically Controlled Transmission and A/T Indicator, TMC/TMM ABS, SRS, and push-control or lever-control air conditioning.

Connector catalog: The harness reference includes waterproof and non-waterproof housings, 12 pages of housing cross sections, 239 pages of housing shapes and 64 pages of housing part-number indexes. Its repair-wire tables identify terminal packing, hole plugs and press sleeves.

Circuit inspection, fuse and circuit-breaker checks, terminal replacement and special connector handling are covered. Tool and material references include terminal-release SST 09991-00500, AMP crimping tool 169060 and silicon tape 08231-00045. This Toyota-wide reference complements the Camry wiring diagrams; it does not replace vehicle-specific pinout information.

A/C Compatibility and SRS Handling

R12 refrigerant, seals and service equipment are incompatible with the covered R134a system; mixing refrigerants can damage A/C components. Incorrect spiral-cable indexing can break the cable, and airbag orientation matters during handling.

Follow the manual’s battery-isolation, refrigerant, brake-safety and vehicle lift-and-support precautions.

Examples of Engine-Specific Valve-Clearance Data

5S-FE: Cold valve-clearance specifications are 0.19–0.29 mm for intake valves and 0.28–0.38 mm for exhaust valves. The tune-up section connects these measurements with replacement-shim selection.

1MZ-FE: The corresponding cold specifications are 0.15–0.25 mm for intake valves and 0.25–0.35 mm for exhaust valves. Its adjustment material provides the engine-specific shim-selection calculations and tables.
