Toyota Venza 2009–2010 Repair & Wiring Manual Set

6,713 Pages • ZIP Download: 8 Printable PDFs • 261.79 MB

4.5starstarstarstarstar_half(2)
$18.93 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Toyota Models Covered & Key Technical Specifications

Model & Model Codes: Venza (AGV 10 series, AGV 15 series, GGV 10 series, GGV 15 series)

Model Years: 2009–2010

Engine variants: 1AR-FE, 2GR-FE

Automatic transaxle variants: U660E, U760E (unit repair procedures); U660F, U760F (service specifications and references)

AWD transfer: MF1A


  • Body reinforcement steel: 340 MPa, 440 MPa, 590 MPa, and 980 MPa grades documented

  • Plug weld hole diameters: Over 5 mm (under 1.0 mm thickness), over 6.5 mm (1.0–1.6 mm thickness), over 8 mm (1.7–2.3 mm thickness), and over 10 mm (over 2.4 mm thickness)

  • Camber (2WD): 0°36' +/-45' (front), -1°10' +/-45' (rear), as listed in the Collision Repair Manual for an unloaded vehicle

  • Camber (AWD): -0°37' +/-45' (front), -0°55' +/-45' (rear), as listed in the Collision Repair Manual for an unloaded vehicle

  • Toe-in (front): C + D: 0°05' +/-12' (total)

  • Torque (front bumper): 3.6 Nm (retainers), 34 Nm (reinforcement)

  • Torque (instrument panel): 11 Nm (front No. 2 speaker assemblies), 8.8 Nm (steering pad mounting screws)

  • Front seat bolt torque: 37 Nm

Toyota Manual Features & Selected Content Preview

Publication Pages
Venza Repair Manual — 2010 service sections for AGV10/15 and GGV10/15 series, including 1AR-FE and 2GR-FE engines 5,044
Venza Electrical Wiring Diagrams — engine-specific circuits and vehicle electrical systems 479
Venza Collision Repair Manual — AGV10/15 and GGV10/15 series 162
Owner’s manual and navigation compilation — includes the 2009 Venza Owner’s Manual, P/N OM73004U 882

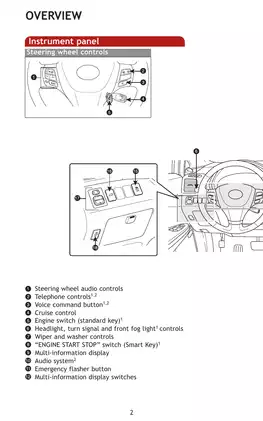

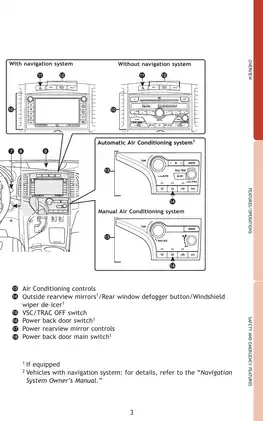

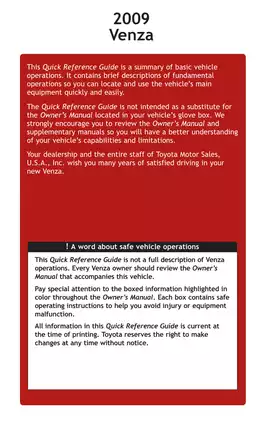

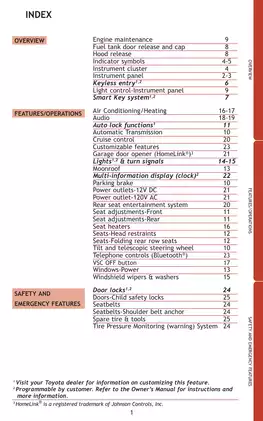

2009 Venza Quick Reference Guide — MN 00505-QRG09-VEN 28
Audio/Video System — separate operating-manual excerpt 78
Destination Search — separate navigation-manual excerpt 26
Navigation Appendix — separate operating-manual excerpt 14

The repair procedures, electrical circuits, and body-repair drawings support different stages of diagnosis and repair planning. The owner and navigation documents explain vehicle operation; the three separate operating-manual excerpts repeat material included in the compilation.

The main repair file contains 2010 service sections marked “From: 200911.” Its detailed transaxle overhaul chapters are labeled U660E and U760E; U660F and U760F also appear in specifications and cross-references. The collision manual covers welded-panel replacement from white-body condition and excludes paint refinishing.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: All eight PDFs contain searchable text, but some illustration labels in the Repair Manual cannot be searched. Embedded bookmarks navigate the repair, collision, wiring, and owner/navigation compilation files; the four shorter PDFs have none. Some INFO cross-references in the Repair Manual are inactive, and small wiring labels require zooming for comfortable reading.

The ZIP contains eight printable PDFs totaling 6,713 pages. This total includes 18 directory-index pages in the owner/navigation compilation and two blank pages in the collision manual, along with the documents’ existing introductory and supplementary pages.


Engine, Drivetrain and Collision-Repair Coverage

These selected coverage highlights summarize the main workshop content. Other included topics range from garage-door-opener transmitter registration to rearview-mirror compass calibration.

  • Engine internals: Step-by-step procedures for engine removal, camshaft and timing-chain work, cylinder-head repair, and cylinder-block inspection and reassembly.

  • Automatic transaxles: U660E and U760E removal, disassembly, internal inspection, reassembly, valve-body service, and temperature-controlled fluid-level adjustment.

  • AWD drivetrain: MF1A transfer disassembly and adjustment, rear differential overhaul, propeller-shaft inspection, and front and rear drive-shaft service.

  • Brakes, steering and suspension: Caliper and master-cylinder work, brake bleeding, EPS fault diagnosis, wheel-alignment adjustment, and suspension-component replacement.

  • Electrical diagnosis: Engine-specific wiring diagrams, connector views, ground-point layouts, diagnostic charts, and Techstream data-list and active-test information.

  • Collision structure: Approved panel cut-and-join locations, weld-point maps, door-skin hemming, adhesive-assisted quarter-panel replacement, and body-dimension drawings.

  • Cabin and body equipment: Air-conditioning component service, glass and door mechanisms, power-seat systems, seat belts, and SRS component inspection and replacement.

Toyota’s service instructions are intended for technicians with specialized training and certifications; structural repairs also require an appropriately equipped collision-repair shop.

Mechanical Repair and Fault Diagnosis

Separate engine sections distinguish the four-cylinder and V6 procedures rather than treating both engines as interchangeable. Cylinder-head and block inspections include warpage, bore, bearing, piston, and valve-related measurements, while cooling, lubrication, fuel-system, starting, and charging sections address supporting systems.

The transmission chapters explain how internal wear is assessed through end-play measurements, clutch inspection, oil-pump checks, and differential clearances. A specific installation warning concerns torque-converter seating: attaching the transaxle with the converter insufficiently engaged can damage the converter.

EPS troubleshooting combines fault-code charts, circuit checks, Techstream readings, and calibration requirements. Together with the separate circuit diagrams, this lets a technician relate a symptom to the relevant wiring and component tests before selecting a replacement part.

Structural Steel and Panel Replacement

Toyota’s Structural Outline identifies high-strength-steel areas across the upper body, pillars, rocker structure, and floor. The manual prohibits heat repair of body-frame parts, including crush boxes, because heat reduces steel strength and damages the protective zinc coating. Kinked frame parts, door side-impact beams, and bumper reinforcements are identified as replacement items.

Panel procedures cover radiator supports, the front crossmember, fender aprons, front side members, and cowl structure. Further sections address body pillars, rockers, quarter panels, wheel housings, roof panels, and rear floor members, using assembly replacement and CUT/CUT-P repair methods.

The quarter-panel instructions specify 3M Automix Panel Bonding Adhesive #8115. They explain that overheating can warp the panel and that residual old adhesive weakens the new bond.

Body Measurements, Fit and Corrosion Protection

Two- and three-dimensional drawings support structural alignment checks before welding. Named groups include Engine Compartment, Body Opening Areas, Under Body, Front Frame, and Rear Suspension Member; tracking-gauge calibration, datum heights, reference holes, and symmetrical measurements are explained alongside them.

Separate 2WD/AWD rear-suspension layouts and sliding-roof/no-sliding-roof procedures distinguish relevant configurations. Toyota also notes that body construction can vary with specification and destination market.

Exploded layouts cover bumpers, instrument-panel components, interior trim, seat-belt anchorages, and seats. Outer Panel Installation Torque and Fit Standard/Adjustment Method/Torque Specification sections add hood, door, back-door, and striker adjustments, including Toyota SST 09812-00010 for door-hinge positioning.

Application maps identify body sealer, undercoating, foamed sealing material, cavity wax, silencer sheets, and anti-chipping paint. Flat-finish and non-flat-finish seams, roof options, and drivetrain differences are distinguished to support restoration of water, noise, and corrosion protection.

Post-Repair Requirements and Precautions

The collision manual abbreviates equipment removal and reinstallation around white-body repairs and refers mechanical procedures to Toyota repair information. Its work lists flag ECM/transaxle learning, TPMS registration, EPS calibration, occupant-classification checks, and power-window, sliding-roof, and headlight-leveling initialization requirements, with Techstream identified where needed.

Front fenders are bolt-on parts and require no welding. Frame pulls, electric welding around SRS components, and work near the fuel tank require the vehicle-protection and isolation practices identified in the manuals.

A Preview of Transaxle Inspection Clearances

For internal transaxle inspection, the Repair Manual lists input-shaft end play of 0.012–1.250 mm for the U660E and 0.020–1.242 mm for the U760E. These separate ranges show why the transmission designation matters when assessing internal measurements.

The U760E differential inspection specifies standard side-gear backlash of 0.05–0.20 mm and lists thrust-washer thicknesses for clearance selection. These are examples of the component-level inspection and adjustment data included in the overhaul sections.
