Kobelco Models Covered & Key Technical Specifications

Model: SK60 Mark III

Sub-models / Variants: Rubber Crawler, Export, Southeast Asia, North Europe, Kai, Europe, Extreme Heat

Model Years: 1992–1998 (1992, 1993, 1994, 1995, 1996, 1997, 1998)

Serial Numbers: LE14101–LE17595

Serial Breaks: Swing motor assembly from LE15265, main hydraulic pump from LE15755, gauge cluster from LE15865, rubber crawler belts from LE16961 (Rubber Crawler)


  • Oil pan bolt quantity (SEMS, VI050040-6160): 30 per unit (ITC A, catalog note: 90.3~)

  • Tube sizes for nuts and sleeves (metric): 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 18 mm, 22 mm, 28 mm, 32 mm, 35 mm, 38 mm

  • Upper frame assembly: 24100J14505F1

  • Engine assemblies: Standard (2451U340F1), Cold Regions (2451U340F2, OPT3), North Europe (2451U340F3, OPT3)

Kobelco Manual Features & Selected Content Preview

This illustrated parts catalog covers the 1992–1998 Kobelco SK60 Mark III excavator, serial numbers LE14101–LE17595. The drawings and parts tables help identify replacement parts and match assemblies to the machine before ordering.

Printable PDF and Figure Index

Text search and drawing detail — Search figure headings, part numbers, and parts tables. Callouts inside the drawings are image-based. Five bookmarks open the catalog and its introductory sections. Many connector pin numbers become legible when enlarged, but some small connector labels and wire codes remain faint.

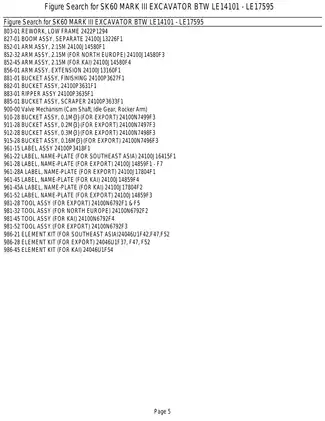

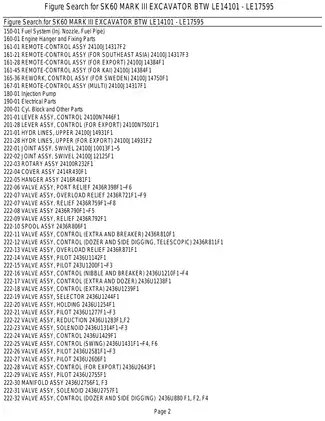

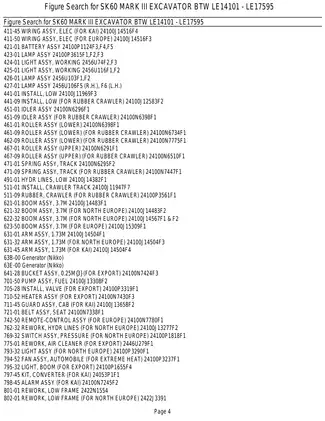

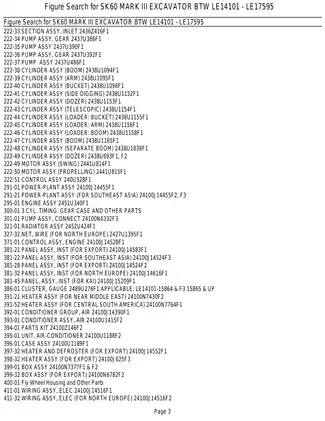

The download is one printable English-language PDF, with some drawings labeled in English and Japanese. The 545 pages include 535 catalog pages, a five-page figure index, a one-page figure-search guide, two hardware-conversion pages, one additional front-matter page, and one final blank page.


Engine, Hydraulics, and Crawler Parts

This selection of catalog entries covers major assemblies. The catalog also lists battery assemblies and regional filter kits.

  • Engine and fuel: Engine, lubrication, and cooling parts, plus Diesel Kiki injection pump, mechanical governor, feed pump, and nozzle-holder breakdowns.
  • Hydraulic components: Main and gear pumps, swivel joints, and pilot and control valves, including assembly variants and repair-kit contents.
  • Cylinders and drives: Exploded or sectional drawings for boom, arm, and bucket cylinders, swing motors, and travel motors, with seals and internal parts.
  • Electrical assemblies: Wiring harness drawings with connector details, instrument panels, Hitachi starter parts, and Nikko generator variants.
  • Undercarriage: Separate steel-track and rubber-crawler listings for idlers, upper and lower rollers, and track tensioners.
  • Cab and attachments: Cab installation and trim, heating and air conditioning, plus boom, arm, bucket, and ripper assemblies.

The catalog is suited to mechanics and parts staff who use exploded views, assembly numbers, and serial-number notes to plan repairs and order parts.

Assembly Numbers and Serial Breaks

Drawing callouts match parts-table entries with quantities, applicability notes, and kit contents. Regional listings distinguish Export, Southeast Asia, North Europe, Europe, Kai, and Extreme Heat parts where equipment differs, including cabs, controls, wiring, guards, and fans.

Pump and swing assemblies — Figure 301-01 lists main pump 2437U390F1 through LE15754 and 2437U486F1 from LE15755. The upper-frame parts table lists swing motor assembly 24100J11943F1 through LE15264 and 24100J11943F2 from LE15265.

Hydraulic Lines and Cylinder Seal Kits

Upper hydraulic lines — Figures 221-01 and 221-28 identify tubing, hoses, and control valves, with separate standard and Export listings. Figure 222-01 distinguishes the bodies and stems used in the F1–F5 swivel-joint assemblies.

Boom cylinder — Figure 222-38 locates O-rings, backup rings, wipers, and piston seals. Its parts table lists separate rod-side and piston-side seal kits as well as a combined kit, so you can check what each kit includes before ordering.

Engine, Injection, and Electrical Parts

Engine and fuel injection — Parts breakdowns cover the cylinder head and block, crankshaft, pistons, valve mechanism, oil pump, and cooling system. The lists give cylinder-head bolt quantities and Diesel Kiki injection-pump and nozzle-holder shim thicknesses for parts selection. Pump calibration requires service instructions.

Starting, charging, and instruments — The Hitachi starter and Nikko generator drawings identify internal components. Figure 411-01 and its regional counterparts show harness layouts and connector details for parts identification. The instrument tables identify the gauge-cluster change at LE15865. Use the corresponding service literature for circuit testing.

Tracks, Cab, and Working Attachments

Crawler parts — Steel-track and rubber-crawler listings distinguish idlers, rollers, and track springs. Figure 511-09 shows the revised rubber crawler belts from LE16961.

Cab and attachments — Cab listings identify door locks, glazing, wipers, trim, and separate heater and air-conditioning parts. Attachment drawings include a separate-boom option, an extension arm, finishing and scraper buckets, and a ripper.

Hardware References and Repair Scope

The metric and inch hardware tables compare screw diameters and lengths. The substitution notes exclude tapped holes and mixed metric and inch threads.

The exploded and sectional views support parts identification and ordering. Use the corresponding service manual for removal, reassembly, troubleshooting, overhaul, and safety procedures for hydraulic systems and heavy attachments.

Selected Attachment Sizes and Generator Ratings

The attachment listings distinguish a 3.7 m boom and 1.73 m and 2.15 m arms. The Export listing for the 0.25 m³ bucket identifies its cutting edge, tooth assemblies, and side cutters.

The Nikko generator tables list a 24 V, 20 A version and a 24 V, 40 A cold-district version. The separate breakdowns let you match brushes, bearings, and other components to the generator fitted to the machine.
