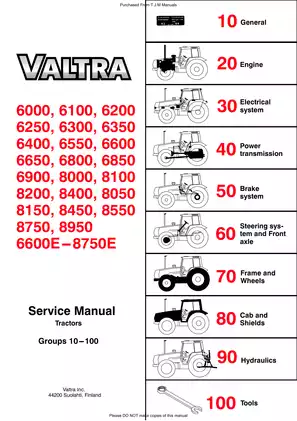

Valtra Valmet Mega, Mezzo & Hi-Tec Tractor Workshop Manual, 1990–2002 (P/N 39 210 211)

1,361 Pages • 1 Printable PDF (English) • Download

4.3starstarstarstarstar_border(3)
$21.90 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Valtra Models Covered & Key Technical Specifications

Models: Valmet 6000, 6100, 6200, 6250, 6300, 6350, 6400, 6550, 6600, 6650, 6800, 6850, 6900, 8000, 8100, 8200, 8400, 8050, 8150, 8450, 8550, 8750, 8950, 6600E, 6600E–8750E, 6250H, 6850Hi, 8000R, 8050Hi, 8150Hi, 8200E, 8350Hi, 8400E, 8450Hi, 8550Hi, 8750E, 8950Hi

Sub-models / Variants: Mega, Mezzo, Hi-Tec, HiTrol, SigmaPower. The engine tables also identify 6250Hi, 6350Hi, 6550Hi, 6650Hi, 6750Hi, 6800E, 8100E, 8150E, 8450E, and 8550E. The Autocontrol III parameter table identifies the 6600E HiTrol as 6600EH.

Model Years: 1990–2002 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002)

Engine Codes: 6000 (420 D), 6100 (320 DS), 6200, 6250Hi and 6350Hi (420 DSRE), 6300 (420 DS or 420 DSRE), 6400 (420 DS, 420 DW or 420 DWRE), 6550Hi and 6650Hi (420 DWRE), 6600 and 6600E (420 DS), 6750Hi (420 DWRIE), 6800 (420 DWI or 420 DWRIE), 6800E (420 DWI), 6850Hi (420 DWRIE), 6900 (620 DRE), 8000, 8100 and 8100E (620 D), 8050 and 8150 (620 DSR or 620 DSRE), 8050Hi and 8150Hi (620 DSRE), 8150E (620 DSR), 8200 and 8200E (634 D), 8350Hi (620 DSRIE), 8400 (620 DS or 620 DSIE), 8400E (620 DS), 8450 (620 DWR or 620 DWRE), 8450E (620 DWR), 8450Hi (620 DWRE), 8550 (634 DSR or 634 DSRE), 8550E (634 DSR), 8550Hi (634 DSRE), 8750 and 8750E (634 DS), 8950Hi (634 DSBIE).

Transmission Variants:

  • 300: 6000–6400 through K41105 and 8000 through H12332. Gearbox markings A, B, C, D, J, K, L, M.

  • 390: 6900 through K36111 and 8000 from H12333 through K36111. Gearbox markings AA, BA, CA, DA.

  • 450: 6600–6800 through G01400 and 8100–8400 through 668102. Gearbox markings E, F, G, H, I, N.

  • 460: 8200 and 8400 from 668103, and 8050 and 8150 through F32103. Gearbox markings P, O, S, R.

  • 550: 6200–6550Hi from J12242 and 6200–6400 from K41106. Gearbox markings KA and LA (550 Hi), MA, NA, OA and PA (550).

  • 650: 8450–8750, 8050 and 8150 from F32104, 6600 and 6800 from G01401, and 6250Hi–8950Hi from K36108 as listed in the gearbox section. The 8350Hi–8950Hi range uses the 650 through L32105. Gearbox markings T, U, V and Y (650), EA, FA, GA, HA, IA and JA (650 Hi).

  • 700: 8350Hi–8950Hi from L32106. Gearbox markings RA, SA, TA, UA, VA, YA.

  • 420GL (Autocontrol III configurations): 6600E and 6600EH at 40 km/h, and 8100E at 30 or 40 km/h.

Serial Numbers:

  • Engine and fuel specifications by tractor serial: 6200 through K41123 and from K41124 (Stanadyne pump versions). 6300 from K41309 through L23437 (420 DS) and from L23438 (420 DSRE). 6400 from J17109 (420 DW), Delta from K41106 (420 DW), and from L23506 (420 DWRE). 6800 from L23517 (420 DWRIE). 8050 through L23317 (620 DSR) and from L23318 (620 DSRE). 8150 through L24138 (620 DSR) and from L24139 (620 DSRE). 8400 through K34331 (103 kW 620 DS), K32135–L33320 (110 kW 620 DS), and from L23130 (118 kW 620 DSIE). 8450 through L24134 (620 DWR) and from L24135 (620 DWRE). 8550 through L24115 (634 DSR) and from L24116 (634 DSRE). 8750 through J32215 in the 634 DS specification table.

  • Engine production changes: 620/634 camshaft bearing bushings from engine no. C2751. Oil pump changes from engine nos. C1474 (320), C1328 (420), and C1133 (620). Valve-cover support strips from engine no. C6828. Revised six-cylinder oil pump from engine no. J7034. Oil-pressure relief valve versions from engine nos. J7595 (6000–8150, without piston cooling nozzles) and J14016 (8400–8950, with piston cooling nozzles). Intercooler change from engine no. F2685. 8950 injection pump change from engine no. J18597.

  • Six-cylinder exhaust manifold hardware: Revised studs and nuts from tractor serial F12761. Revised manifold from H01722 for 6900 and 8000–8200, and from H01169 for 8400 and 8050–8750.

  • HiTrol couplings, 6000–8000: Voith 390 TD-VA through 658205, Transfluid from 658206 through 666065, and Voith TD-FVA1 from 666066. Clutch release changes to cable operation from 659478 and to hydraulic operation from 668103 in the clutch section.

  • Main wiring diagram groups: Through 660070 (6100–8400, with separate E-model diagrams), 660071–662342, 662343–668102, and from 668103 (6000–8400 chapter coverage). HiTech AC 5 diagrams cover J38343–K41106, AC 5.2 starts at K41107, and later HiTech wiring is indexed from L18105.


  • Compression ratio: 16,5:1

  • Idling oil pressure: 100 kPa (1,0 kp/cm2) minimum at normal running temperature, per the 6000–8750 engine specifications

  • Electrical system: 12 V, negative earth (6000–8750)

  • Opening temperature (thermostat): +79˚C or +83˚C, depending on thermostat. The 8050 and 8150 use a +79˚C smaller thermostat and a +83˚C larger thermostat.

  • Connecting rod weight intervals: 20 g

Valtra Manual Features & Selected Content Preview

This Valtra Valmet tractor workshop manual (P/N 39 210 211) covers the 1990–2002 Mega, Mezzo, and Hi-Tec range, including the 6000–8950 tractors and E-model configurations. It incorporates Valtra’s service updates through September 2002.

Text Search, Bookmarks, and Wiring Diagrams

Finding service information: Search the workshop text or use the embedded bookmarks to jump to major systems and subsections. Small connector, pin, and wire labels in dense schematics are best read at higher zoom. Some drawing labels are available only visually.

The download is one printable English PDF with 1,361 pages, including one additional front cover.


Engine Overhaul, Drivetrain Setup, and Fault Diagnosis

These selected workshop topics include major repairs and diagnostic procedures. The manual also covers TwinTrac brake adjustment and R12 and R134a cab air-conditioning service.

  • Engine and fuel system: Engine removal and installation, internal overhaul for the 320, 420, 620, and 634 families, turbocharger checks, and Bosch in-line and Stanadyne fuel-system procedures.

  • Clutch, transmission, and PTO: Tractor splitting, dry-clutch and HiTrol service, gearbox disassembly and setup, two-step quick-shift and Delta Powershift repair, mechanical and HiTech shuttles, 4WD clutches, and front and rear PTO overhaul.

  • Hydraulics and steering: Low- and high-pressure circuit tests, hydraulic pump and power-lift repair, steering circuit leakage checks, valve service, and hydraulic fault tracing.

  • Brakes and front axles: Wet-brake service and bleeding, trailer air brakes, front-axle air suspension, and repair procedures for Sige and Carraro front axles.

  • Autocontrol and power lifts: Autocontrol II, 2.1, 2.2, 2.3, III, IV, 5, and 5.2, including AC, ACB, and ACD power lifts, fault codes, and switch, sensor, and proportional-valve tests.

  • Workshop references: Model- and serial-specific wiring diagrams, connector legends, hydraulic schematics, component views, numbered special tools, torque tables, capacities, and inspection and adjustment limits.

The procedures suit tractor technicians and experienced repairers who can split the tractor, support heavy assemblies, and perform hydraulic and electrical tests. Use the model and serial references to identify the fitted coupling, gearbox, or control system before choosing a repair procedure.

Engine, Clutch, and Front-Axle Differences

The engine chapters distinguish three-, four-, and six-cylinder builds, including low-emission E engines. The Stanadyne section covers pump removal, installation, timing, and checks. It directs internal pump repairs to an authorized Stanadyne workshop.

The clutch chapter distinguishes the Voith and Transfluid HiTrol couplings and the cable and hydraulic release mechanisms. The Carraro 20.29 front axle replaced the earlier Sige industrial axle from production week 32/99. Earlier wheel discs have different fixing studs and do not interchange with the Carraro axle.

Autocontrol Tests and Circuit References

The E-model Autocontrol III and IV sections include manual fault isolation and the original PC-based Service Program workflow. The Autocontrol IV procedure calls for RS-232C service cable 32668200.

Autocontrol 5 and 5.2 use onboard modes to test switches, sensors, and proportional valves and to check or set pedal, shuttle, DPS, PTO, and 4WD functions, including clutch indexes and prefill settings. AC 5.2 adds fault-code memory. Its section covers changes from AC 5 and cross-references the AC 5 procedures.

Circuit references include the FieldMaster and AC 5.2 wiring diagrams, early and later hydraulic layouts, HiTech hydraulic circuits, steering fault tracing, and front PTO wiring and hydraulics. Drivetrain drawings show servo and lubrication circuits and section views of the clutch, shuttle, differential, PTO, and axles.

Special Tools and Workshop Precautions

Tool references include clutch-disc centering tool ETV 893 790, Carraro pinion-position tool set ETV 893 450, Carraro pinion-shaft nut socket ETV 893 490, and steering-valve seal tool ETV 893 100. The tools group also covers locally made splitting supports and hydraulic pressure-measuring equipment.

The manual includes maintenance schedules, lubricant and capacity tables, and service specifications. It directs readers to the separate Operator’s Manual for detailed routine maintenance.

Many procedures involve tractor splitting, heavy lifting, pressurized hydraulic or brake circuits, and refrigerant service. Follow the manual’s support, pressure-test, electrical-isolation, and air-conditioning safety instructions and use equipment appropriate to the repair. The electrical chapter calls for disconnecting both battery cables and the alternator wiring before welding to protect systems such as SigmaPower, CareTel, Agrodata, and Autocontrol.

Gearbox End Float and Carraro Backlash Examples

The gearbox section specifies 0.025–0.075 mm of end float for both the input shaft and the layshaft when setting the bearing shims.

For the Carraro 20.29 front axle, the differential setup specifies 0.17–0.23 mm of backlash between the bevel pinion and crown wheel.
