2007 Hyosung Rapier 450, TE450, TE-450 Service & Repair Manual (P/N 99000HP8910)

• Applies to the 2007 Hyosung Rapier 450 / TE450 in a 380-page PDF set: a 262-page factory service manual and a 118-page illustrated parts list. The service publication is 1st Edition, March 2007, Manual No. 99000HP8910.
• Details engine removal and remounting, full engine disassembly and reassembly, cylinder-head service, piston and crankshaft inspection, cam-chain timing, starter-clutch work, clutch repair, and transmission service.
• Walks through BDS42 carburetor removal and disassembly, float adjustment, fuel-pump testing, radiator and fan service, thermostat and temperature-switch testing, water-pump repair, coolant replacement, and cooling-system bleeding.
• Provides ignition, charging, and starter-system diagnosis, including coil and igniter checks, magneto testing, regulator/rectifier inspection, starter-motor teardown, switch continuity tables, component locations, cable routing, and the full wiring diagram.
• Covers front and rear brake repair, caliper and master-cylinder service, brake bleeding, wheel hubs, double-wishbone front suspension, steering and toe-in adjustment, swingarm service, rear-axle work, and shock setup.
• Includes symptom-based troubleshooting for the engine, carburetor, cooling system, electrical system, battery, chassis, and brakes, backed by special-tool references, tightening-torque tables, service limits, capacities, and electrical test data.

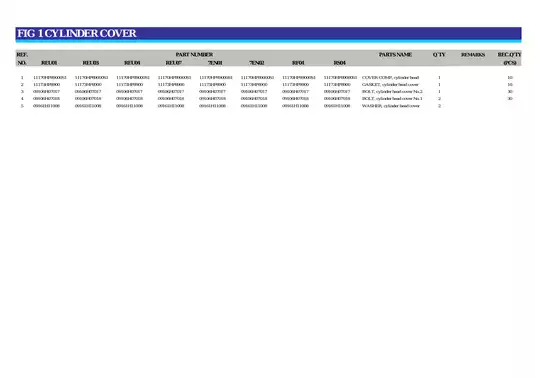

• The parts catalog supplies exploded assembly views and OEM reference tables for REU01, REU03, REU04, REU07, 7EN01, 7EN02, RF04, and RS04 model/market codes, with part numbers, quantities, remarks, and recommended stocking quantities.

This factory set covers the Rapier 450's liquid-cooled DOHC single-cylinder engine, five-speed transmission with reverse, carbureted fuel system, electrical equipment, brakes, steering, suspension, and rear drive. It is intended for readers who already have the knowledge and skills required to service Hyosung vehicles; it is not written as a beginner's repair course.

Engine and Drivetrain Repair

The engine chapter goes well beyond routine maintenance. It documents removal from the frame, teardown, component inspection, and final reassembly. Internal coverage includes the cylinder head and valve train, camshafts and journals, cam-chain guides and tensioner, piston and rings, connecting rod, crankshaft, crank balancer, clutch, oil pump, crankcase, gearshift mechanism, and transmission shafts and gears. Factory inspection sections provide wear limits, clearances, runout checks, and component-specific torque data rather than leaving internal-engine decisions to general rules of thumb.

Valve service includes cold-clearance inspection, camshaft removal, shim selection, valve timing, and separate intake and exhaust tappet-shim charts. Identified factory tools include crankcase separator 09920-13120, crankshaft installer 09910-32812, rotor remover 09930-30164, clutch sleeve hub holder 09920-53710, and valve spring compressor 09916-14510 with attachment 09916-14520.

The primary-drive-gear nut has left-hand threads, so treating it like a conventional fastener can cause damage. The crankshaft must be drawn into the crankcase with the specified installer; hammering it into place can disturb crankshaft alignment.

Fuel, Cooling, and Electrical Systems

Fuel-system repair covers the tank and petcock, vacuum-operated fuel pump, and BDS42 carburetor. The carburetor pages show diaphragm and float-chamber disassembly, jet and passage inspection, float-height adjustment, pilot-screw position recovery, cleaning limits, reassembly, and final throttle-cable and idle-speed adjustments.

Cooling coverage includes a circuit layout plus radiator removal, fan current testing, thermo-switch and water-temperature-switch bench tests, thermostat inspection, water-pump disassembly, and coolant-system bleeding. Electrical material includes the ignition-system schematic, charging-system schematic, starter-system schematic, electrical-component location views, wire-and-cable routing plates, and full wiring diagram. Diagnostic tables provide the relevant resistance, continuity, voltage, charging, lamp-load, battery, and fuse specifications.

Chassis Work and Parts Identification

The chassis section handles both routine repair and major disassembly: wheel and hub bearings, brake pads and disks, front and rear calipers, master cylinders, parking brake, pressure-control valve, front suspension arms, steering shaft and tie rods, swingarm, linkage, rear axle, and drive-chain adjustment. Front and rear spring preload and damping adjustments are documented. The shock absorbers themselves are identified as unserviceable assemblies, so the manual covers inspection, adjustment, removal, and replacement rather than an internal shock rebuild.

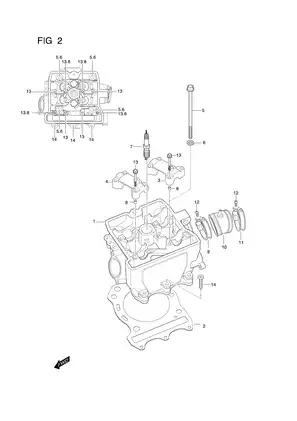

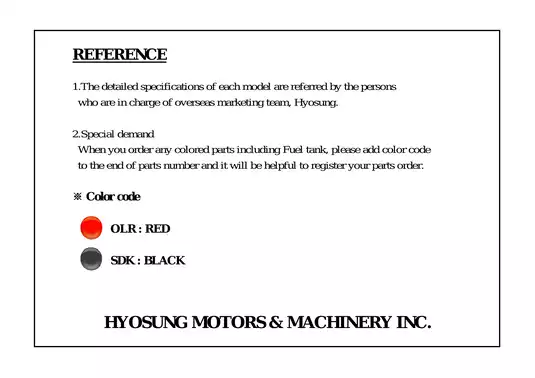

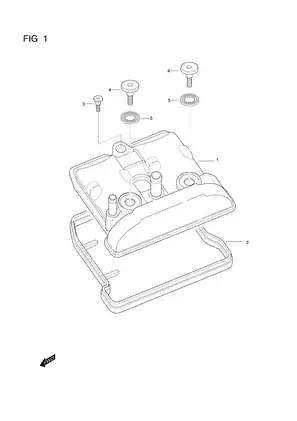

The illustrated parts list supports parts sourcing with numbered exploded views and matching reference tables. Representative assemblies include the cylinder head, crankcase, balance gear, camshaft and valves, carburetor, oil pump and tank, radiator, transmission, gear shifting, starting motor, magneto, wiring harness, frame, reverse mechanism, brakes, suspension arms, and rear axle. Body-part ordering data also identifies OLR red and SDK black color codes.

Electrical service should be performed with the battery disconnected whenever battery power is not required. The manual also flags gasoline, hot coolant, glycol-based brake fluid, and the shock absorbers' high-pressure nitrogen as system-specific hazards requiring proper workshop precautions.
