2001–2005 Aprilia Scarabeo 150 Service Manual

• 168 PDF pages document the Aprilia Scarabeo 150 with its 150 S engine configuration in a factory Aprilia service publication issued as Release 00, first edition May 2001, with identification, maintenance, engine, fuel, cooling, electrical, and chassis sections.
• Maps routine service for the battery, spark plug, idle and throttle controls, air cleaner, engine oil and filter, transmission oil, hydraulic disc brakes, coolant, steering, suspension, wheels, and tires.
• Documents complete engine removal along with fuel-tank draining, vacuum fuel-pump and level-sensor removal, KEIHIN CVK 26 carburetor removal, and radiator, fan, thermal-switch, thermistor, and expansion-tank work.
• Supports electrical diagnosis with the main wiring diagram, recharge and C.D.I. ignition checks, temperature and fuel-gauge tests, automatic-choke and carburetor-heater checks, plus starter, turn-signal, horn, brake-light, and lighting circuits.
• Breaks down chassis repair through body-panel and dashboard removal, handlebar controls, fuel tank, air box, exhaust, center stand, wheels and bearings, brake components, steering bearings, fork teardown and refit, and rear-suspension removal.
• Provides component-specific torque tables, fluid and lubricant data, electrical inspection values, service schedules, exploded assembly views, and a clear repair-scope boundary for internal engine work.

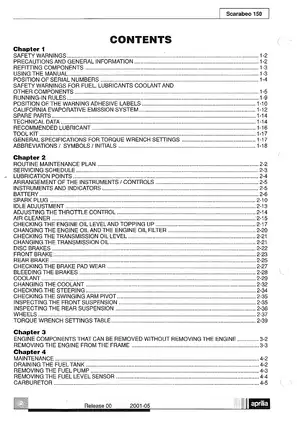

Component and System Documentation

Technical data identifies the 150 S engine as a single-cylinder, four-stroke, four-valve overhead-cam unit with liquid cooling, a KEIHIN CVK 26 carburetor, an automatic dry centrifugal clutch, and a stepless V-belt drive. The opening section also shows VIN and engine-number locations, warning-label positions, the California evaporative-emissions hose layout, recommended lubricants, and the supplied tool kit. Those details help match the manual to the scooter's actual configuration before parts or repair procedures are selected.

Routine maintenance is organized around workshop operations rather than a schedule alone. The manual covers conventional battery inspection, charging, and storage; spark-plug service; idle and throttle-cable adjustment; air-cleaner work; engine-oil, filter, and transmission-oil changes; front and rear hydraulic brake inspection and bleeding; coolant replacement; steering and swinging-arm checks; suspension inspection; wheel runout and balance; and tire condition. A component-specific torque table closes the maintenance chapter.

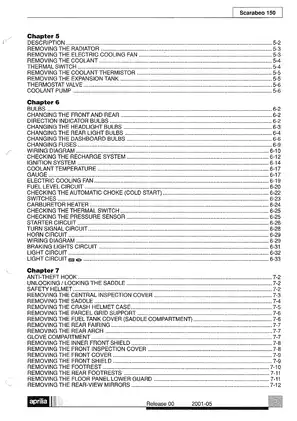

Fuel-system coverage includes tank draining, vacuum-pump and filter access, fuel-level sensor removal, a numbered carburetor exploded view, carburetor specifications, and removal from the intake and throttle linkage. Cooling-system pages explain coolant flow and cover radiator, electric fan, thermal switch, coolant thermistor, and expansion-tank removal. The thermostat valve and coolant pump are identified, but their detailed service information is assigned to the separate engine publication.

The electrical chapter goes well beyond bulb replacement. It supplies the complete wiring diagram and key, then gives inspection data and fault-isolation checks for the generator and recharge system, voltage regulator, ignition coil, pickup, C.D.I. control unit, coolant-temperature gauge, electric fan, fuel-level circuit, automatic choke, handlebar and brake switches, carburetor heater, oil-pressure sensor, starter relay and motor, turn signals, horn, brake lights, and market-specific lighting circuits.

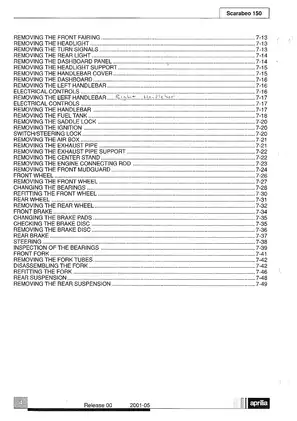

Chassis work starts with the saddle compartment, fairings, shields, footrests, lights, dashboard, handlebar covers, controls, locks, fuel tank, air box, exhaust, center stand, and engine connecting rod. It then moves into front-wheel removal and bearing replacement, rear-wheel removal, brake-pad and disc service, steering-bearing inspection, fork-tube removal and disassembly, fork refitting, and rear-shock removal.

The engine chapter has an important scope limit. It identifies the components that can be removed with the engine still in the frame and documents removal of the complete engine/rear-wheel/center-stand assembly, but it is not a full internal engine-overhaul manual. Internal engine repair is referred to separate Engine Workshop Manual Nos. 1000, 1001, and 1002.

Several cautions are especially useful during repair. The battery section is written for the conventional vented battery and warns that substituting a maintenance-free unit can damage the electrical system. Operating a brake lever while that caliper is off the disc can drive the pistons out and spill brake fluid. During fork repair, the spring must return with its tighter coils at the bottom, the seals and plug O-rings must be renewed, and any polishing must follow the tube length; the manual prohibits circumferential polishing and warns that contamination can quickly destroy the fork.

Specification and Reference Data

Reference material includes the routine-service charts, component torque settings, fluid capacities, lubricant requirements, wheel and brake inspection limits, suspension data, carburetor settings, and electrical resistance, continuity, voltage, and output checks. Representative graphics include the California evaporative-emissions schematic, KEIHIN CVK 26 carburetor exploded view, complete wiring diagram with component key, starter-circuit schematic, ASD/USA light-circuit diagram, and front-fork exploded assembly.

Fuel, coolant, battery electrolyte, hydraulic brake fluid, hot exhaust components, and lift-supported chassis work require proper ventilation, fluid handling, electrical isolation, and stable support before repair work begins.
