2003 Aprilia Scarabeo 50 ie / 100 4T Service & Repair Manual (P/N 8140696)

• Factory coverage and document identity: Scarabeo 50 I.E., Scarabeo 50 4T, and Scarabeo 100 4T; Release 00, February 2003; 110-page PDF; Aprilia document code 8140696 (UK) and cover code 1118 2.
• Separates the 50 I.E. injection and mixer-oil systems from the carbureted four-stroke layouts, with fuel-tank draining and removal, fuel-pump and filter work, throttle adjustment, mixer-oil bleeding, oil-pump disassembly, and air-cleaner service.
• Covers disc-brake repair through pad inspection and replacement, hydraulic bleeding, and caliper removal; the 100 4T rear drum-brake shoe operation is cross-referenced to a separate engine manual.
• Details wheel disassembly, checking, and reassembly; engine-fulcrum-axis inspection; fork-head bearing checks and adjustment; fork and damper disassembly; and rear-suspension removal.
• Includes body-panel and dashboard removal, exhaust-silencer disassembly, engine removal from the frame, engine-mount bushing removal, transmission-oil service, battery maintenance, and fuse replacement.
• Provides model-specific charging, injection, starter/stoplight, indicator/horn, lighting, and dashboard-circuit troubleshooting, with multimeter test data for the applicable components.
• Supplies full wiring diagrams, component-location views, cable-routing and fastening illustrations, tightening-torque tables, service schedules, lubricant data, capacities, wear checks, fuse ratings, and bulb specifications.

Model and Variant Coverage

This factory workshop manual treats the three Scarabeo layouts as distinct machines rather than grouping them under one generic repair outline. The 50 I.E. is the two-stroke injection version, with dedicated material for its mixer-oil circuit, fuel injector, air injector, injection relay, fuel pump, oil pump, and sensors. The 50 4T uses a Keihin CVK 17 carburetor, while the 100 4T data recognizes both Keihin CVK 20 and Dell'Orto PHVD 22 carburetor configurations.

The 100-specific sections cover its rear drum brake, fuel-level gauge unit, saddle support, dashboard, air cleaner, lighting, charging, and indicator/horn circuits. Technical-data and maintenance pages also separate the applicable engine, ignition, variator, brake, tire, battery, generator, fuse, and bulb information by version. That separation matters when selecting parts, test values, or a service schedule.

Workshop Repair Coverage

Body and access procedures cover the luggage rack, inspection cover, rear fairing, footboard, shields, handlebar covers, mudguards, mirrors, saddle supports, headlight, dashboard, and rear-light assemblies. Fuel-system work includes tank draining and removal, the injection-model fuel-pump flange, filter cleaning, the 100 fuel-level gauge unit, mixer-oil tank removal and bleeding, oil-pump disassembly, and air-cleaner casing removal.

The running-gear chapters go beyond routine checks. They document brake-pad replacement, hydraulic-system bleeding, caliper removal, wheel removal and inspection, fork-head bearing adjustment and removal, complete fork removal, lower fork-leg disassembly, damper removal, rear-suspension removal, and engine-fulcrum-axis inspection. Engine-related chassis work is limited to removing the engine from the frame and servicing the mounting bushings. Internal engine repair is outside this volume; the foreword directs that work to separate Aprilia Engine Service and Repair Manuals. The dedicated transmission section covers oil-level checking and oil replacement, but not a variator or gearbox overhaul. The publication assumes normal workshop knowledge and does not restate every basic service operation in detail.

Electrical Diagnosis and Diagrams

The electrical section contains fault-isolation material, not just a single schematic. Representative coverage includes the Recharge and General Power Supply Circuit, Injection Power, Injection Diagram, Stoplight and Starter Circuit, Direction Indicator and Horn Circuit, and Lighting Circuit. Related checks address the generator, voltage regulator, battery, relays, switches, ignition components, injectors, fuel and oil pumps, throttle sensor, temperature sensor, and wiring continuity where applicable.

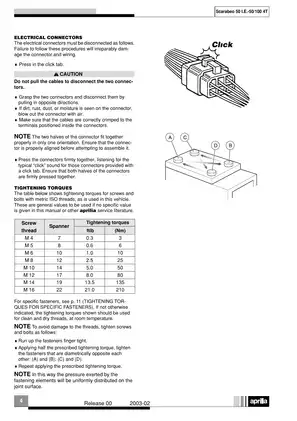

Full Scarabeo wiring diagrams are backed by circuit keys, cable-color references, component-arrangement drawings, and the Arrangement and Fastening of Cables and Wirings views. The connector section also flags a common repair mistake: pulling on the cables or forcing misaligned connector halves can damage terminals and wiring.

Specifications and Repair Notes

Reference material includes general ISO fastener torques and component-specific tightening tables for the frame, suspension, wheels, brakes, controls, fuel system, fairings, engine mounts, exhaust, and electrical parts. The lubricant chart, version-specific service schedules, fluid capacities, tire data, adjustment specifications, wear checks, fuse ratings, bulb specifications, and circuit test values provide the factory baselines needed to plan a repair and verify the finished work.

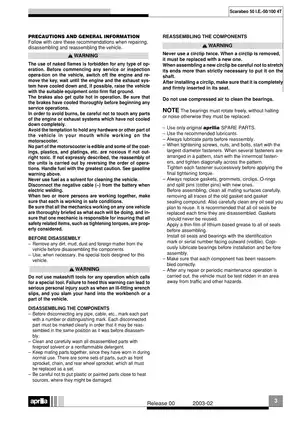

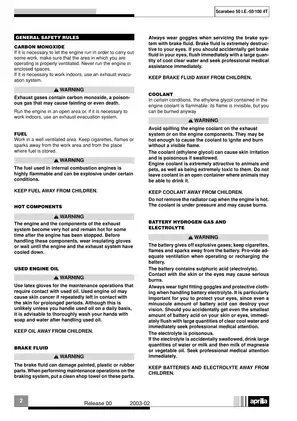

The manual calls out several practical workshop traps. Operating the rear brake lever with the caliper removed can push the pistons from their seats and spill brake fluid. During rear-suspension removal, the rear wheel must be supported so it cannot force the air-cleaner casing into the frame. Fuel, brake, battery, and injection work should be performed with the scooter safely supported and the applicable factory warnings followed.
