Daelim Daystar VL125 L, VL125 Service & Repair Manual (P/N SM38-9911-01E)

• Covers engine removal and installation, oil-pump service, cylinder-head and valve repair, piston and cylinder inspection, crankcase separation, crankshaft work, transmission service, and kick-starter repair.
• Details fuel-tank and air-cleaner service, carburetor removal and disassembly, float and pilot-screw setup, throttle and accelerator adjustment, and symptom-based fuel-system troubleshooting.
• Includes clutch and gearshift repair, A.C. generator and starter-clutch work, battery and charging-system tests, CDI ignition diagnosis, electric-starter service, and checks for lights, switches, meters, and horn.
• Addresses the front wheel, fork, and steering stem; the rear wheel, drum brake, rear cushion, and swingarm; plus hydraulic front-brake bleeding and caliper/master-cylinder overhaul.

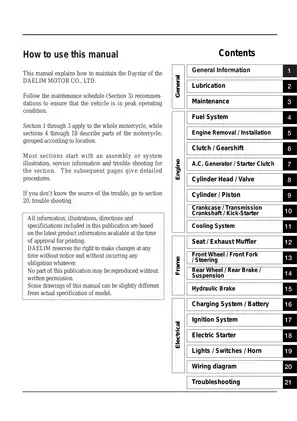

• Provides cable and harness routing views, component assembly illustrations, a full color-coded wiring diagram, valve-seat cutting references, troubleshooting charts, and tables for torques, wear limits, clearances, capacities, and electrical tests.
• 276-page PDF set — 214-page Daelim service manual plus a 62-page VL125L owner’s manual. Service data identifies the carburetor setting mark as VL125 B; the service volume carries printed document code SM38-9911-01E.

Confirming Daystar / VL125 Fit

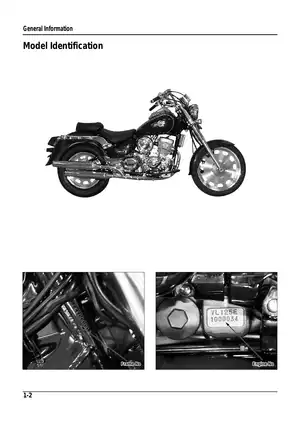

This set pairs Daelim’s Daystar service information with the VL125L owner’s manual. The service specifications describe the 124.1cc oil/air-cooled, four-stroke SOHC single-cylinder engine, five-speed constant-mesh transmission, carburetor fuel system, front hydraulic disc brake, and rear drum brake. Fitment is identified by the Daystar name, the VL125L designation, and the VL125 B carburetor setting mark; no VIN or serial-break table is included. The owner’s volume is marked November 1999 publication and May 2002 printing, not blanket 2002–2012 model-year coverage.

The service manual is suited to technicians and experienced owners who understand motorcycle teardown and have metric tools, pullers, gauges, electrical test equipment, and safe lifting support. The owner’s volume handles operation and routine maintenance rather than internal repair.

Engine and Drivetrain Repair Depth

Engine coverage runs beyond tune-up data. The lubrication chapter includes oil-pressure troubleshooting plus oil-pump removal, disassembly, inspection, and reassembly. Fuel-system material covers the tank, air-cleaner case, piston-valve carburetor, accelerator mechanism, and mixture-related diagnosis.

Internal engine chapters address camshaft and rocker-arm inspection, cylinder-head disassembly, valve-guide replacement, valve-seat cutting, head reassembly, and cam-chain timing. Separate sections cover piston and ring inspection, cylinder wear, crankcase separation, transmission and shift-fork inspection, crankshaft and bearing service, and kick-starter assembly. The manual identifies which repairs can be performed in-frame and which require engine removal or crankcase separation.

The clutch chapter covers clutch-pack inspection, gearshift linkage service, primary-drive-gear work, and installation. A separate section handles A.C. generator removal, flywheel and rotor work, reduction gears, and starter-clutch inspection. Troubleshooting charts isolate hard starting, power loss, low- or high-speed faults, shifting trouble, clutch slip, engine noise, and kick-starter problems.

Chassis, Brake, and Electrical Coverage

Frame procedures include fork and seal service, steering-stem bearings, rear sprocket and drum brake, rear-cushion disassembly, and swingarm inspection. The hydraulic-brake chapter covers fluid replacement, bleeding, disc and pad checks, caliper overhaul, and master-cylinder repair. Proper support is required when the engine or a wheel is removed, and brake friction surfaces must remain free of oil and grease.

Electrical diagnosis covers battery condition and charging output, regulator/rectifier and A.C. generator testing, CDI and pulse-generator diagnosis, ignition-coil and timing inspection, starter repair, and lighting-circuit continuity checks. Visual references include Cable & Harness Routing views, the valve-seat cutter chart, front-fork and transmission illustrations, starter/charging test layouts, and a Wiring Diagram covering connectors, switches, lighting, ignition, and charging.

Specifications, Tools, and Repair Cautions

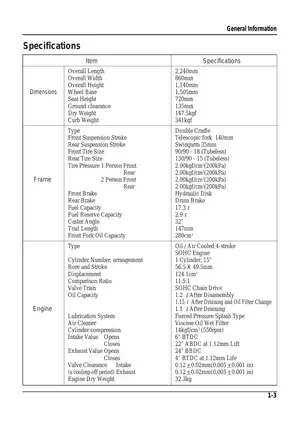

Each major repair section supplies related torque specifications, standard dimensions, inspection clearances, and service limits. Reference data also covers approved fluids, capacities, carburetor settings, gear ratios, wheel and brake wear limits, charging data, and ignition test values.

The tooling chart calls out clutch and flywheel holders, valve-guide and seat-cutting equipment, bearing and crankcase pullers, fork and steering tools, a rear-cushion compressor, gauges, circuit testers, and ignition adapters. Tool names are supplied, but tool part numbers are not.

Several factory cautions address mistakes that can damage parts during repair. Forcing the carburetor pilot screw against its seat can ruin the seat, while dirt on the crankshaft taper or inside the rotor can damage the Woodruff key or starter coil. The brake sections also warn that mixed or contaminated fluid can compromise the hydraulic system and damage painted, plastic, or rubber surfaces.
