Dodge Intrepid 2000 Service Manual (P/N 81-270-0040)
1,590 Pages • ZIP Download: 51 Printable PDFs (English)
Dodge Models Covered & Key Technical Specifications
Models: Intrepid, Concorde, 300M, LHS
Sub-models / Variants: LH-platform engine configurations: 2.7L DOHC V6 (EER, EES), 3.2L SOHC V6 (EGW), 3.5L SOHC V6 (EGG, ECG); market-specific Intrepid R/T
VIN engine identifiers (8th character): R, U, V = 2.7L; J = 3.2L; G = 3.5L
VIN variant identifier (5th character): F = Intrepid R/T (Dodge: U.S.A. and Mexico; Chrysler: Canada)
Automatic transaxle: 42LE (DGX), four-speed electronic automatic
Model Year: 2000
-
Engine displacement: 2.7L, 3.2L, 3.5L
-
Engine type: 2.7L: DOHC V6; 3.2L and 3.5L: SOHC V6; all 24-valve
-
Fuel system: EFI (sequential MPI), plastic tank located at rear center
-
Steering type: Standard, Firm-feel, or Speed-proportional (variable-effort)
-

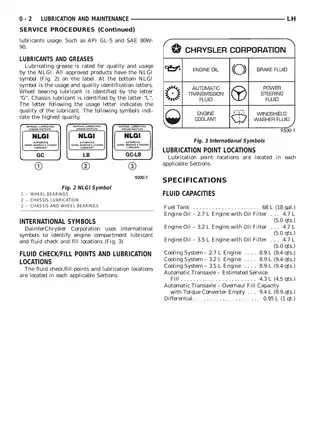

Automatic transaxle service fill capacity: 4.3 L (4.5 qts.)
-
Cooling system capacity (all engine variants): 8.9 L (9.4 qts.)
-
Differential capacity: 0.95 L (1 qt.)
-
Fuel tank capacity: 64 Liters (17 U.S. Gallons)
Dodge Manual Features & Selected Content Preview
The 2000 LH Electronic Service Manual from DaimlerChrysler Corporation, P/N 81-270-0040, covers Dodge Intrepid; Chrysler 300M, LHS, and Concorde; and market-specific Chrysler Intrepid and Intrepid R/T variants. Engine coverage includes the 2.7L, 3.2L, and 3.5L V6 families, together with the 42LE transaxle.
PDF Search, Bookmarks, and Page Breakdown
Search and diagram detail: Service text supports PDF text search, but many 8W wiring-diagram pages do not. Embedded bookmarks are available in the section files, although some engine headings are deeply nested. Small wiring labels require zooming for comfortable reading.
The ZIP download contains 51 printable PDFs in English, totaling 1,590 pages: 1,484 main-manual pages, 104 supplementary-section pages, and two navigation pages. These totals already include 46 blank pages.
Powertrain, Chassis, and Electrical Service

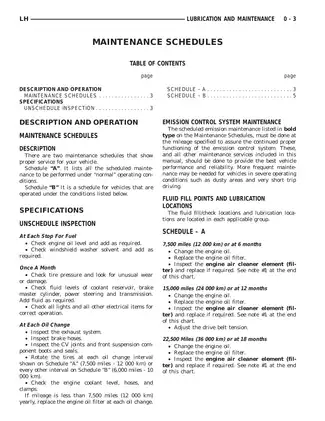

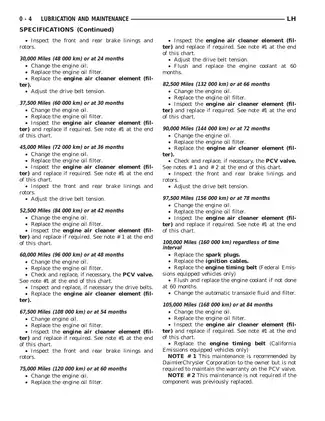

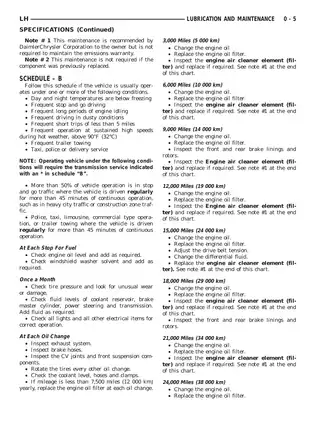

This selection of service topics is not a complete table of contents. Additional sections cover Schedule A/B maintenance, approved-fluid data, and compass calibration and demagnetizing.
-
Engine and cooling: Mechanical diagnosis, engine removal, internal repair, timing-chain or timing-belt service, cooling-system leak testing, water-pump replacement, and bleeding.
-
42LE transaxle: Road, hydraulic-pressure and clutch-air tests; complete teardown and assembly; valve-body and differential reconditioning; Quick Learn and pinion-factor procedures.
-
Chassis and steering: Four-wheel alignment, front and rear strut and bushing service, CV shafts, base and ABS/traction-control brakes, system bleeding, and power-steering diagnosis.
-
Fuel and emissions: Tank, pump-module, rail and injector service; sequential multi-port injection; PCM inputs and outputs; EVAP leak-detection, purge and EGR systems.
-
Electrical diagnosis: 8W wiring diagrams, connector pin-outs, splice and ground locations, terminal repair, module communication, and DRB III-linked component checks.
-
Body repair: Bonded glass, sunroof timing, door and window adjustment, plastic-panel repair, structural dimensions, and weld, sealer and structural-adhesive maps.
-
Heating and air conditioning: Manual A/C and ATC diagnostics, R-134a performance and leak tests, evacuation, charge-level checks, and component replacement.
The material is best suited to professional technicians and experienced owners with safe lifting equipment and access to scan, pressure-test, and refrigerant-service tools. Advanced powertrain, restraint, and structural work assumes established shop skills.
Engine, Cooling, and Transaxle Detail
Engine chapters cover compression/leakage and oil-pressure testing, cylinder-head and valvetrain service, piston and bearing fitting, and oil-pump repair. Step-by-step instructions distinguish 2.7L timing-chain work from 3.2/3.5L timing-belt service. Water-pump replacement is tied to the corresponding timing-drive procedures.
Illustrated special tools include Engine Lifting Fixture 8342, Timing Chain Tensioner Resetting Gauge 8186, and Camshaft Alignment Fixtures 6642. The transaxle clutch-air tests use plates 6599-1 and 6599-2.
The 42LE chapter extends into input-clutch service and bearing adjustment. Its clutch-application chart relates road-test symptoms to the clutches engaged in each gear, helping narrow down a slipping unit before internal inspection.
The timing procedures warn that these non-free-wheeling engines can suffer valve or piston damage if the camshafts or crankshaft are rotated out of position. The 42LE also has separate transmission and differential sumps requiring different lubricants; substitute transmission fluid is linked to torque-converter-clutch shudder.
Returnless Fuel System and Steering Variants
The fuel chapter follows the returnless system from the in-tank pump module and filter/regulator through ORVR plumbing, rollover and flow-management valves, rails, and injectors. Fuel-pressure specifications accompany the component descriptions and replacement procedures.
Steering coverage separates the 2.7L integral-reservoir pump from the remote-reservoir arrangement used with 3.2L and 3.5L engines. It addresses flow and pressure testing, gear and pump replacement, steering-column service, and the electronic solenoid used by speed-proportional steering.
Pump service is limited to external items such as the reservoir, related hardware, and pulley. Internal pump repair and repair of leaks from the pump itself are outside the prescribed service scope.
Electrical References and Market Equipment
Electronic sections explain PCM, TCM, BCM, and PCI-bus operation, with OBD II code definitions, Sentry Key learning and initialization requirements, and ATC self-diagnostics.
Diagnostic scope: Several systems refer code-specific fault isolation to separate Body, Chassis, Powertrain, or 42LE Diagnostic Procedures manuals. Those companion manuals are not included; the supplied service manual provides system operation, component checks, wiring, and repair procedures.
Representative illustrations include Primary Timing Chain Marks, Timing Belt Installation, ABS With Traction Control hydraulic circuits, the ORVR System Schematic, 42LE Transaxle Hydraulic Schematics, and Forward/Rear Frame Section views.
Market and equipment supplements cover E-mark/manufacturer-plate identification, overseas brake proportioning-valve service, tow hooks, and a locking fuel cap. Other sections address remote headlamp leveling, headlamp washers, rear fog lamps, and side-impact-airbag seat service.
Fuel, brake, steering, A/C, airbag, and underbody work requires the pressure-release, refrigerant-recovery, battery-isolation, and vehicle-support precautions stated in the manual.
Examples of Oil-Pressure and Steering-Flow Data
The 2.7L oil-pressure check specifies a minimum of 25 kPa (4 psi) at curb idle after the thermostat opens. For the 3.2L and 3.5L engines, the corresponding procedure lists 34 kPa (5 psi) at idle with the engine at normal operating temperature.
The steering-pump specification lists flow of 8.0–9.5 liters/minute (2.1–2.5 GPM) at 1,500 rpm and minimum pressure. Chapter-specific references also provide torque tables, service limits, clearances, alignment specifications, and electrical test values.
