Yamaha Zuma 50 CW50 1989–1990 Service Manual Set (P/N LIT-11616-06-54)

The supplement supplies changed identification and specifications, spark-arrester service, rear-shock preload adjustment, tire information, and the CW50TA wiring diagram. Yamaha requires it to be used with the base manual for complete service procedures.

Searchable Text, Bookmarks, and Wiring Detail

Text access and diagram detail: Searchable body text and embedded chapter and subsection bookmarks cover both publications. Some wiring-diagram labels are outside the searchable text; small wire-color and connector codes require zooming for comfortable reading.

The ZIP download contains one printable PDF with 226 pages total. This includes both publications, two shared preliminary pages, all original covers, and ten blank pages already included in the page count.

Engine Overhaul, V-Belt Drive, and Electrical Diagnosis

These selected contents outline the main repair areas rather than reproduce the full contents list. Further topics include centerstand lubrication and headlight beam adjustment and lens replacement.

• Engine overhaul: Step-by-step removal, crankcase separation, crankshaft installation, cylinder and piston inspection, reed-valve checks, oil-seal installation, CDI magneto work, and engine remounting.

• Drive and starting mechanisms: Primary and secondary sheave disassembly, dry centrifugal clutch inspection, V-belt service, kick-axle repair, starter-clutch inspection, and gear-transmission assembly.

• Fuel and lubrication: Teikei Y12P carburetor removal, disassembly, inspection and reassembly, vacuum fuel-cock testing, and Yamaha Autolube pump inspection and air bleeding.

• Wheels, brakes, and suspension: Wheel and drum-brake repair, steering-bearing service, front-fork disassembly, rear-shock inspection, and CW50TA-specific preload and tire procedures.

• Electrical fault finding: Ignition and starting tests, starter-motor repair, charging, lighting and signal diagnosis, connector-location views, and model-specific wiring diagrams.

• Workshop reference data: Special-tool part numbers, component torque tables, lubrication and cable-routing drawings, fluid specifications, wear limits, clearances, and electrical test values.

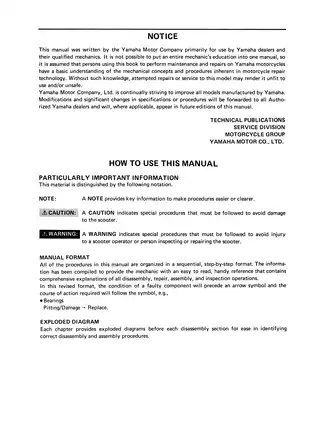

Written primarily for Yamaha dealers and qualified mechanics, these publications assume an understanding of mechanical repair principles and access to the appropriate tools and test equipment.

Maintenance and Internal Engine Repair

Routine service: The inspection chapter covers body-cover removal, idle and throttle-cable adjustment, ignition-timing checks, compression testing, oil service, air-filter cleaning, and fuel and exhaust inspection. Brake adjustment, steering and wheel checks, battery and fuse inspection, and cable lubrication are also included.

Internal inspection: Engine procedures extend to the cylinder head, cylinder, piston, rings, piston pin and small-end bearing, reed valve, crankshaft, crankcase, and seals. Measurement instructions distinguish serviceable parts from components requiring repair or replacement.

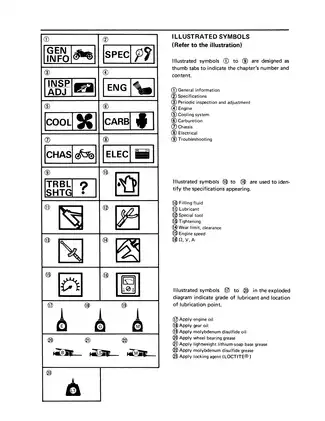

Exploded views identify internal part relationships, fastener positions, lubrication points, and locking-agent locations. The base manual also identifies assemblies that can be serviced with the engine still installed, helping plan access before a larger teardown.

V-Belt Drive and Starting Faults

The drive chapters distinguish the primary sheave, secondary sheave, centrifugal clutch, V-belt, kick axle, starter gears, and final gear transmission. Inspection and assembly instructions address sliding surfaces, weights, torque-cam grooves, bearings, seals, and spring components.

Troubleshooting charts link these assemblies to loss of drive, clutch disengagement failure, weak takeoff, poor climbing, and poor acceleration. Separate kick-start charts address slipping, hard operation, and a kick crank that fails to return.

Carburetor, Fuel Cock, and Autolube

A labeled carburetor sectional view separates the main metering and starter systems. Inspection covers jets, passages, the throttle valve, starter plunger, needle valve, and float; the float-height check is treated as inspection of a factory-set dimension rather than an adjustment procedure.

The fuel-cock section tests operation with and without vacuum. Autolube coverage includes delivery-line and pump-drive inspection, removal and installation, and bleeding after the lubrication system has been opened or run dry.

Wheel, Brake, and Steering Work

Wheel procedures include axle and rim runout checks, bearing and seal replacement, brake-shoe measurement, drum inspection, and speedometer drive-gear service. Steering and fork coverage extends to bearing-race replacement, inner-tube and spring inspection, reassembly, and cable routing.

Rear-shock coverage consists of removal, leakage and damage inspection, and replacement. The supplement adds spring-preload adjustment and load-dependent tire-pressure information.

Electrical Tests and Diagnostic Drawings

The ignition-and-starting quick-reference chart connects fault symptoms to component checks and the “Location of Parts-Connectors” views. Test sections cover the starter motor and relay, switches, spark-plug cap, ignition coil, source coil, pickup coil, wiring harness, and CDI-unit replacement.

Charging, lighting, and signal circuit diagrams accompany their troubleshooting charts. Signal checks extend to the horn, brake and turn lights, oil-level warning, fuel sender, and fuel meter; meter-assembly removal and installation are also described.

The separate CW50W and CW50TA wiring diagrams support variant selection before tracing a circuit. Together with the test charts, they help distinguish wiring and connection faults from failed components.

Special Tools and Assembly Cautions

Engine-tool references include flywheel magneto puller YM-01189, primary sheave holder YS-01880, clutch spring holder YS-28891, crankcase separator YU-01135, and crankshaft installation set YU-90050 with adapter YM-90062.

Chassis and electrical references include steering ring-nut wrench YU-33975, pocket tester YU-03112, and dynamic coil tester YM-34487. General and component-specific torque data sit alongside lubrication charts, capacities, clearances, compression data, and adjustment specifications.

Bearing and crankcase cautions address surface damage from spinning dry bearings with compressed air and damage from striking the crankshaft. Other handling notes address brake-lining contamination from cam grease and wires being pulled from terminals when couplers or bulb sockets are handled by their leads.

Engine, clutch, brake, battery, exhaust, and electrical work involves rotating parts, spring force, electrolyte, heat, and short-circuit hazards. Observe the publication’s warnings and appropriate workshop safety practices.

Selected Belt, Clutch, and Carburetor Inspection Values

The CW50W drive inspection specifies a V-belt width of 15.0 mm, with a 13.5 mm wear limit. Centrifugal clutch shoes have a standard thickness of 4.0 mm and a 2.5 mm wear limit.

For the Y12P carburetor, the float-height inspection specifies 15.0–17.0 mm with the float-chamber gasket removed and the needle-valve spring uncompressed. The manual identifies this as a factory-set height and provides component-inspection guidance for an out-of-specification result.
