Yamaha Raptor 80 YFM80WP 2002–2008 ATV Service & Repair Manual (P/N LIT-11616-15-38)
244 Pages • 30.73 MB • Printable PDFs (ZIP Download)
Yamaha Models Covered & Key Technical Specifications
Models: Raptor 80 (YFM80WP), YFM80D, YFM80M, YFM80MC
Sub-models / Variants: 5TH1, 4EMT, 4EMS, Badger
Model Years: 2002–2008 (2002, 2003, 2004, 2005, 2006, 2007, 2008)
Serial Numbers: YFM80WP (5TH1), YFM80(D) (4EM-000101+, 4EM-016101+)
-
Engine displacement: 79 cc
-
Engine type: Air-cooled 4-stroke, SOHC, single cylinder
-
Transmission type: 3-speed constant mesh with centrifugal automatic clutch
-
Fuel system: Mikuni VM16SH carburetor
-
Final drive: Shaft drive
-
Brake system: Front and rear drum brakes
-
Tire size (front): AT18 x 7-7
-
Tire size (rear): AT18 x 8-7
-
Ignition system: C.D.I. magneto
Yamaha Manual Features & Content Preview
- 244-page PDF set. The YFM80WP supplement LIT-11616-15-38 / 4EM-28197-22 is 24 pages; the YFM80M/YFM80MC supplement LIT-11616-13-28 / 4EM-28197-21 is 15 pages; and the YFM80(D) base manual LIT-11616-08-19 / 4EM-28197-20 is 205 pages. The middle volume carries the Badger 2000 set-cover number LIT-11616-YF-80.
- Model-specific data distinguishes YFM80WP code 5TH1, YFM80M/YFM80MC codes 4EMT for non-California machines and 4EMS for California, and YFM80(D) codes 4EM1 for the USA/Oceania and 4EM2 for Europe. The base manual also supplies region-specific starting frame, engine, and vehicle identification numbers.
- Engine sections guide removal and installation, crankcase separation, cylinder-head and valve service, camshaft and rocker-arm inspection, valve-seat and valve-guide work, piston/cylinder and crankshaft inspection, cam-chain timing, oil-pump service, and post-assembly checks.
- Drivetrain procedures cover clutch disassembly and plate-stack/height adjustment, transmission and shifter inspection, starter-clutch service, middle-gear U-joint assembly and shim selection, and rear-axle/shaft-drive removal, inspection, and installation.
- Mikuni VM16SH coverage includes carburetor removal, disassembly, passage and jet inspection, reassembly, float-height and fuel-level adjustment, plus variant-specific jetting and setup tables.
- Chassis material addresses front and rear drum brakes, wheels and bearings, steering and toe-in, tie rods and knuckles, front shocks/lower arms, the rear shock and swingarm, brake-cable adjustment, and final-drive maintenance.
- Electrical fault finding pairs the YFM80(D) and YFM80M/YFM80MC wiring diagrams with ignition, electric-starting, charging, and signal-system circuit diagrams, diagnostic charts, switch/bulb continuity checks, component test data, and starter-motor repair.
How the Manuals Work Together

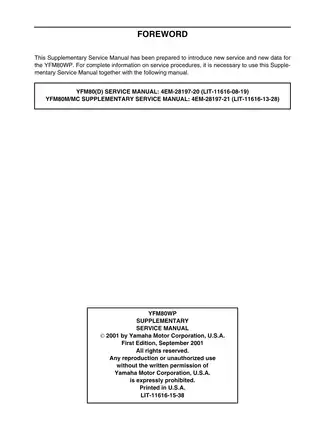

The YFM80WP publication is a supplement rather than a stand-alone repair manual. It adds the service changes and data for model code 5TH1, then directs the technician to the earlier YFM80M/YFM80MC supplement and YFM80(D) base manual for complete procedures. Both companion publications are included here, so the WP updates and the underlying overhaul information stay together.

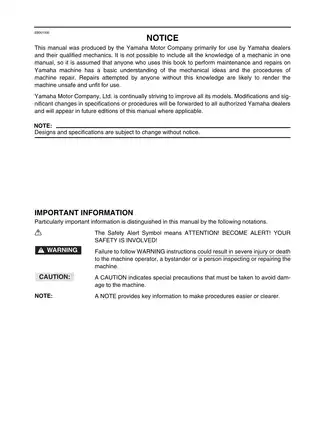

Yamaha produced these publications primarily for its dealers and qualified mechanics and assumes a basic understanding of mechanical repair. This set is therefore best suited to professional technicians or experienced owners with equivalent shop skills and test equipment.
Repair and Diagnostic Depth
The engine chapter goes well beyond periodic service. It covers valve-guide replacement and reaming, valve-seat cutting and lapping, cylinder measurement and rebore criteria, piston-ring and crankshaft inspection, transmission engagement checks, and oil-pump inspection. Reassembly material documents clutch plate order and height selection, middle-gear shim selection, U-joint bearing installation, the transmission check required before the crankcase screws are torqued, and cam-sprocket timing-mark alignment.
Troubleshooting is organized by symptom as well as by circuit. Mechanical charts address hard starting, poor idle or high-speed performance, drivetrain noise or lockup, shifting faults, clutch slip or drag, overheating, weak braking, shock-absorber problems, and unstable handling. Electrical charts isolate no-spark, no-crank, no-charge, and neutral-indicator faults through the relevant switches, relays, coils, wiring, and component tests.
Drawings, Specifications, and Service Tools

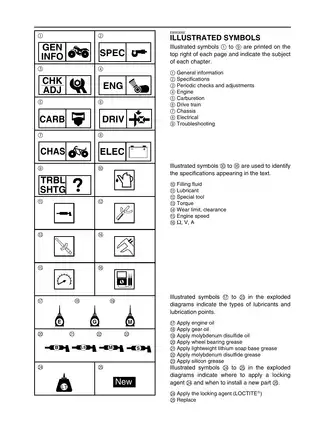

The 12 main assembly exploded views include the clutch, cylinder and cylinder head, carburetor, steering system, shaft drive, and starter motor. Four additional YFM80WP job diagrams cover the seat/front panel, front fender, rear fender, and fuel tank. Seven cable-routing illustrations trace the throttle and brake cables, main harness, battery and CDI leads, and the fuel and breather hoses.
Reference tables provide component-specific torque specifications, lubrication points and diagrams, fluid capacities, carburetor settings, inspection limits, wear criteria, and electrical test values. The special-tool pages identify Yamaha's regional alternatives; examples include universal clutch holder YM-91042 / 90890-04086, rotor puller YM-01189 / 90890-01189, valve spring compressor YM-04019 / 90890-04019, rear-axle nut wrench YM-37132 / 90890-01422, and dynamic spark tester YM-34487 or ignition checker 90890-06754.
The manual warns that spinning cleaned bearings with compressed air can damage their surfaces. It also calls out battery-breather routing because electrolyte or gas discharged against the frame can cause structural and cosmetic damage. Follow Yamaha's cautions when supporting the ATV for wheel or brake repair and when performing starting-circuit tests that can produce sparks.
The full wiring sheets are labeled for YFM80(D) and YFM80M/YFM80MC. The WP supplement provides updated WP electrical specifications and cable routing rather than a separately titled YFM80WP wiring sheet.
