2000 John Deere 415 & 455 Lawn and Garden Tractors Technical Manual (P/N TM1836)

John Deere technical manual TM1836 (April 2000) covers the 2000 John Deere 415 and 455 lawn and garden tractors, with maintenance and repair data for the 3TN66 and 3TNA72 diesels. It distinguishes Export and European electrical configurations and includes two-wheel and all-wheel steering systems.

Search and diagram navigation: The PDF has searchable text and section bookmarks. Six electrical harness/schematic bookmarks have no active destination. Small wiring labels require zooming; the electrical section also provides tiled views of wide sheets.

• Diesel engine repair: Engine removal, cylinder head and valve service, timing gear work, crankshaft and piston inspection, and oil pump disassembly and inspection.

• Fuel and cooling diagnostics: Injection nozzle testing, pump timing, fuel transfer pump checks, radiator and cooling system pressure tests, thermostat checks, and coolant temperature sensor testing.

• Hydrostatic transmission and PTO: Charge pump testing, hydrostatic pump and motor inspection, transaxle repair, clutch service, and neutral, pedal, and cruise control linkage adjustments.

• Electrical systems: Regional wiring diagrams, instrument panel and safety interlock circuits, control/fuse and diesel module tests, starter repair, and charging system diagnosis.

• Steering and brakes: Steering valve overhaul, cylinder leakage testing, front and rear toe-in adjustment, axle service, and European/non-European brake repair.

• Implement hydraulics: Relief valve pressure tests, pump flow checks at the couplers, lift cylinder and control valve leakage tests, and hydraulic control valve repair.

This manual suits readers experienced in engine and drivetrain repair who can use electrical test equipment, hydraulic gauges, and workshop lifting equipment.

Engine Service and Specifications

For the bottom end and valvetrain, the text documents camshaft end play, connecting rod side play, main bearing clearances, piston-to-cylinder head clearance, and ring end gaps. Separate engine tables provide torque settings, wear limits, and assembly clearances.

Rocker arm and timing gear housing assemblies have illustrated procedures. The valve seat section warns that cutting the seats can damage their sealing surfaces and cause leakage; grinding and lapping are covered.

Fluid specifications cover break-in oil, transmission/hydraulic oil, and coolant, alongside metric and inch fastener torque tables.

Fuel Injection and Cooling Tests

The fuel section covers nozzle disassembly and shim adjustment, shutoff solenoid linkage, and the governor linkage differences between early and late 3TNA72 engines.

Injection pump scope: Pump removal and timing are covered; internal repair, except delivery valve service, is assigned to a qualified fuel injection shop.

The radiator bubble test addresses combustion leakage into the cooling system.

Electrical Variants and Fault Isolation

At S.N. 070001, the electrical sections change to revised control/fuse module tests and RIO (Reverse Implement Option) circuits. Earlier regional harness versions have separate diagrams. Intermediate 455 Export entries retain XXXXXX serial-boundary placeholders, so harness configuration also matters.

Control/Fuse Module Test Points and input/output tables help distinguish a failed module from a fault in its supply circuit.

Other drawings include Main Electrical Schematic—415 Export, Rear PTO Wiring Harness—455 Export, and PTO Circuit—455 European. Charging system service covers both 20-amp and 40-amp alternators, with separate glow plug, fuel shutoff solenoid, and fuel tank sensor tests.

Hydrostatic Transmission and PTO Repair

Transmission coverage extends to the center valve block, pump and motor valve plates, the PTO clutch, mid and rear PTO drive trains, and the rear PTO gear case. Differential procedures are divided at S.N. 080001.

PTO work identifies the JDG757A Solenoid Valve Socket and JDT39 Transmission Gear Spacer. The transaxle instructions warn that tightening an improperly seated cover can damage the cover or case. A separate procedure covers the hydrostatic relief valve used with the 40 loader.

Steering, Brakes, and Hydraulic Diagnosis

Steering coverage distinguishes two-wheel and all-wheel systems, including rear steering linkage and pivot service. The steering cylinder is covered for testing and replacement, not internal rebuilding.

Brake procedures cover mechanical linkage adjustments, internal wet-disk brakes, and European pad-and-disk assemblies. The 415 has no differential lock.

The Hydraulic Schematic—Power Train connects the charge pump, PTO, steering, and implement lift circuits. Tests at the couplers are backed by direct pump testing to separate pump faults from downstream leakage. Control valve repair includes load-check and float-spool assemblies.

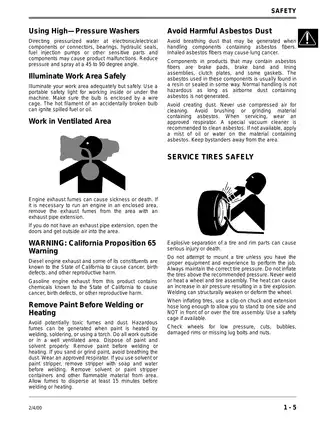

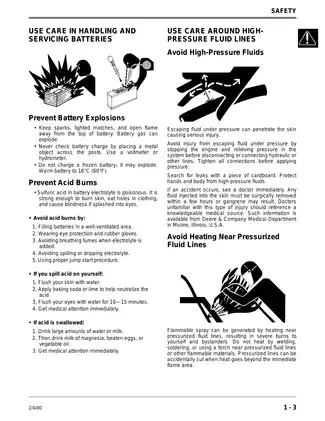

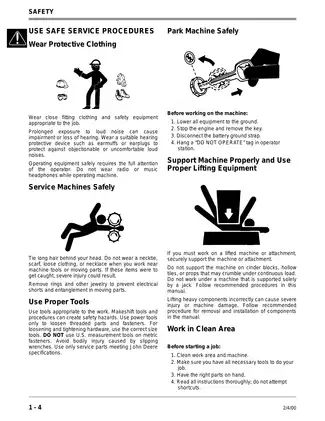

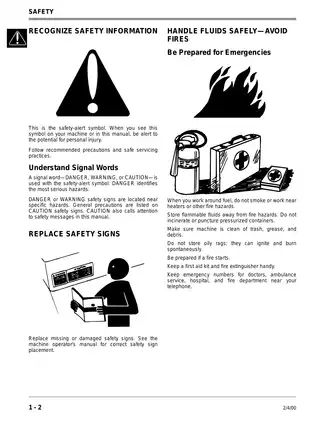

Scope and safe service: The referenced Miscellaneous section is not included in this PDF. Review the manual’s precautions for high-pressure fuel, hydraulic circuits, batteries, and supported machinery before service.

Printable PDF and Included Diagram Views

The English-language manual is supplied as one printable 383-page PDF: 294 main pages, including one cover page and 21 intentionally blank pages, plus 89 tiled views of 31 wide electrical sheets. All additional views are included in that total.
