1998–1999 John Deere 5210, 5310, 5410, 5510 Tractor Service Manual (P/N TM1716)

John Deere technical manual TM1716, dated June 18, 1999, covers repair and diagnostics for the 1998–1999 John Deere 5210, 5310, 5410 and 5510 tractors, including open-station and cab configurations. It separates mechanical repair from system operation, testing and adjustment.

• Engine, fuel and cooling: Engine removal and installation, injection-pump timing, valve-clearance adjustment, compression testing, radiator service and turbocharger boost checks.

• Clutches and transmissions: Tractor splitting, CollarShift and SyncShuttle transmission overhaul, PowrReverser clutch and control-valve repair, and creeper assembly service.

• Axles and PTO: MFWD drop-gearbox overhaul, differential and final-drive repair, rear PTO service, and cone-point and backlash adjustment.

• Hydraulics and hitch: Hydraulic-pump overhaul, rockshaft and selective control valve (SCV) repair, pressure and leakage tests, and 3-point hitch service.

• Steering and brakes: Steering-valve and cylinder overhaul, wet-brake inspection and replacement, brake-valve repair, and steering-system pressure and leakage tests.

• Electrical diagnosis: Starting, charging, interlock and instrument tests, wiring diagrams, connector identification, component-location views and wiring-harness repair.

• Cab and operator station: Seat, ROLL-GARD and cab service, air-conditioning compressor repair, refrigerant recovery and charging, and heating-system diagnosis.

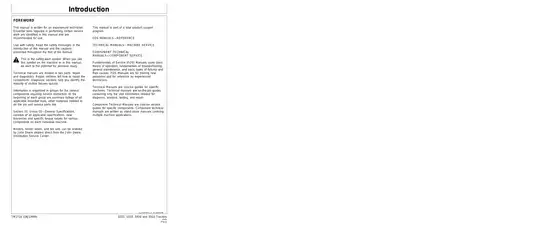

Written for experienced technicians, the manual identifies the essential tools needed for the service work it describes.

Engine, Fuel and Cooling Service

Engine diagnosis addresses hard starting, low power, smoke, lubrication faults and cooling-system problems. Fuel-system work includes bleeding and fuel shutoff-solenoid checks, with compression ratios and firing orders in the reference data.

Component repair limits: Internal engine overhaul and complete water-pump, injection-pump/nozzle/governor and turbocharger repair require CTM125 for 3029 engines or CTM104 for 4045 engines. These separate component manuals are not included.

Transmission Repair and Fault Isolation

Powertrain sections distinguish the dry dual-clutch arrangement from the PowrReverser wet multi-disk system. Fault charts and PowrReverser control-valve pressure tests help narrow drive complaints to linkage, clutch, valve or internal-leakage causes before major disassembly.

The MFWD Drop Gearbox Cross Section supports gearbox assembly work. Tool references include the JDG689 universal clutch alignment tool and fabrication details for the DFLV1A final-drive turning tool; metric and inch torque charts supplement component-specific settings.

A clutch-shaft installation warning explains how misaligned splines can damage the clutch disks and shafts.

Hydraulic Diagnosis and Power Beyond

Hydraulic tests distinguish tractors with and without SCVs. Pump-flow and main-relief checks lead into SCV and rockshaft leakage diagnosis, followed by position- and draft-sensing feedback-linkage adjustments.

The Hydraulic System Schematic—With Selective Control Valves and Power Beyond Hydraulic Schematic show how the pump, valve assemblies and external hydraulic connections relate. The power-beyond instructions flag incorrect orbital-motor connections as a cause of overheating and hydraulic-component damage.

Always review the manual's safety instructions for relieving hydraulic and cooling-system pressure before opening lines or beginning disassembly.

Electrical Schematics and Cab Systems

Starting System Operation—Normal and separate cab and open-station electrical schematics accompany test-point charts and wire-color references. Starter and alternator component service is covered by the separate CTM77, which is not included.

Cab service extends to R134a compressor testing and overhaul, expansion-valve diagnosis, evacuation procedures, blower circuits and heater-control adjustment.

A Preview of Differential Settings and Fluid Capacities

These are a few of the adjustment and capacity figures provided in the manual. Rear differential setup data include a cone-point dimension of 17.5 ± 0.05 mm and ring-gear backlash of 0.18–0.25 mm.

Hydraulic-system capacities are listed as 38 L for the 5210, 5310 and 5410, and 41.8 L for the 5510. The 5410 and 5510 cooling-system specification is 10.8 L.

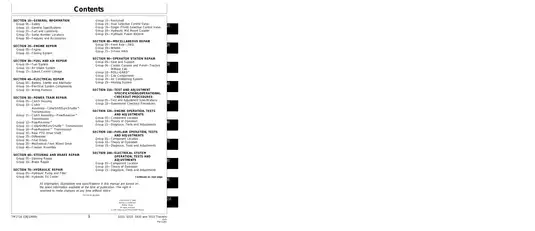

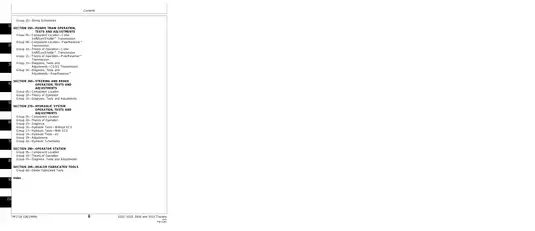

PDF Navigation and Included Diagram Pages

Text search and diagram detail: The body text is searchable, although some labels within illustrations are not. Embedded bookmarks link to sections and individual procedures. Small wire and connector labels on the wide wiring sheets are best viewed with magnification.

One printable 1,336-page PDF in English. The total includes 1,298 manual pages, with the cover, contents, index and blank pages, plus 38 additional page-sized views of the 14 wide diagrams.
