John Deere Models Covered & Key Technical Specifications

Models: F710 (FC540V engine), F725 (FD590V engine)

Sub-models / Variants: 48 Inch Deck (F710), 54 Inch Deck (F725); Sundstrand hydrostatic transmission (F710, F725)

Model Year: 1991


  • Engine displacement (F710): 535 cc (32.64 cu. in.)

  • Engine displacement (F725): 585 cc (35.7 cu. in.)

  • Horsepower (F725): 15 kW (20 hp)

  • Cooling system (F710): Forced air

  • Cooling system (F725): Liquid

  • Forward travel speed at full engine RPM: 0–11.2 km/h (0–7 mph)

  • Engine-to-frame cap screw torque: 41 N·m (30 lb-ft)

  • Engine crankcase oil capacity (F725): 2.1 L (4.44 U.S. pt)

John Deere Manual Features & Selected Content Preview

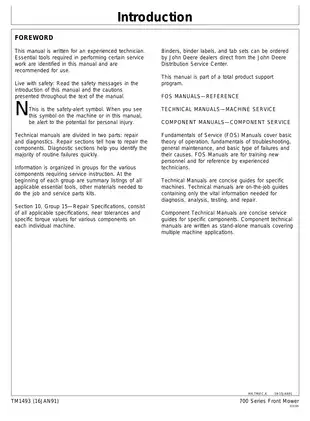

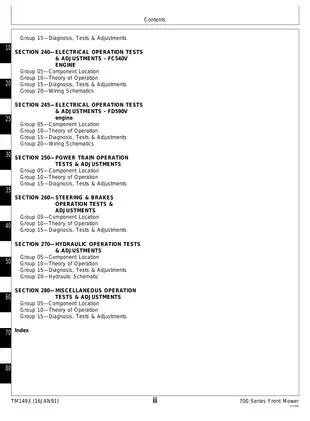

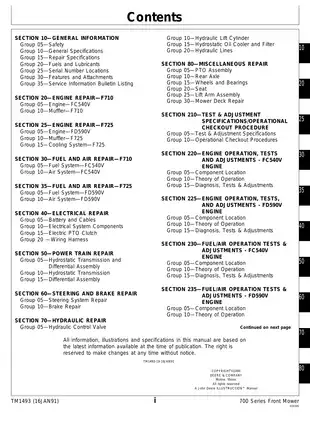

John Deere’s February 1995 technical manual (P/N TM1493) covers the 1991 F710 and F725 front mowers. It has separate sections for machine repair and for system operation, diagnosis, testing, and adjustment.

Bookmarked PDF with Wide-Format Diagrams

Text search, bookmarks, and diagram detail: Most text sections are searchable. Some repair pages and diagrams are image-only. Bookmarks lead to the main sections, service groups, and index. Small wiring labels are best read at higher zoom, and some fine print is faint.

One printable 674-page English PDF includes 648 manual pages, from the original cover and foreword through the index. The total includes 26 additional tiled views of wide diagrams.


Engine, Hydrostatic Drive, and Mower Deck Service

The topics below are selected highlights. The manual also covers fuel tank inspection and fusible link replacement.

  • Engine and fuel systems: Engine removal and installation, compression and crankcase vacuum testing, valve adjustment, fuel-pump testing, and carburetor removal for both engine variants.

  • Electrical diagnosis: F710 and F725 wiring schematics, component location drawings, operator-presence circuit diagrams, relay and charging-system tests, and electric PTO clutch adjustment.

  • Hydrostatic drive: Sundstrand transmission and differential disassembly, inspection, and assembly, plus charge-pump pressure testing, neutral adjustment, and differential-lock diagnosis.

  • Steering and hydraulics: Power steering valve repair, gerotor timing, lift-control valve service, cylinder leakage tests, and weight-transfer troubleshooting.

  • Brakes, axle, and decks: Shoe-and-drum brake service, rear axle and bushing repair, PTO gearbox service, spindle repair, and mower deck leveling.

Written for experienced technicians, the manual assumes familiarity with service work and identifies the special tools needed for specific jobs.

FC540V and FD590V Engine Service

Separate diagnostic sections for the F710’s FC540V and the F725’s FD590V cover cylinder leakage and oil-pressure testing, along with governor, throttle, and choke adjustments. Fuel-system repair covers pump inspection, hose replacement, and carburetor installation. Air-cleaner service is included for both engines.

Component overhaul: Internal engine and carburetor overhaul and complete starter, ignition, and charging-component repair require a separate publication, CTM5 for the F710 or CTM39 for the F725.

F725 liquid cooling: This manual covers radiator inspection and removal of the radiator, cooling fan, and thermostat. Coolant-pump repair is covered in the separate CTM39.

Electrical Fault Tracing and PTO Clutch Tests

Starting-system test-point charts help trace a no-start through the interlocks and relays. The printed circuit board LED guide explains why an unlit LED calls for circuit checks before replacing the board. F725-specific checks cover the pulser coils, ignition module, and coolant-temperature lamp.

Electric PTO coverage includes clutch removal, inspection, and electrical tests. The repair section identifies the individually replaceable parts and the damage that calls for a complete clutch assembly.

Sundstrand Drive, Steering, and Lift Hydraulics

Transmission repair includes pump rotor inspection and rotating-group assembly. The Kanzaki differential section covers input pinion-to-reduction shaft backlash adjustment. Separate fault charts address erratic forward or reverse drive, alongside control-linkage adjustment and differential-lock tests. Separating the pump body at the wrong point can damage its machined mating surfaces.

Steering and lift: The hydraulic schematic traces the steering and lift circuits. The AM 119987 steering valve procedure includes gerotor timing illustrations and identifies the KML10018-3 spring installer. Testing covers relief pressure and steering and lift cylinder leakage. A defective lift cylinder requires replacement as an assembly.

PTO Gearboxes and Mower Deck Repair

The PTO gearbox uses the mower gearbox’s disassembly and inspection procedure. Deck coverage includes blade sharpening and balancing, spindle bearings and seals, and side-to-side and front-to-rear leveling. A 48-inch spindle cross-section supports the assembly instructions.

Clamping the spindle shaft by its hex end can damage the shaft and affect blade operation. If the blades turn slowly, the manual’s diagnostic chart helps trace the fault from the clutch through the belts, gearboxes, and mower drive.

Follow the manual’s safety precautions for pressurized hydraulics, rotating blades, and supported machine components.

A Preview of Valve and PTO Clearances

For cold intake and exhaust valves, the clearance is 0.15 mm (0.006 in.) on the F710 FC540V and 0.25 mm (0.010 in.) on the F725 FD590V.

For both models, the electric PTO clutch adjustment specifies an air gap of 0.38–0.64 mm (0.015–0.025 in.), with equal clearance at each adjustment point.
