Yamaha 9.9V/15V & Other Outboards 2003 Service Manual Collection (P/N LIT-18616-01-65)

Use each supplement with its referenced base manual; it adds model-specific changes rather than replacing the original procedures. The F200 supplement also supplies corrections for the F225/LF225 base manual. The included index cross-references individual outboard variants to the appropriate manuals and supplements.

Edition requirements: The F50Z/T50Z supplement calls for the earlier F40X/F50X/T50X base manual, 62Y-28197-Z8-11; that edition is not included. The T60B preface cites an F60A supplement numbered LIT-18616-02-41, while the included F60A supplement is numbered LIT-18616-02-40.

Text Search, Bookmarks and Diagram Detail

Search and diagram detail: Text search is unavailable in the 9.9V/15V PDF and 16 other files. In the combined F15 PDF, searchable text is limited to the supplement; in the F30 PDF, to the final wiring diagram. The remaining 15 PDFs support text search. Technical PDFs have bookmarks, but the C115-family return-to-index link targets a missing file. Small wiring labels in the checked diagrams are readable with zooming.

The ZIP contains 34 printable PDFs totaling 7,272 pages, including the one-page model-to-manual index, one unnumbered additional page in the 9.9V/15V PDF and the one-page F225/LF225 correction appendix within the F200 supplement. Covers, blank leaves and embedded supplements are included in that total. The total includes base-manual material repeated in the combined F30 and T8 PDFs.

Power-Unit, Gearcase and Outboard Electrical Service

These are selected coverage highlights, rather than a complete contents list. Other topics include jet-drive impeller clearance and bearing lubrication.

• Power-unit repair: Step-by-step engine removal, crankcase separation, crankshaft and piston inspection, reassembly, cylinder-head work and thermostat testing in the applicable manuals.

• Carburetors and controls: Carburetor disassembly, diaphragm fuel-pump inspection, reed-valve checks, ignition timing, throttle-link adjustment and start-in-gear protection.

• Lower-unit overhaul: Water-pump and impeller service, dog-clutch inspection, shaft-seal replacement, gear shimming and forward/reverse backlash measurement.

• Brackets and trim: Steering-handle, shift-lever, clamp-bracket and swivel-bracket repair, plus hydraulic trim-and-tilt service for the applicable models.

• Electrical diagnosis: Ignition, starting and charging diagrams, CDI peak-voltage tests, switch checks, wire-color legends and starter-motor repair.

• Four-stroke valve gear: Model-specific valve-clearance checks, camshaft inspection, timing-belt replacement and timing-chain inspection in the larger four-stroke manuals.

• Fuel injection and electronic diagnosis: Fuel-pressure checks, vapor-separator service, oil-injection tests, injector testing and Yamaha Diagnostic System procedures in the applicable manuals.

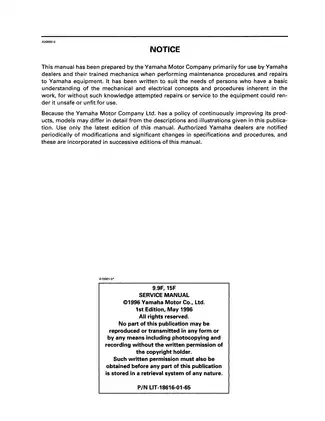

Yamaha wrote the service manuals primarily for dealers and trained mechanics with a basic understanding of the mechanical and electrical work involved.

9.9V/15V Engine and Fuel-System Work

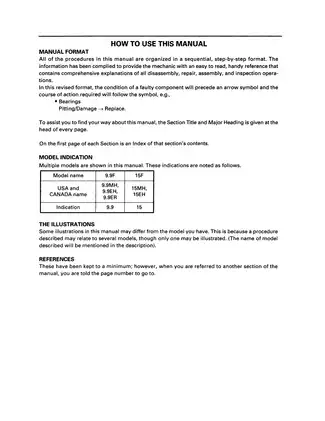

The main manual documents a two-cylinder, loop-charged two-stroke engine with a single carburetor, reed-valve intake, CDI ignition and premixed fuel-and-oil lubrication. Identification tables distinguish tiller, remote-control and combined-control versions.

Periodic-service coverage includes anode and battery checks, spark plug evaluation, gearcase leak testing and greasing points. Internal-engine inspection extends to cylinder taper and out-of-round, piston-ring end gap and groove clearance, crankshaft runout and cylinder-head resurfacing.

Recoil-starter service covers the sheave drum, spiral spring, drive pawls and operational checks. The flywheel-removal notes explain how uneven puller engagement can damage the engine or tools.

Fuel-joint pressure testing and float-height/needle-valve inspection are documented separately. Reed-valve stopper settings distinguish the two horsepower versions and European 9.9 variants. The carburetor section warns that steel-wire cleaning can enlarge the jets and affect performance.

Gearcase Setup and Bracket Assemblies

The main manual separates USA/Canada shim-selection methods from those for other markets. It distinguishes reusing the original case and internals from replacing the case or internal components, with different calculation and measurement requirements. These distinctions help identify the correct setup method before selecting shims.

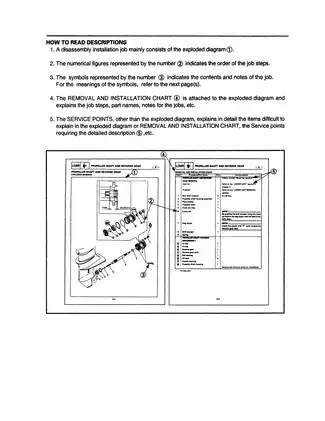

Bracket coverage extends to upper-case and exhaust-manifold removal, rubber-mount inspection, tilt-lock components and the shallow-water-drive mechanism. Exploded views titled Crank Shaft and Piston and Propeller Shaft and Reverse Gear accompany removal/installation charts with component and assembly notes.

Electrical Fault Tracing and Larger-Engine Systems

For the main manual, component-location views distinguish manual-start, electric-start and remote-control models. Tests cover the charge and pulser coils, lighting coil, rectifier, stop switch, main switch, starter switch and neutral switch. Starter inspection reaches the armature, commutator, brushes and overrunning clutch.

The Trouble Analysis Chart connects no-start, rough-idle, stalling, hard-shifting, loose-steering and poor-charging symptoms with suspect components and the relevant chapters. Ignition System, Starting System and Charging System wiring diagrams support circuit tracing.

The larger-engine publications add model-specific systems. The F225/LF225 manual covers valve gear, timing belts and chains, fuel injection and hydraulic trim-and-tilt diagnosis. Its Yamaha Diagnostic System section explains sensor monitoring, stored diagnosis and component tests; it describes the diagnostic equipment rather than supplying the software or interface hardware.

The Z250/LZ250 manual covers high-pressure fuel-system checks but specifically cautions against dismantling the fuel-injection pumps, which require specialized facilities and tools for reassembly.

Factory tables provide tightening sequences, lubrication grades, capacities, wear limits, clearances and electrical test specifications. Main-manual special-tool references include the YB-06117 flywheel puller, YB-34232 pinion height gauge and YU-39991 peak-voltage adapter, with regional tool-number distinctions.

Reference only — always consult a certified technician before performing service on this equipment.

Preview of Piston Clearance and Crankshaft Runout

For the 9.9F/15F engine, the manual lists a standard piston-to-cylinder clearance of 0.035–0.040 mm and a wear limit of 0.090 mm. These are separate acceptance criteria in the internal-engine inspection data.

The crankshaft inspection section specifies a runout limit of 0.03 mm, with a V-block and dial-gauge measuring illustration.
