Yamaha 9.9U/15U Outboard Service Manual Collection, 1995–2006 (P/N 63V-28197-Z5-11)
797 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models: 9.9U, 15U, 9.9F, 15F, 9.9V, 15V, F8B, F9.9A, F9.9B, T9.9U, F9.9U, T9.9W, F9.9W, FT9.9A, 9.9C, 15C
Models & Model Codes:
9.9U — 682C; 9.9MH (9.9FMH), 9.9EH (9.9FEMH), 9.9FEMHR
15U — 684C; 15MH (15FMH), 15EH (15FEMH), 15FEMHR
9.9F — 682C; 9.9FMH (9.9MH), 9.9FEMH (9.9EH), 9.9FEMHR; 9.9FEMR (9.9ER) in the 9.9V publication
15F — 684C; 15FMH (15MH), 15FEMH (15EH), 15FEMHR
9.9V — 682C; 9.9MH (9.9FMH), 9.9EH (9.9FEMH), 9.9FEMHR, 9.9ER (9.9FEMR)
15V — 684C; 15MH (15FMH), 15EH (15FEMH), 15FEMHR
F8B — 6J7; F8BM, F8BEM, F8BE, F8BMH, F8BEH
F9.9A — 6G8; F9.9AM (T9.9MH), F9.9AEM (T9.9EH), F9.9AE (T9.9ER)
F9.9B — 6G9; F9.9BM / F9.9BMH (F9.9MH), F9.9BEM / F9.9BEH (F9.9EH), F9.9BE
T9.9U — 6G8; T9.9MH (F9.9AM), T9.9EH (F9.9AEM), T9.9ER (F9.9AE)
F9.9U — 6G9; F9.9MH (F9.9BM), F9.9EH (F9.9BEM), F9.9BE
T9.9W — 6G8; T9.9MH (FT9.9AMH), T9.9EH (FT9.9AEH), T9.9ER (FT9.9AE)
F9.9W — 6G9; F9.9MH (F9.9BMH), F9.9EH (F9.9BEH), F9.9BE
FT9.9A — 6G8; FT9.9AMH (T9.9MH), FT9.9AEH (T9.9EH), FT9.9AE (T9.9ER)
9.9C — 682K; 9.9CMH (USA), 9.9FMH (World Wide)
15C — 684K; 15CMH (USA), 15FMH (World Wide)
Sub-models / Variants: USA, Canada, World Wide, Manual Start (MH), Manual & Electric Start (EMH/EH, EMHR) on the 9.9F/15F two-stroke models, and EMR/ER in the 9.9V publication; manual-start and electric-start four-stroke configurations; tiller and remote control; S (Short Shaft), L (Long Shaft), SUL / UL / X (Extra-Long Shaft). Four-stroke lower-unit variants: F-N-R spiral bevel gears in standard F8B and F9.9/F9.9B units, 2.08 (27/13), and high-thrust T9.9/F9.9A and T9.9/FT9.9A units, 2.92 (38/13).
Model Years: 1995–2006 (1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)
Serial Numbers: 9.9U/15U publication — 9.9FMH: S:150101~, L:450101~, SUL:850101~; 9.9FEMH: S:350101~, L:600101~, SUL:900101~; 9.9FEMHR: S:630101~, L:660101~; 15FMH: S:400101~, L:150101~, SUL:830101~; 15FEMH: S:300101~, L:600101~, SUL:900101~; 15FEMHR: S:380101~, L:650101~
F8B/F9.9A/F9.9B, T9.9U/F9.9U publication: F8BM: S:000385~, L:301411~; F8BEM: S:200148~, L:500666~; F8BE: S:100264~, L:400858~; T9.9MH/F9.9AM: L:303984~, UL:703193~; T9.9EH/F9.9AEM: L:471124~, UL:787490~; T9.9ER/F9.9AE: S:100971~, L:411409~, UL:762032~; F9.9MH/F9.9BM: S:009454~, L:307212~; F9.9EH/F9.9BEM: S:200321~, L:500329~; F9.9BE: S:101244~, L:401799~
9.9V/15V publication: 9.9FMH: S:155562~, L:455181~, SUL:850196~; 9.9FEMH: S:700301~, L:600791~, SUL:900141~; 9.9FEMHR: S:630246~, L:660183~; 9.9FEMR: L:690256~; 15FMH: S:405497~, L:153352~, SUL:830146~; 15FEMH: S:300231~, L:600511~, SUL:900131~; 15FEMHR: S:380261~, L:650243~
T9.9W/F9.9W publication: F8BMH: S:000490~, L:301713~; F8BEH: S:200158~, L:500786~; F8BE: S:100302~, L:400964~; FT9.9AMH/T9.9MH: L:304623~, X:703474~; FT9.9AEH/T9.9EH: L:472276~, X:788442~; FT9.9AE/T9.9ER: S:101224~, L:413584~, X:762552~; F9.9BMH/F9.9MH: S:010452~, L:308168~; F9.9BEH/F9.9EH: S:200421~, L:500514~; F9.9BE: S:101488~, L:402044~
9.9C/15C publication: 9.9FMH / 9.9CMH: S:1009214; 15FMH / 15CMH: S:1019178
Technical specifications below: 9.9U/15U (9.9F/15F) two-stroke publication.
-
Engine type: 2-stroke, 2-cylinder
-
Displacement: 246 cm3 (15.01 cu. in)
-
Full Throttle Operating Range: 4500–5500 r/min
-
Output (ISO): 7.4 kW (9.9 HP) / 11.2 kW (15 HP)
-
Fuel system: Carburetor (1), Loop Charge induction, Reed Valve
-
Gear ratio: 2.08 (27/13)
-
Ignition system: CDI
-
Gear oil capacity: 250 cm3 (8.45 US oz)
-
Spark plug: NGK B7HS-10 or BR7HS-10
-
Flywheel nut torque: 105 Nm (75 ft-lb)

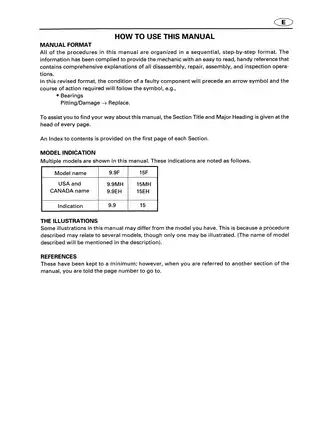

Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 9.9U/15U (U.S.) and 9.9F/15F (worldwide), two-stroke service manual, March 1995. P/N 63V-28197-Z5-11, cover reference LIT-18616-01-22 | 134 |
| F8B/F9.9A/F9.9B (worldwide) and T9.9U/F9.9U (U.S. and Canada), four-stroke service manual, July 1995. P/N LIT-18616-01-35 | 188 |
| 9.9V/15V (U.S. and Canada), two-stroke service manual, May 1996. P/N LIT-18616-01-65 | 139 |
| T9.9W/F9.9W, four-stroke service manual, January 1998. P/N LIT-18616-01-83 | 201 |
| 9.9C/15C, two-stroke service manual, December 2003. LIT-18616-02-59, cover reference 63V-28197-1F-11 | 135 |
Use the model and starting-serial-number tables to select the matching manual before looking up service procedures. The four-stroke manuals provide separate shimming and backlash data for standard and high-thrust gearcases.
PDF Search and Diagram Navigation
Bookmarks and wiring labels: Embedded bookmarks open the five manuals and their chapters. The main-index bookmark points to a separate file outside the download. Text search is limited to selected pages of the 9.9C/15C manual. Zoom in to read small connector labels and wire-color codes, especially on the full wiring diagrams.
The download contains one printable English-language PDF with 797 pages. The total includes five front covers, three back covers, one catalog-label page, and nine blank or chapter-header-only pages.
Powerhead, Gearcase, and Electrical Service
This selection also includes thermostat inspection and ignition timing checks.
-
Fuel system: Carburetor and fuel-pump disassembly, float-height checks, fuel-joint testing, and electrothermal enrichment-valve inspection on the four-stroke models.
-
Power unit: Powerhead removal, crankshaft and piston inspection, two-stroke reed-valve service, and four-stroke cylinder-head, valve, camshaft, and oil-pump service.
-
Lower unit: Step-by-step gearcase shimming and backlash measurement, plus water-pump impeller replacement, propeller-shaft and dog-clutch inspection, and drive-shaft and shift-rod service.
-
Bracket and controls: Steering-handle and shift-lever service, clamp and swivel brackets, bottom cowling, upper case, exhaust manifold, and rubber-mount inspection.
-
Electrical diagnosis: CDI peak-voltage tests, starter-motor disassembly, charging-system and rectifier checks, and four-stroke oil-pressure warning-circuit diagnosis.
-

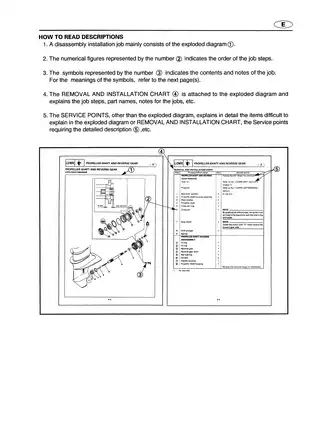

Workshop references: Maintenance interval charts, exploded assembly views, removal and installation charts, tightening-torque tables, and symptom-based trouble-analysis charts.

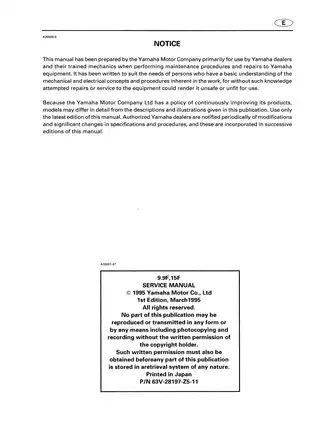

Yamaha wrote these manuals primarily for its dealers and trained mechanics who already understand mechanical and electrical service procedures.
Carburetor and Enrichment Service
Fuel-system inspection covers the carburetor body, needle valve, jets, float, and pump diaphragms. The four-stroke manuals also show how to test electrothermal-valve resistance and operation.
The T9.9W/F9.9W manual identifies fixed pilot screws on U.S. and Swiss models and gives adjustment procedures for other markets. The carburetor service notes warn that cleaning jets with steel wire can enlarge the openings and affect engine performance.
Two-Stroke and Four-Stroke Powerhead Repair
Two-stroke coverage includes crankcase separation, cylinder measurement, crankshaft runout, piston-ring inspection, and reed-valve checks. The 9.9U/15U small-end bearing uses 25 needles per piston, and Yamaha lists needle installer YB-06104 / 90890-06543.
The four-stroke manuals cover timing-belt installation, cold valve-clearance adjustment, valve-guide and seat work, and oil-pump inspection. Main-bearing selection uses crankcase markings and bearing colors, with Plastigauge checks for clearance. Incorrect piston positioning during cylinder-head installation can damage the valves.
Gearcase Shimming and Bracket Service
Pinion-height measurements and forward and reverse backlash checks help determine which shims are needed after gearcase or internal-part replacement. The manuals show different tool setups for U.S. and Canadian models and for other markets.
Exploded views and inspection points cover the propeller-shaft housing, gears, drive shaft, shift rod, and water pump. Bracket service covers throttle and shift cables, handle bushings, rubber mounts, and the steering and swivel assemblies.
Ignition, Charging, and Fault Tracing
The ignition, starting, and charging diagrams identify wire colors, switches, and connectors alongside the relevant tests. Four-stroke diagrams show the oil-pressure switch and indicator lamp, and the enrichment diagnosis covers the valve-heater coil and electrothermal valve.
Starter-motor service includes armature, commutator, brush, and pinion checks. The trouble-analysis charts direct technicians from symptoms such as no start, rough idle, hard shifting, or poor charging to the relevant system and chapter. The service sections also cover precautions for high-voltage ignition testing and the tensioned recoil-starter spring.
A Preview of Powerhead Limits and Gearcase Test Data
For the 9.9U/15U two-stroke models, the cylinder-head warpage limit is 0.1 mm. The installed end-gap limit for both the top and second piston rings is 0.55 mm.
The 9.9 reed-valve stopper height is 1.3 ± 0.1 mm for Europe and 0.7 ± 0.1 mm for other markets. The 15 specification is 6.0 ± 0.1 mm. The lower-unit leakage check specifies 100 kPa held for 10 seconds.
