2006-2009 Yamaha Rhino 450 / YXR45F Service Manual

Complete repair and maintenance guide for Yamaha Rhino 450 (YXR45F) UTVs. Covers engine, chassis, electrical, and more. Part # EB500008.

5.0starstarstarstarstar(1)
visibility Preview Available
Yamaha 2006-2009 Yamaha Rhino 450 / YXR45F Service Manual manual page preview - page 1 of 462

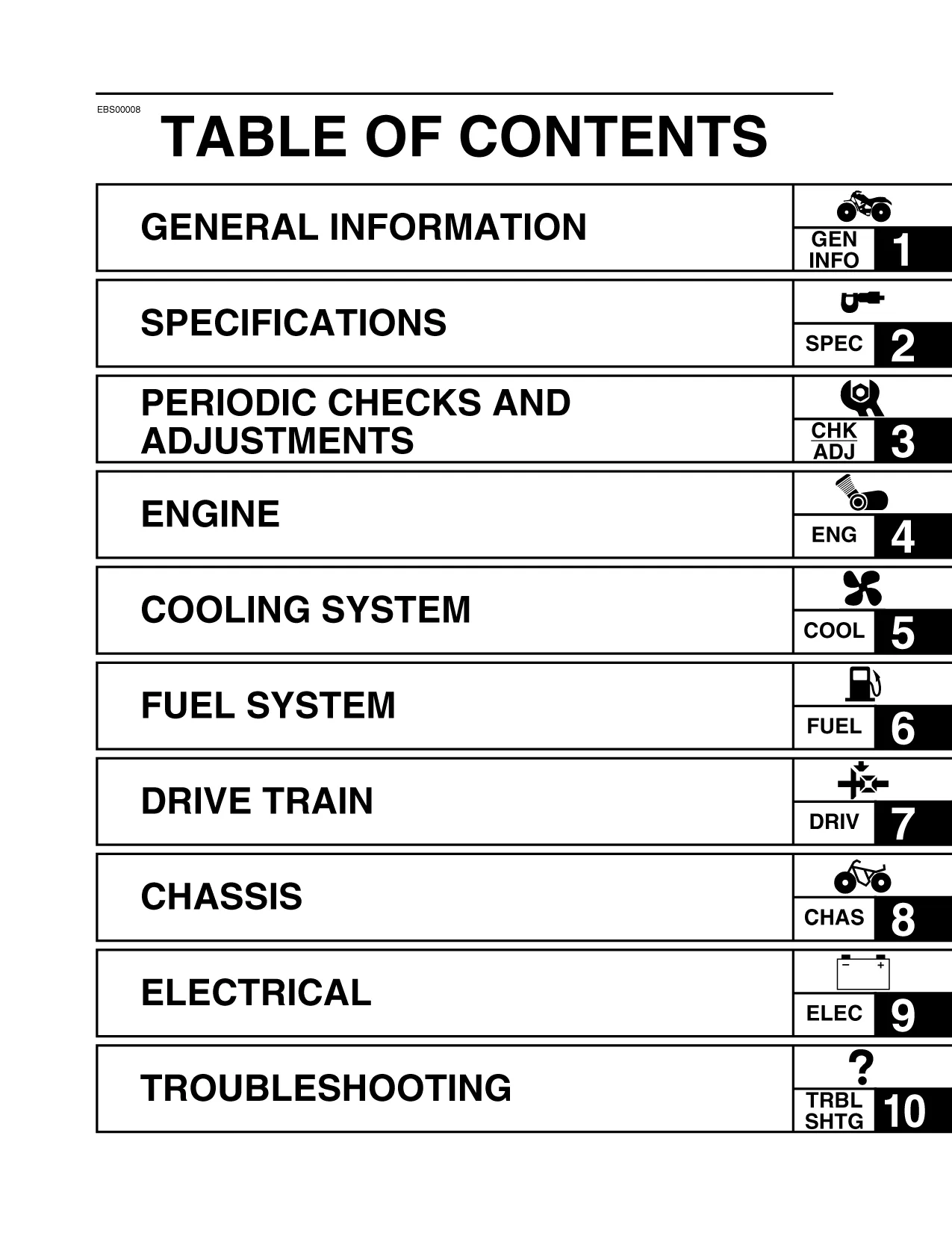

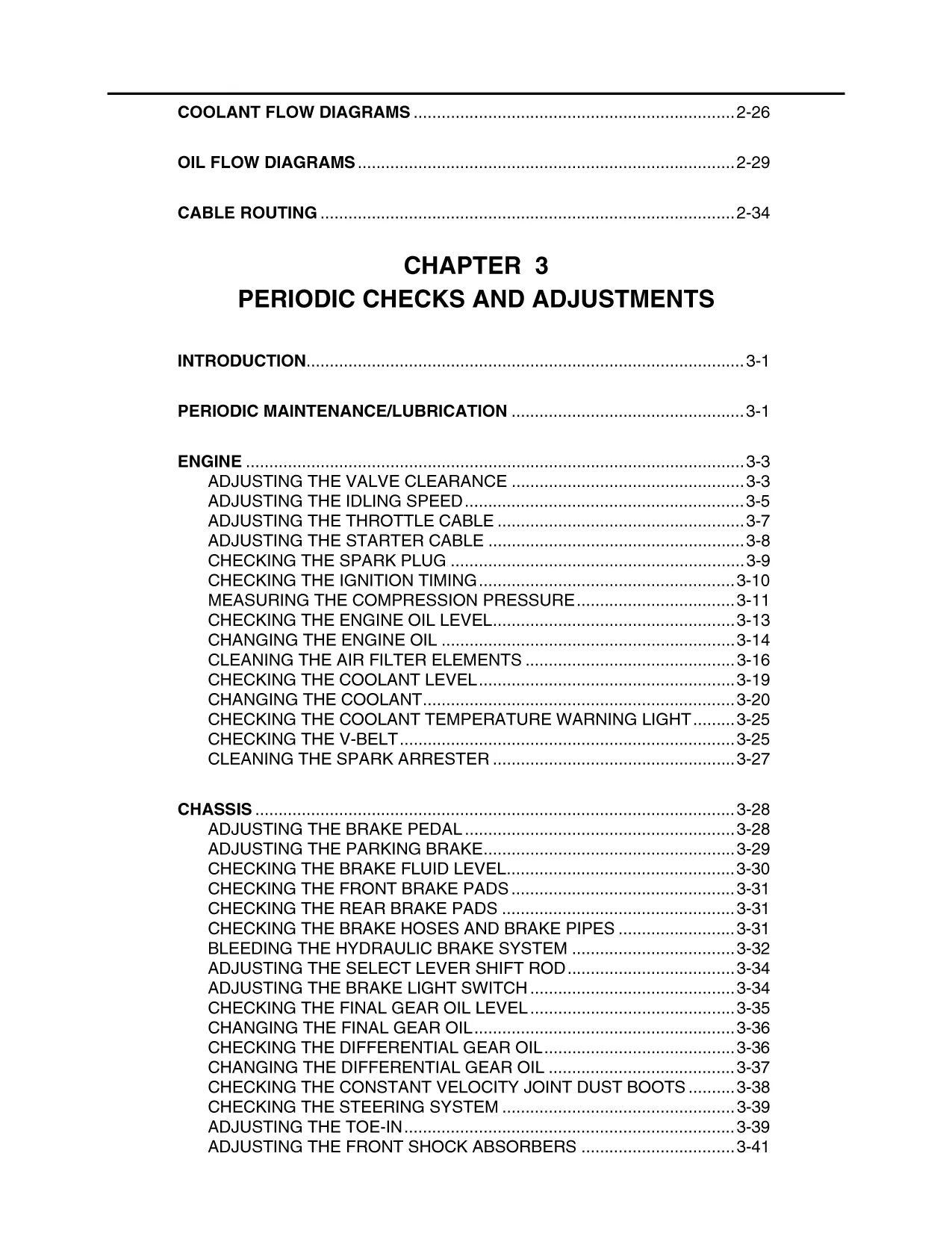

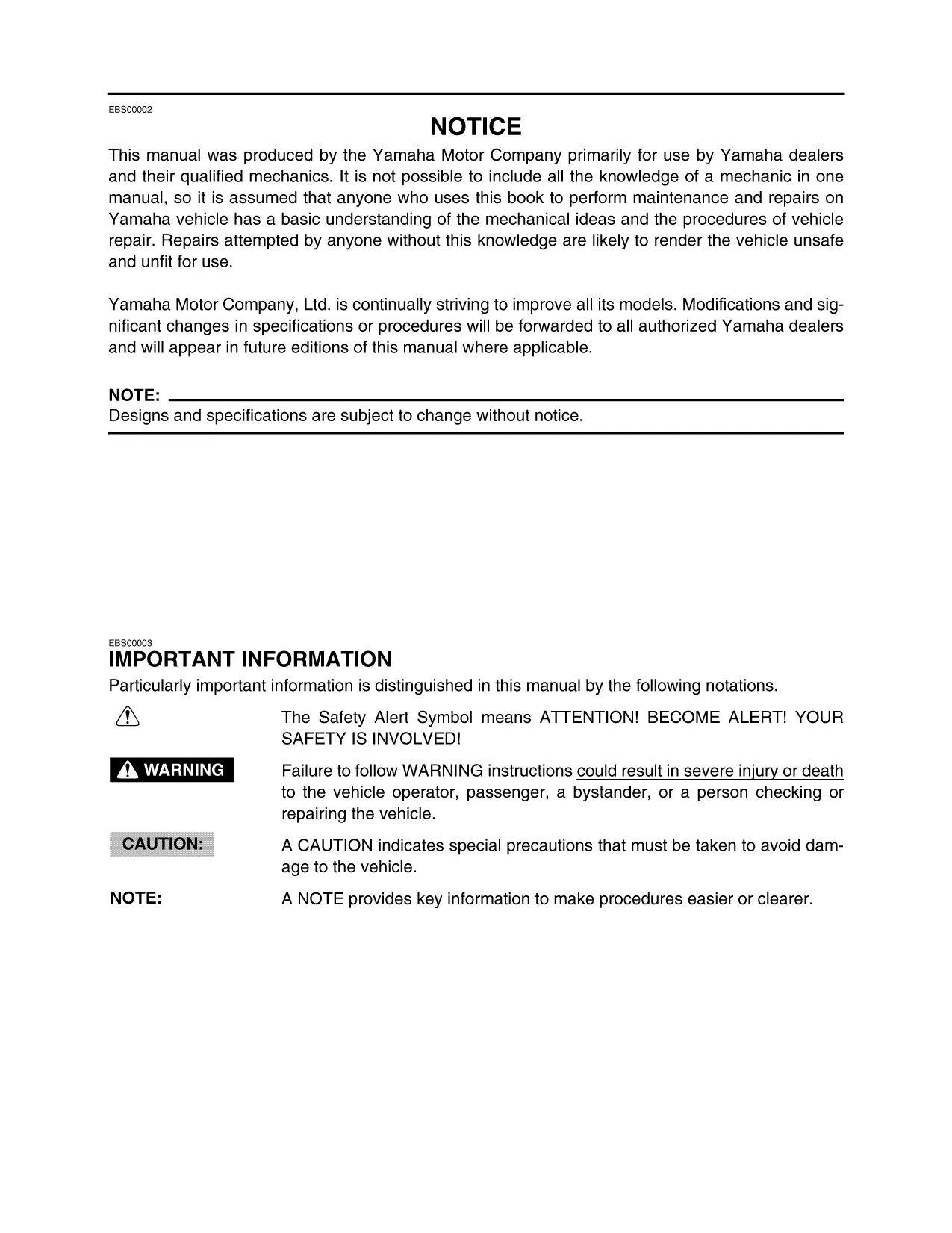

Sample pages from the 2006-2009 Yamaha Rhino 450 / YXR45F Service Manual manual

Yamaha 2006-2009 Yamaha Rhino 450 / YXR45F Service Manual manual preview page 2 - thumbnail
Yamaha 2006-2009 Yamaha Rhino 450 / YXR45F Service Manual manual preview page 4 - thumbnail
Yamaha 2006-2009 Yamaha Rhino 450 / YXR45F Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.53 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha Rhino 450, YXR45F
Sub-models / Variants: USA, CDN, Europe, 2WD, 4WD
Build Years: 2006–2009
Technical Data:

  • Engine displacement: 421 cm3
  • Engine type: Liquid-cooled 4-stroke, SOHC, forward-inclined single cylinder
  • Transmission type: V-belt automatic
  • Final drive: Shaft drive
  • Starter motor output: 0.8 kW
  • Battery capacity: 12 V, 28 Ah
  • Standard compression pressure: 1,270 kPa (180.6 psi) at 700 r/min
  • Brake system: Front and rear unified, dual disc front, single disc rear
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27498 / Walter Edwards
File Size:
21.10 MB
File Type:
PDF
Language:
English
Pages:
462
Printable:
Yes
Category:
Motorbike
Last updated / verified
Jun 27, 2025

Yamaha Manual Features & Content Preview

Yamaha Rhino 450 2006–2009 — Factory Service Publication

  • Covers 2006–2009 Yamaha Rhino 450 and YXR45F variants for the US, Canada, and European markets, including detailed specifications for SOHC liquid-cooled single-cylinder configurations
  • Official Yamaha publication P/N EBS00008, 2006 edition
  • Contains 462 pages of technical schematics, lubrication charts, electrical diagrams, and torque specification tables
  • File delivered as a direct download the moment payment clears
  • Stored against your account so you can retrieve it after a hard-drive loss
  • Full-text search finds any part number in seconds
  • Laid out for standard letter and A4 printing
  • This 2006–2009 manual serves as the primary technical reference for the YXR45F series drivetrain and chassis adjustments

Technical Documentation Scope

The 462-page manual provides detailed technical breakdown for the Yamaha Rhino 450 across all major systems. General information chapters define unit identification and maintenance procedures, while the specifications section details torque values, clearances, and capacities. Separate chapters organize the engine, cooling system, fuel system, drive train, chassis, and electrical architecture, with dedicated sections for periodic adjustments such as valve clearances and belt wear limits.

Specification Highlights

The Yamaha Rhino 450 engine displacement is officially rated at 421 cm3. Starter motor output for the 2006–2009 power unit is documented at 0.8 kW. Ignition timing is specified at 5° BTDC at 1,500 r/min. Electrical resistance checks for the pickup coil require 459–561 ohms at an ambient temperature of 20°C (68°F). The factory workshop documentation is structured to assist technicians with precise maintenance, including the standard compression pressure of 1,270 kPa at 700 r/min. Note: This page is a contents overview for the manual; it does not provide repair or diagnostic instructions. An official 462-page Yamaha OEM service manual covering the 2006–2009 Rhino 450, documenting engine, chassis, electrical, and fuel-system specifications for the YXR45F build.

Manual FAQ, Purchase & Download Details

Does this manual cover the Yamaha Rhino 450 system components in enough detail for a comprehensive reference? keyboard_arrow_down

Document contains 462 pages covering systems including the engine, chassis, drive train, and electrical components. It includes exploded views, tightening torque specifications, and system diagrams to serve as a detailed reference for these machine areas.

What specific document edition or publication cues are included in this service manual? keyboard_arrow_down

Manual references publication code EBS00008 and includes system-specific symbol keys and tables of contents that identify its scope for 2006-2009 models.

Which technical reference tables, charts, or electrical data summaries appear in this service manual? keyboard_arrow_down

Specifications chapter includes tables for engine, chassis, and electrical reference values. Additionally, the document lists lubricant types, conversion tables, and tightening torque specifications. These sections provide data categories useful for understanding the machine without serving as a guide for repair activities.

Can this PDF provide information on the wiring and electrical system sections for the Rhino 450? keyboard_arrow_down

Electrical chapter contains circuit diagrams, switch continuity references, and system-specific troubleshooting charts for the ignition, starting, and charging systems.
