2003 Komatsu PC75UU-3 Mini Excavator Shop Manual (P/N SEBM016404)

Official Komatsu shop manual (P/N SEBM016404, July 2003) covering PC75UU-3 mini excavators from serial number 15001 and up, including cab and canopy variants.

• Engine testing: Valve-clearance, compression, and blow-by checks, fuel-injection timing, engine stop-solenoid adjustment, and removal and installation of engine-related assemblies.

• Hydraulic diagnosis: Pump-control testing, hydraulic drift and leakage checks, PPC and EPC pressure measurements, travel-deviation diagnosis, and hydraulic-system air bleeding.

• Component repair: Disassembly and assembly procedures for the control valve, center swivel joint, PPC valves, swing machinery, and hydraulic cylinders.

• Drive and undercarriage: Travel motor and swing motor removal, track-shoe tension adjustment, and disassembly and assembly of idlers, recoil springs, and rollers.

• Electrical troubleshooting: Four system and Monitor system diagnostics, connector identification, wiring diagrams, and electrical input/output reset procedures for work-equipment controls.

• Maintenance standards: Component-specific inspection limits, wear criteria, spring specifications, pin-and-bushing clearances, and hydraulic and electrical performance tables support repair assessment.

The hydraulic testing, electrical diagnosis, and component lifting procedures make this manual suited to experienced equipment technicians with appropriate test instruments and workshop lifting equipment.

Engine and Serial-Number Coverage

The general and component sections distinguish the 4D102-1 installation at serial numbers 15001–19000 from the 4D95LE-2 installation at 19001 and up. Main-pump references change from LPV90-SAR(2)32 to LPV90-SAR(2)27 across the same serial break.

Engine coverage includes fuel-injection pump, water pump, thermostat, and cylinder-head removal and installation. Radiator/oil cooler drawings and optional air conditioner piping layouts document the cooling-system connections.

Komatsu directs readers to separate 102 Series and 95-2 Series Engine Shop Manuals for detailed engine work; those publications are not included. The stop-solenoid linkage section warns that incorrect clearance can burn out the solenoid.

Hydraulic Systems and Component Repair

This workshop manual breaks down the power train layout, swing machinery, and undercarriage configuration. The Closed center Load Sensing System (CLSS) documentation explains pressure compensation and travel junction circuits, while the self-pressure reducing valve section covers pilot pressure for PPC and solenoid controls.

Hydraulic drift testing uses cylinder-leakage measurements to distinguish a cylinder fault from control-valve leakage. That helps narrow down which component needs repair when the boom, arm, bucket, or offset cylinder drifts.

Main-pump procedures cover removal, installation, and input-shaft oil-seal replacement; a full internal pump overhaul procedure is not included. Control-valve section views and hydraulic-cylinder exploded views accompany the component disassembly and assembly coverage.

Center swivel joint reassembly notes warn of damage to slipper-seal and oil-seal lips during rotor installation.

Four System and Electrical Diagnosis

The Four system documentation covers interference prevention, digging-depth measurement, offset positioning, and automatic height/depth stopping. Reset flowcharts address work following controller, potentiometer, or work-equipment replacement; the monoboom specification does not provide height mode.

Controller signal tables and an engine-control circuit diagram connect fault symptoms with electrical tests. Hydraulic circuit sheets distinguish standard, service-valve, slide-arm, and monoboom layouts; electrical sheets cover standard and long-arm specifications.

Engineering Specifications and Reference Data

The technical data includes weight tables for the revolving frame, counterweight, and boom components. Fluid capacities for the engine oil pan, hydraulic system, and cooling system appear alongside charts for ambient temperature and lubricant requirements.

Cylinder specifications for the boom, arm, and bucket cover bore diameters, stroke lengths, and pin-to-pin distances. Testing and adjusting sections identify pressure checks separately for work equipment, travel, swing, and blade circuits.

The special-tool tables identify a differential-pressure gauge (799-401-2701) and T-adapter box (799-601-2600), with application information for hydraulic testing and electrical diagnosis.

Before beginning a repair, follow the manual's precautions for raised work equipment, trapped hydraulic pressure, and lifting heavy assemblies.

PDF Navigation and Diagram Readability

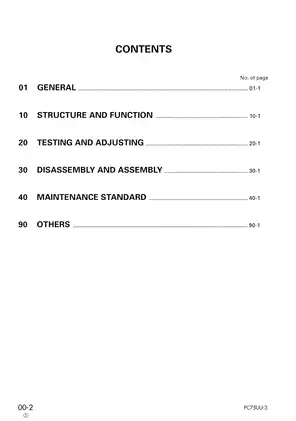

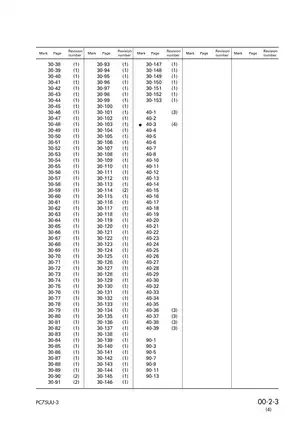

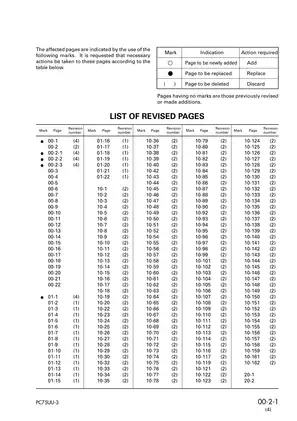

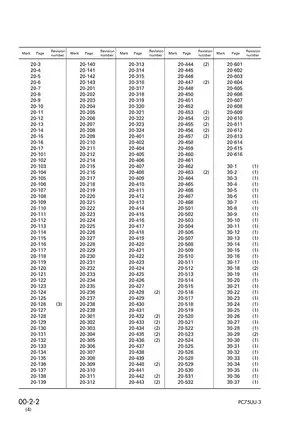

Pages 00-3 through 00-22 listed in the revision index are absent from this file.

This printable English PDF contains 620 pages, including the cover, three revision-index pages, eight blank pages, and six final circuit-diagram sheets. Text search works on much of the file, but 13 content pages—including the final diagrams—have no searchable text; embedded bookmarks link to chapters and procedures, while the MAIN MENU link requires a separate file. Small wiring labels need zooming, and some densely packed controller labels remain difficult to read.
