New Holland TC55DA EHSS Tractor Parts Catalog Collection (2003-onwards)
1,155 Pages • 1 Printable PDF (English) • Download
New Holland Models Covered & Key Technical Specifications
Model: TC55DA EHSS
Model Years: 2003–onwards
-
Steering pump capacity: 8.8 cc
-
Transmission type: EHSS
-
Drive system: FWD (Front Wheel Drive)
New Holland Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| TC55DA EHSS Compact Tractor parts catalog, indexed “7/03-” | 150 |
| 716C rear-mount snow blower parts catalog | 66 |
| 716D front-mount snow blower parts catalog | 27 |
| Ford 756B backhoe parts catalog | 37 |
| 756C backhoe parts catalog | 44 |
| Ford 757B backhoe parts catalog | 37 |
| 757C backhoe parts catalog | 51 |
| Ford 758B backhoe parts catalog | 37 |
| 758C backhoe parts catalog | 53 |
| 759C backhoe parts catalog | 49 |
| Ford 914 72-inch mid-mount mower parts catalog | 35 |
| 914A 60-inch mid-mount mower, 716418001 | 18 |
| 914A 72-inch mid-mount mower, 716419001 | 18 |
| 914A 60-inch mid-mount mower, 716418016 | 18 |
| 914A 54-inch mid-mount mower, 716416001 | 16 |
| 914A 60-inch mid-mount mower, 716417001 | 16 |
| 914A 84-inch rear-discharge mower, 716733006 | 32 |
| Ford 7106 quick-attach loader parts catalog | 23 |
| 7109 farm loader parts catalog | 20 |
| 7308 farm loader parts catalog | 22 |
| 7309 quick-attach farm loader parts catalog | 72 |
| Hydraulic spout-flipper control kit, headed 716863006; three identical copies | 9 (3 × 3) |
| 16LA farm loader parts catalog | 25 |
| 17LA farm loader parts catalog | 25 |
| 105A rear-mount tiller, headed 9606004; three identical copies | 42 (3 × 14) |
| 105A rear-mount tiller, headed 9862872 | 14 |
| 702C front blade parts catalog | 29 |
| 716B front-mount snow blower parts catalog | 152 |
| Parts abbreviations in English, French and Spanish | 14 |
| Metric and inch hardware conversion notes | 2 |
Use the tractor catalog for tractor components and the equipment catalogs for their own assemblies and mounting packages. Exploded views connect individual components with part numbers, quantities, repair kits and application notes, helping identify the parts needed before a repair begins.
Equipment fitment: Inclusion in this collection does not establish compatibility with a TC55DA. Match the tractor models, component numbers and application notes in the relevant equipment table. These are parts catalogs; repair procedures require separate service information.
Text Search, Catalog Bookmarks and Drawing Detail
Search and navigation: Parts tables and figure headings are searchable; lettering embedded in drawing images is not. Embedded bookmarks reach catalog sections, although some attachment bookmark names differ from the actual page headings. Small labels in the tractor electrical parts layout require zooming and remain coarse.

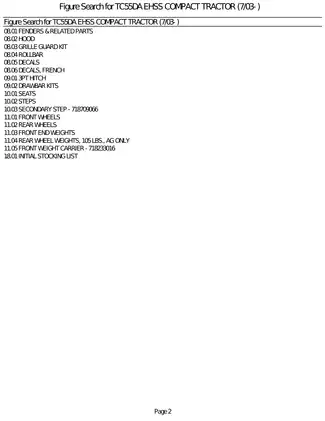

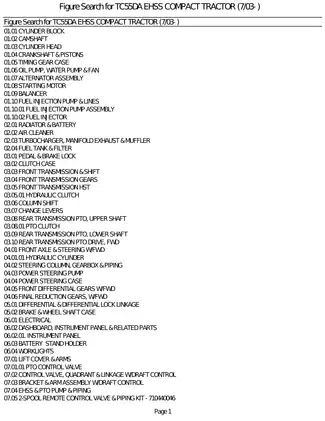

The download is one printable English-language PDF with 1,155 pages, including one introductory page and one figure-search instruction page. The catalog page counts above already include 32 blank divider pages.
Tractor Assemblies and Equipment Parts Identification
The following selected catalog contents outline the main assembly groups. Other illustrated sections include the grille-guard kit and secondary-step assembly.
-
Engine parts: Cylinder block, cylinder head, crankshaft and pistons, fuel-injection pump and injectors, turbocharger, and related component tables.
-
Transmission and PTO: Front-transmission gearing, the figure labeled Front Transmission HST, hydraulic clutch, PTO clutch, and rear PTO drive components.
-
Axles, steering and brakes: FWD front axle, steering cylinder and gearbox, power-steering pump and case, differentials, final drives, and brake assemblies.
-
Hydraulics and rear equipment: Lift cover, PTO control valve, draft-control linkage, EHSS/PTO pump and piping, three-point hitch, and remote-control valve components.
-
Electrical parts: Main, rear, headlight and EHSS harnesses; safety switches, control blocks, instrument-panel components, worklights, alternator and starter assemblies.
-
Equipment catalogs: Mounting packages, hydraulic kits, cylinders, drivelines and working components for the separately listed loaders, backhoes, snow blowers, mowers, tillers and blade.
This PDF is suited to repair shops, parts departments, and experienced owners who can identify assemblies from exploded figures and parts tables before a repair begins.
TC55DA Engine, Clutch and PTO Parts
The tractor index contains 65 illustrated-parts figures. Beyond the main engine assemblies, the catalog identifies the camshaft, timing gear case, balancer, lubrication and cooling pumps, intake and exhaust components, muffler, fuel tank and filter, radiator, battery, and air cleaner.

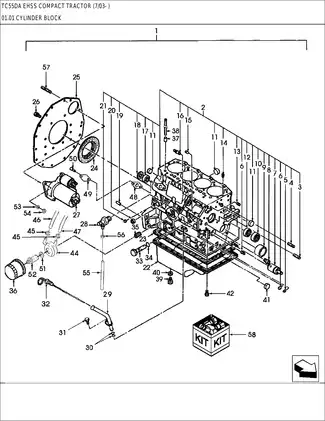

Assembly contents: The Cylinder Block breakdown distinguishes long-block components from items supplied separately. The cylinder-head table lists alternative head-gasket thicknesses, while the hydraulic-clutch table separates inner and outer separator plates.
Powertrain indexing follows the clutch case, front-transmission shift mechanism, column shift, change levers, and upper and lower rear-transmission PTO shafts. Front Transmission HST is the catalog’s figure title within the EHSS tractor section.
Steering, Hydraulics and Parts Availability
Front Differential Gears W/FWD and EHSS & PTO Pump & Piping provide keyed assembly views and corresponding parts tables. Hydraulic-cylinder and power-steering-case listings distinguish repair or seal kits from components marked “not serviced separately.”
Rear-equipment figures identify the lift-cover assembly, draft-control quadrant and linkage, drawbar kits, and two-spool remote-control valve and piping kit. The drawbar table also identifies the required stay kit for the linkage drawbar.
The initial stocking list separates preventive-maintenance parts from components commonly required for basic repair. It provides a parts-planning reference rather than maintenance instructions.
Backhoe, Loader and Implement Components
Backhoes: The catalogs distinguish subframes, mounting adapters, swing posts, booms, dippersticks, buckets, stabilizers and cylinder repair kits. Gresen V-10 valve breakdowns identify individual valve sections, cartridges and seals.
Loaders: Parts coverage includes hydraulic plumbing, self-leveling valves, lift and bucket cylinders, quick-attach devices, forks, bale spears, buckets and third-function hose kits. Mounting packages have their own tractor applications.
Snow blowers: Front- and rear-mount catalogs distinguish PTO configurations, gearboxes, reduction boxes, drivelines, chute rotators, deflector kits and quick hitches. The 716B front-mount figures separately identify SuperSteer and non-SuperSteer axle applications.
Mower, tiller and blade catalogs provide illustrated breakdowns for decks, blades, spindles, gearboxes, drivelines, lift linkage, tines, hydraulic cylinders and mounting components. Serial-break notes apply to the particular assembly or application named in each table.
Parts Selection and Repair Scope
The hardware-conversion notes exclude mixing metric and inch threads; forcing a mismatched nut or bolt can damage the threads.
This collection does not provide removal sequences, overhaul instructions, torque tables, valve-clearance procedures, hydraulic pressure tests, calibration steps, troubleshooting charts, connector pinouts or electrical wiring diagrams. Dimensions, hardware grades and valve ratings in part descriptions are identification data rather than service specifications.
Before repair work involving raised loaders, backhoes, snow blowers, stored hydraulic pressure, or PTO drivelines, use the correct service instructions and properly secure and isolate the machine. Those safety and repair procedures are outside the scope of this illustrated parts catalog.
Selected Spout-Flipper Hose-Kit Dimensions
The spout-flipper table distinguishes LF418406, a 3/8-inch × 138-inch hose kit for 716863006, from LF418404, a 3/8-inch × 150-inch hose kit for 716864006.
The 716865006 application instead lists LF418403 at 3/8 inch × 186 inches. These are catalog dimensions for matching hose-kit variants, rather than hydraulic test values or service limits.
