New Holland TN95F Orchard Tractor 2001-2024 Parts Catalog Manual

The comprehensive parts manual for the New Holland TN95F Orchard Tractor, covering model variants from 2001 to present. Access detailed diagrams and part numbers for all assemblies.

5.0starstarstarstarstar(1)
New Holland Tractor manual preview - New Holland TN95F Orchard Tractor 2001-2024 Parts Catalog Manual
$17.30 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

New Holland Models Covered & Key Technical Specifications

Models: New Holland TN95F Orchard Tractor
Sub-models / Variants: TN95F, TN80F, TN70F, W/CAB, L/CAB, NA ONLY
Build Years: 2001–present
Technical Data:

  • Pto shaft configuration: 540/750 RPM
  • Wheel sizes: 16", 18", 20", 24", 28"
  • System calibration: 10 units at 1.82.C mapping
  • Main reduction unit throughput: 1.92.B parameters
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27606 / Jerry Brown
File Size:
28.09 MB
File Type:
PDF
Language:
English
Pages:
2077
Printable:
Yes
Category:
Tractor
Last updated / verified
Jan 4, 2025

New Holland Manual Features & Content Preview

Inside the New Holland TN95F Parts Catalog

  • Covers the 2001–present New Holland TN95F Orchard Tractor, including specialized variants like the TN70F, TN80F, and multiple cab or tractor-only configurations.
  • Official OEM publication parts catalog, first edition 11-01.

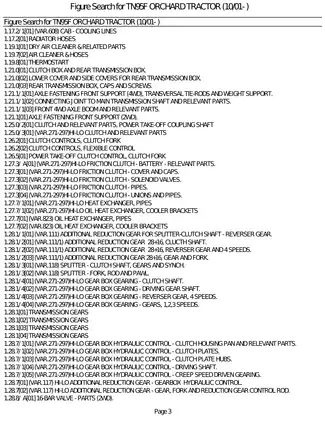

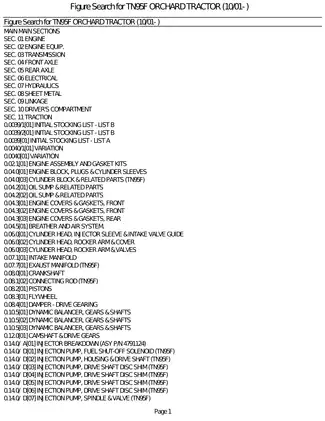

  • Contains over 2,000 pages of exploded-view diagrams detailing engine, transmission, front/rear axle, electrical, hydraulic, and sheet metal assemblies.
  • Accessible from your device as soon as the order is placed.
  • Laid out for standard letter and A4 printing.
  • Full-text search finds any part number in seconds.
  • This illustrated reference is the standard identification tool used for identifying components and assemblies across the New Holland TN95F, TN80F, and TN70F series.

Component Documentation

This 2077-page New Holland TN95F parts manual serves as an exhaustive technical directory for internal and external components. The document breaks down every system, beginning with engine internals like cylinder blocks, pistons, and fuel injection systems, through to drivetrain segments including the transmission, differential gears, and power take-off units. Dedicated sections map out hydraulic valve sections, steering components, and cab trim levels to assist in precise part identification.

Assembly and Specification Data

Each technical segment links complex assemblies to their specific reference part numbers, quantities, and descriptions, organized for efficient lookup by serial or variant code. The catalog provides technical parameters such as the PTO shaft configuration at 540/750 RPM and wheel rim support data for 16" through 28" tire options. Reference what an OEM service publication covers to understand how the factory structures component breakdowns for orchard-specific tractors. This comprehensive reference is the essential document for owners and technicians managing the 2001–present New Holland TN95F, documenting internal engine parts, chassis systems, and cabin equipment for the full series build.

Manual FAQ, Purchase & Download Details

Which engine components or systems have parts listed in the specification and section breakdown? keyboard_arrow_down

Catalog includes chapters for the engine and engine equipment that cover assemblies such as cylinder blocks, crankshafts, injection pumps, and turbochargers. These sections show parts breakdowns that illustrate how individual components connect within the broader tractor assembly.

Are there wiring harness references and electrical component diagrams included for the tractor systems? keyboard_arrow_down

Manual lists electrical sections that contain parts illustrations for main harnesses, sensor components, and control modules.

Is there a comprehensive parts breakdown for the hydraulic lift and transmission systems? keyboard_arrow_down

Document contains exploded views and component illustrations for the transmission gears, hydraulic control valves, and lift assemblies. These diagrams help visualize how the internal parts are configured within the housing. Users can locate specific assemblies by referencing the figure list index provided at the start of the manual.

What is the primary document identifier and year coverage for this parts catalog? keyboard_arrow_down

Publication serves as the parts catalog manual for the New Holland TN95F Orchard Tractor covering models produced from 2001 to the present.

Customer Reviews

Read what our customers say about this New Holland Tractor manual and share your own experience.
