New Holland TS115 Emissionized Tractor 2001–2007 Parts Manual Collection

The tractor catalog identifies TS115 components, while the loader catalogs provide separate references for attachment assemblies and replacement parts. Loader mounting and plumbing kits are tractor-specific; inclusion in this collection does not mean every listed loader fits the TS115.

These are illustrated parts catalogs for selecting repair parts, not step-by-step service manuals. They do not supply transmission overhaul sequences, hydraulic adjustment procedures, or electrical fault-testing instructions.

PDF Search, Bookmarks and Page Breakdown

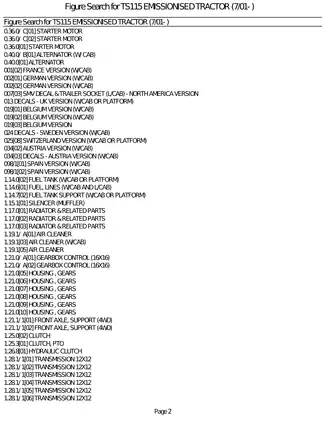

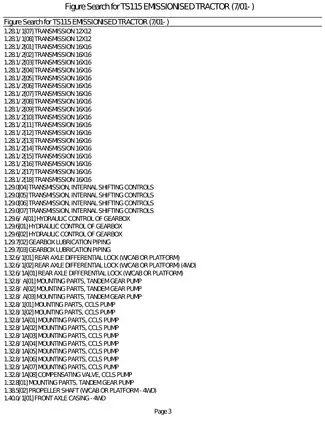

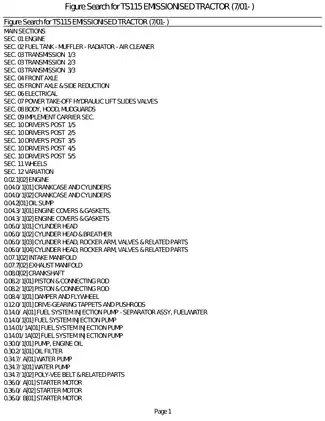

Finding figures and parts: Figure titles and parts lists support text search. Embedded bookmarks open the tractor and loader indexes, parts sections, and general references. Labels inside the illustrated harness layouts are image-based; small labels in the reviewed drawings are readable when enlarged.

One printable PDF contains 2,237 pages: 2,209 catalog pages listed above and 28 additional pages. Those additional pages comprise one front page, one figure-search guide, 14 abbreviation-reference pages, two hardware-conversion pages, and 10 blank separator pages; all are included in the total.

Tractor Drivetrain, Hydraulic and Loader Parts

The following selected catalog topics show the main assembly coverage rather than the full contents. Further entries include wheel configurations and towing-hitch components.

• Engine and fuel system: Exploded views and component lists identify the engine block, cylinder head, crankshaft, pistons, injection equipment, filters, and cooling-system parts.

• Transmission and final drive: Separate illustrations cover 12x12, 16x16, creeper, and 24x24 Dual Power assemblies, including gear housings, internal shifting controls, bearings, and shafts.

• Steering and brakes: Parts references cover the 4WD front axle, servo-assisted steering cylinders, final-drive assemblies, parking brake, and pedal controls.

• Hydraulics and PTO: Listings distinguish tandem and CCLS pumps, hydraulic lift components, Electronic Draft Control, remote valves, and independent PTO clutch assemblies.

• Electrical components: Connector illustrations, labeled harness layouts, starter and alternator breakdowns, battery cables, lighting, and instrument components support replacement-part identification.

• Cab and operator controls: Assembly views identify cab structures, doors, glazing, seats, steering columns, heating, and air-conditioning components.

• Loader assemblies: Illustrated lists cover frames, mounting kits, lift and bucket cylinders, control valves, hydraulic plumbing, quick-attach devices, and bucket components.

Suited to mechanics, parts staff, and experienced owners who can match exploded-view reference numbers to the equipment’s actual configuration.

Parts Selection by Build and Assembly

The paired drawings and component lists help identify hardware and assembly relationships before replacement parts are ordered. Engine entries distinguish emissionized fuel-system components and offer standard and undersize bearing selections.

Starter compatibility: The Bosch and Iskra starter listings explicitly distinguish interchangeable complete starters from internal components that are not interchangeable. Matching only the complete starter application is therefore insufficient when selecting internal repair parts.

The hydraulic references separate tandem-pump and CCLS-pump applications. Some CCLS pump entries direct the reader to catalog 17462 for additional information, so the supplied breakdowns should not be treated as complete pump service documentation.

Reading the Assembly Illustrations

The Crankshaft and Transmission 12x12 illustrations connect numbered components to their parts lists; transmission drawings also use section insets to locate the illustrated assembly.

Electric Wiring Harness Connectors shows connector housings, while Harness, Main Extension 24x24 W/EDC labels switches, sensors, and solenoid connections along the harness. These are component-identification views rather than circuit-testing instructions.

Loader Cylinder and Valve Identification

Loader catalogs distinguish mounting arrangements, self-leveling equipment, and third-function hydraulic kits. The 32LA and 33LA notes specifically require matching the two-letter cylinder code when ordering lift or bucket cylinders.

Cylinder and valve breakdowns identify seal kits and indicate components that are not serviced separately. This distinction matters when deciding whether the required item is an individual part, a kit, or a complete assembly.

Consult a qualified technician before undertaking major service involving heavy assemblies or pressurized hydraulic components.

Selected Bearing and Transmission Washer Sizes

The crankshaft main-bearing list includes white undersize bearing kit 87790262 at .010 inch (.254 mm) undersize. This is a replacement-bearing size designation, not a wear limit.

The 16x16 transmission listing identifies washer F0NN7C343AA at 5.25 mm and F0NN7C343EA at 6.25 mm. These are cataloged component thicknesses, not instructions for setting transmission clearance.
