Ford 575D Tractor Loader Backhoe Parts Catalog 1993–1996

Illustrated parts catalog for the Ford 575D tractor loader backhoe, 1993–1996, with exploded assembly views, part numbers, quantities, and application notes. This catalog supports parts identification and repair planning; it does not provide diagnostic tests or step-by-step repair procedures.

PDF Search, Section Bookmarks, and Page Breakdown

Finding figures and parts: Text search covers the figure index, assembly headings, and parts descriptions. Embedded bookmarks open the main sections and reference appendices. Small callouts in dense hose and harness drawings require zooming; illustration callouts are not searchable text.

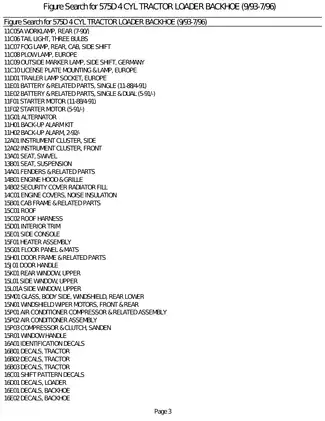

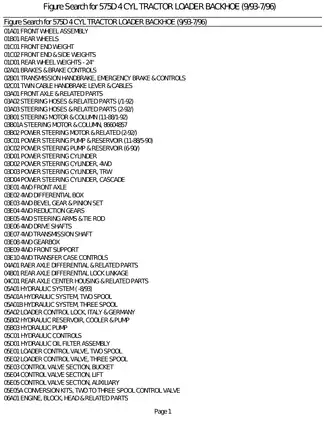

The single printable PDF contains 494 pages: 470 pages of parts illustrations and lists, a five-page figure index, a one-page figure-search guide, 16 pages of abbreviations and hardware conversions, one additional introductory page, and one blank page. All are included in the total.

Engine, Drivetrain, and Loader-Backhoe Parts

The following selected catalog contents show the main assembly coverage. Other illustrated entries include swivel and suspension seats, window hardware, and front and rear wiper components.

• Engine components: Block, cylinder head, crankshaft, valve gear, pistons, connecting rods, oil pump, turbocharger, and gasket-kit illustrations with corresponding parts lists.

• Fuel equipment: DPS rotary injection-pump breakdowns, fuel injectors, primer, sedimenter, filters, and injection-tube assemblies.

• Transmission and brakes: Clutch and input-shaft components, transmission gears, shuttle controls, rear differential-lock linkage, and handbrake assemblies.

• Steering and axles: Cessna, TRW, and Cascade steering-cylinder parts, plus front-wheel, spindle, 4WD differential, reduction-gear, and driveshaft assemblies.

• Hydraulic components: Pump, reservoir, cooler, filter, loader valve sections, and parts for conversion from two-spool to three-spool loader controls.

• Loader and backhoe: Center-pivot and side-shift assemblies, HED boom and dipstick components, hydraulic cylinders, stabilizers, and bucket parts.

• Electrical and cab equipment: Harness-placement views, starter and alternator breakdowns, heater components, and Sanden compressor-and-clutch parts.

Suited to mechanics and experienced owners who can match numbered illustrations and application notes to the assemblies fitted to their machine when planning parts orders.

Parts Matching Before Disassembly

Exploded-view assembly drawings and part-number cross-references support repair planning before disassembly. Numbered callouts connect individual seals, fasteners, and other components to their quantities and application notes.

Shared component tables also contain entries for other Ford models. Follow the model and configuration notes for each item rather than treating every listed part as a 575D application.

Drivetrain references: “Transmission Clutch & Input Shaft” (07F01) separates the clutch discs, drive plates, converter, and shaft components. Rear-axle listings distinguish shaft and housing applications associated with the change to cassette seals.

Engine bearing selection: The tables distinguish red and blue standard main/thrust-bearing kits, purple standard connecting-rod bearing entries, and separate turbo bearing applications. Color, size, and application notes belong together when identifying a replacement.

The hardware-conversion notes exclude tapped holes and mixed metric/inch threads from general interchangeability; treating those fasteners as interchangeable risks damaging the mating threads.

Hydraulic Valves and Cylinder Revisions

“Loader Control Valve, Two Spool” (05E01) and the three-spool section identify inlet, bucket, lift, outlet, and auxiliary components, with separate seal and relief-valve repair-kit entries.

Cylinder updates: “Bucket Cylinder” (18D02) distinguishes earlier seals from updated gland, piston, and repair-kit combinations. Replacement-cylinder notes also identify associated hose and tube changes, which matter when preparing a parts order.

Backhoe illustrations separate center-pivot and side-shift swing and stabilizer arrangements. HED dipstick drawings identify slide strips, shims, and related hardware.

When preparing for any major maintenance or component swap, always verify system pressure relief procedures to prevent fluid hazards.

Harness Layouts, Cooling, and Air Conditioning

“Electrical System, LH” and “Electrical System, RH” (11A01L/11A01R) show harness placement and component callouts rather than electrical circuit schematics.

Water-pump and radiator listings distinguish pulley, fan, and cooling-package applications. Cab sections cover heater blower components and air-conditioning assemblies.

“Compressor & Clutch, Sanden” (15P03) distinguishes R12 and R134 assemblies. Internal component listings apply to the R12 version; the R134 assembly is identified as having components that are not serviced separately.

Selected Rear-Axle Shim and Clutch-Disc Sizes

The rear-axle parts list includes separate shim sizes such as 0.049–0.050 in. and 0.089–0.090 in. These are cataloged part dimensions, not a continuous adjustment range.

Transmission clutch listings include 2.30 mm and 2.60 mm discs. These dimensions distinguish replacement parts; they are not installed-clearance targets or wear limits.
