Ford 675D 4 Cylinder Tractor Loader Backhoe Parts List Manual

This 492-page PDF illustrated parts catalog covers the Ford 675D 4-cylinder tractor loader backhoe for the September 1993 through July 1996 production range. It includes 2WD and 4WD components and separates regional, build-date, serial-break, and equipment variations throughout the parts tables. The material is best suited to technicians, parts-counter staff, and experienced owners who can identify the installed assembly and match it to a date or serial break before ordering repair parts.

• Axles, steering, and brakes: Exploded views cover 2WD and 4WD front wheels, front and rear weights, the 4WD front axle, differential box, bevel gear and pinion, reduction gears, drive shafts, gearbox, transfer-case controls, rear axle differential and lock linkage, brake controls, handbrake systems, steering motors, pumps, columns, and Cessna, TRW, Cascade, and 4WD steering cylinders.
• Engine and transmission: Parts plates break down the turbocharged block and head, crankshaft and flywheel, camshaft and valve train, pistons and connecting rods, oil pump and pan, exhaust and turbocharger assemblies, gasket kits, transmission case and valve body, clutch and input shaft, countershaft, reverse idler, output shaft, shift rails, shuttle controls, and oil-cooler circuit.
• Hydraulics and loader: Coverage includes two- and three-spool loader systems, the two-to-three-spool conversion kit, reservoir, combined hydraulic/transmission cooler, pump, filter, controls, bucket/lift/auxiliary valve sections, lift arms, hydraulic lines, cylinders, standard and multipurpose bucket assemblies, counterweight, and subframe.
• Backhoe configurations: The catalog separates center-pivot and sideshift main frames and swing posts, two-lever control systems, three- and four-lever conversion kits, HED/extendable dipper-stick controls, booms, dipper sticks, swing/crowd/stabilizer cylinders, control valves, stabilizer pads, and general-purpose and high-capacity buckets.
• Fuel, cooling, electrical, and cab equipment: Figure groups cover the DPS rotary fuel-injection pump, injectors, filters, primer and cold-start equipment; water pump, radiator, and water filter; left- and right-side electrical layouts; batteries, starter, alternator, lamps, alarms, instruments, cab/ROPS/platform structures, heater, and air conditioning.

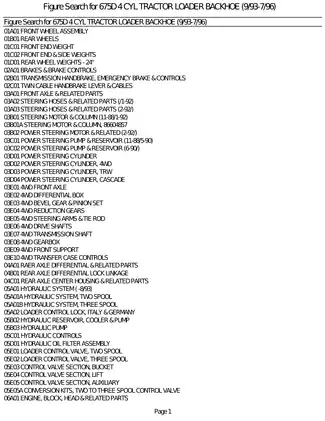

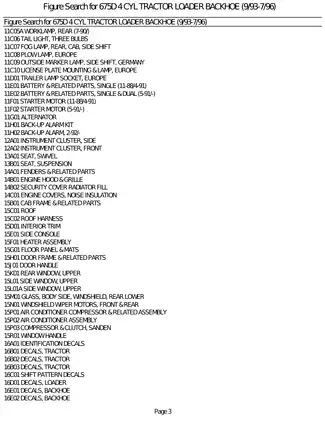

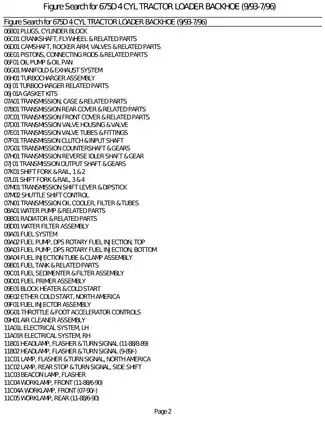

• Parts-identification support: 203 indexed figure entries pair exploded views with Ref/Part Number/Qty/Description tables. Cross-references identify related figures, repair and conversion kits, parts not serviced separately, supersessions, regional applications, service-bulletin callouts, and individual start/end dates.

Build-Date, Serial, and Regional Differences

Engine listings distinguish the European turbo assembly F2NN6007BCA from the North American BSD444TS. For the 675D short block, the table changes from E6NN6009AGC through March 31, 1994, to 87840506 beginning April 1, 1994. Other cataloged differences include single- and dual-battery installations; North American and European lighting and cold-start equipment; an Italy/Germany loader control lock; and HED control valves for Finland, Norway, and Sweden.

The weight figures identify front-end weight E7NN3A370AB, dated front/side-weight assemblies, and 24-inch rear-wheel weights, with the related mounting hardware listed by reference.

Two change points matter during hydraulic and axle repair. The 675D hydraulic pump calls for one-piece thrust-plate seal kit 85999111 through April 30, 1995, then two-piece kit 85999336 from May 1, 1995. Selecting the kit by appearance alone can leave incompatible sealing parts and risk leakage or pump damage. At rear-axle serial break A436528/A436529, the shaft, axle housing, and seal arrangement changes to a cassette-seal design; mixing parts across that break can create an incorrect seal stack and damage sealing surfaces during reassembly.

What Is Included - and What Is Not

Representative exploded plates include the 4WD differential, bevel gear/pinion, and reduction-gear views; the loader-control bucket, lift, and auxiliary valve sections; the engine block/head and rotating-group views; the transmission clutch/input-shaft and countershaft views; the DPS injection-pump top and bottom views; and the center-pivot/sideshift backhoe frames and controls. At the end of the file are a 14-page English/French/Spanish abbreviation glossary and a two-page common metric/inch hardware conversion reference.

This publication is for parts identification and repair planning. It does not provide removal and installation sequences, internal repair procedures, diagnostic tests, hydraulic pressure-testing instructions, torque tables, fluid capacities, electrical wiring diagrams, or calibration data. Its service-bulletin references are callouts only; the bulletins themselves are not included. The tool section lists a general European machine tool kit rather than special factory service tools.

Use the applicable service manual for actual repair procedures. Before opening hydraulic circuits or working around cast weights and loader/backhoe structures, relieve stored pressure and use properly rated lifting and support equipment.
