2001 Yamaha XR1800 Service Manual (P/N LIT-18616-02-25)

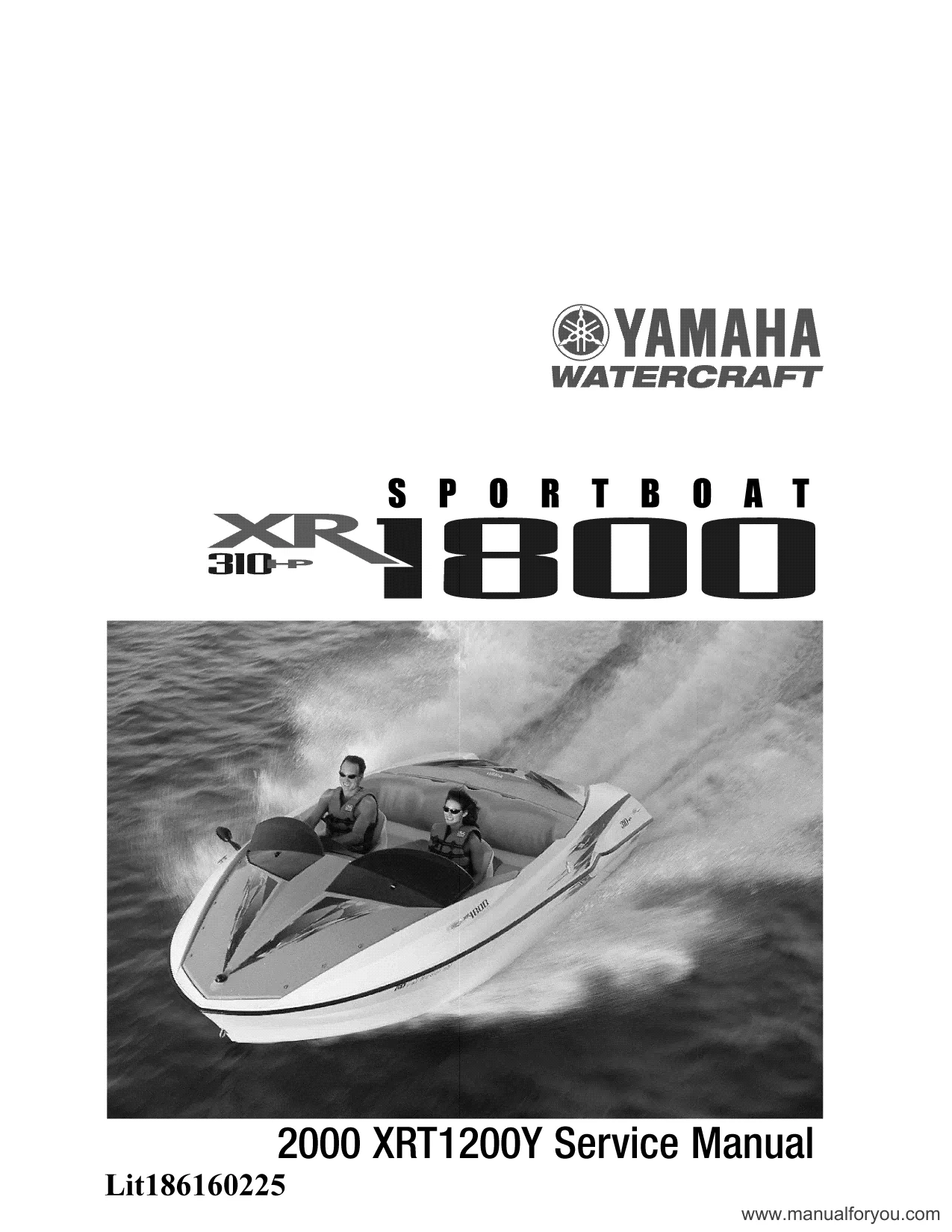

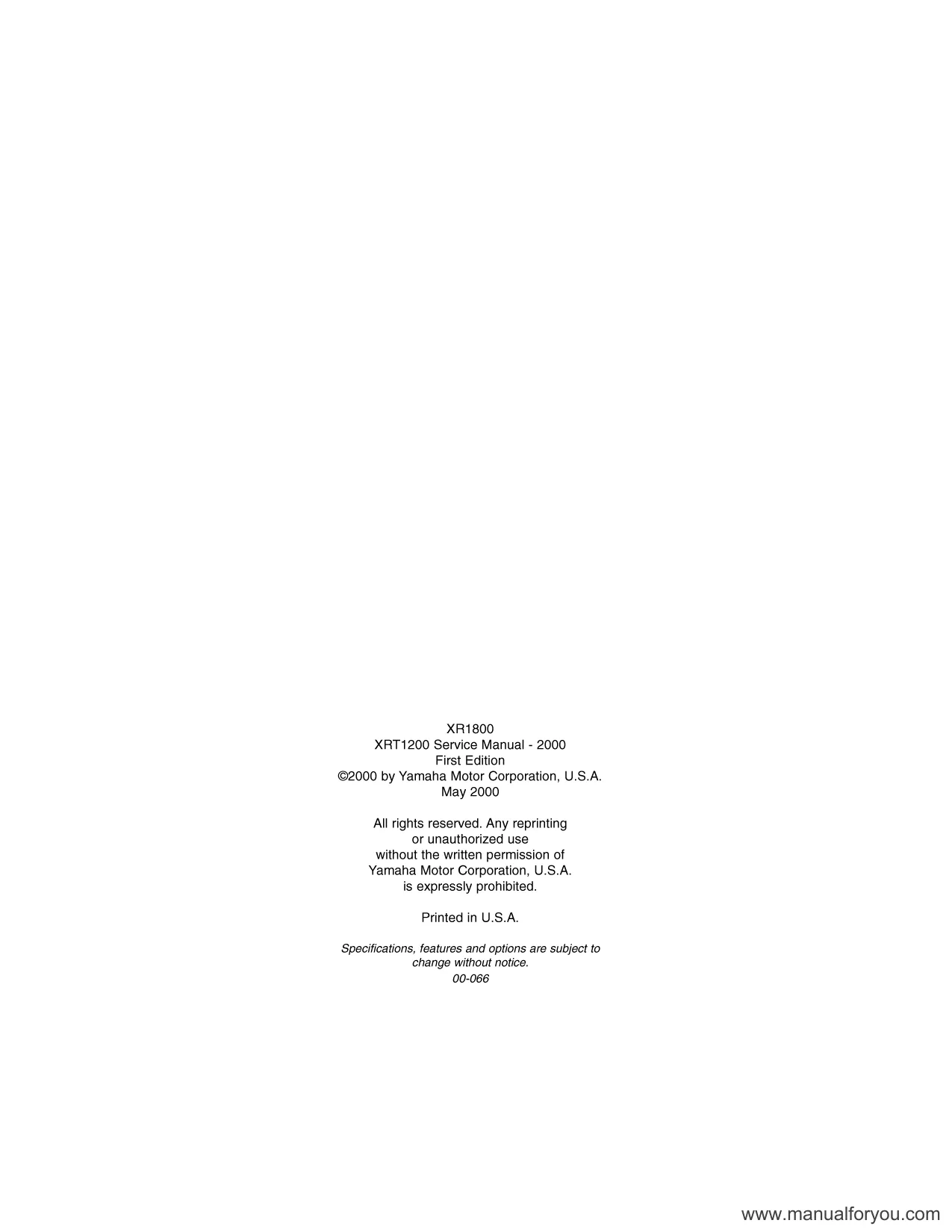

• 255-page PDF set: a 194-page 2000 XRT1200Y base service manual (first edition, May 2000), Yamaha Literature No. LIT-18616-02-25; a 58-page 2001 XRT1200Z supplement (first edition, March 2001), printed as Lit186160230; and 3 outer-cover/blank scan pages. The outer cover also shows LIT-18616-XR-00.

• Covers the twin 68Y power units and their Mikuni BN 44 carburetors, fuel and oil systems, oil-pump bleeding and adjustment, carburetor synchronization, reed valves, YPVS assemblies, wet-exhaust components, and catalyst-equipped mufflers.

• Takes engine repair through power-unit removal, exhaust and intake teardown, cylinder-head and cylinder service, piston and ring inspection, generator and starter-clutch work, crankcase separation, crankshaft inspection, and factory assembly checks.

• Details dual jet-pump repair, including pump-unit removal, reverse-gate and nozzle-deflector service, impeller and drive-shaft disassembly, bearing and seal replacement, clean-out ports, and intermediate-shaft housing work.

• Provides electrical fault isolation with system wiring diagrams, component and switch locations, low-resistance and peak-voltage testing, ignition, starting, and charging checks, CDI and YPVS servomotor diagnosis, warning-circuit tests, and starter-motor service.

• Adds 2001-specific changes for the fuel and oil layout, YPVS, pump and impeller assemblies, instrument panel and warning circuits, stereo troubleshooting, steering, and hatch/bow-cover hardware, plus a foldout wiring diagram.

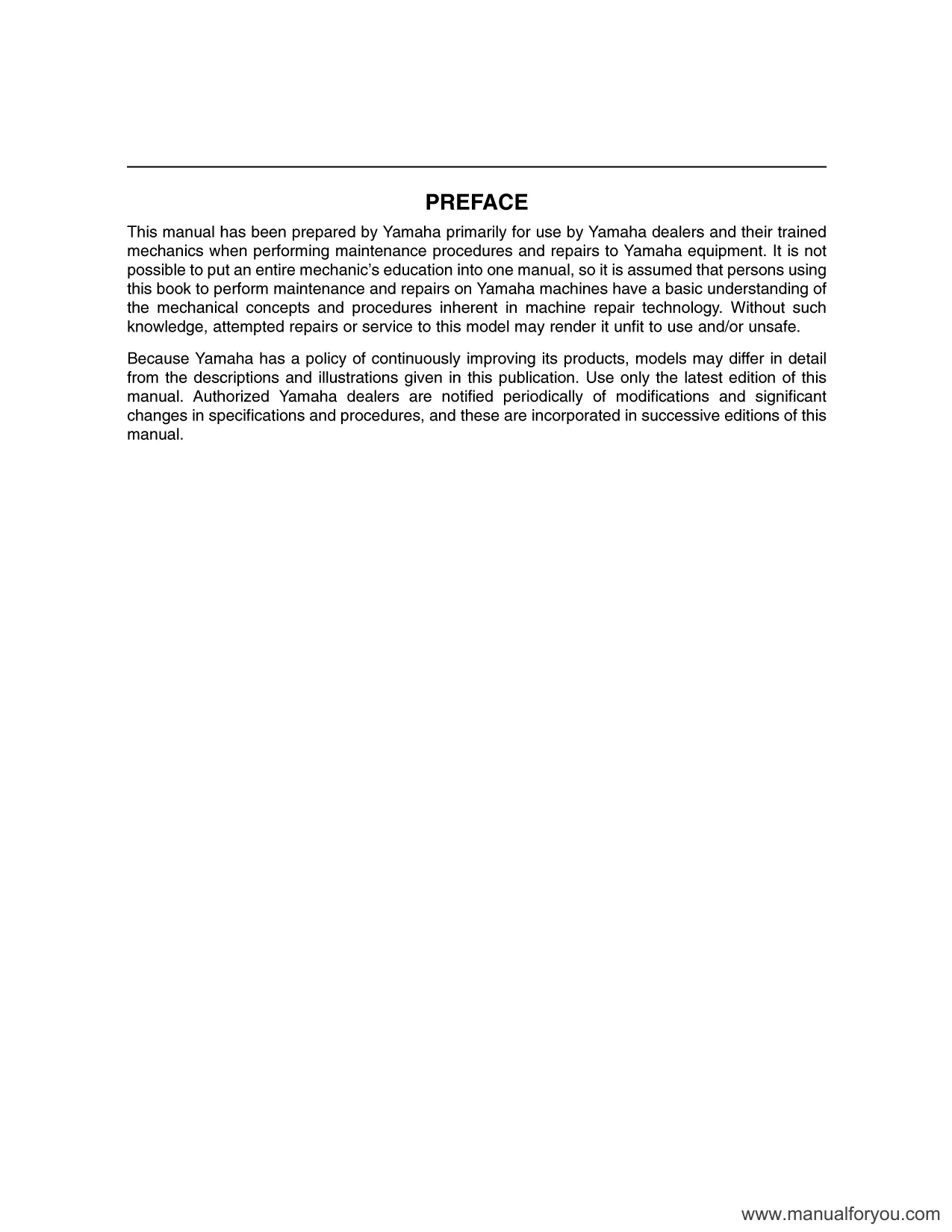

Yamaha states that the base manual was prepared primarily for its dealers and trained mechanics and assumes a working knowledge of mechanical repair. It is therefore aimed at trained marine technicians; an experienced owner would need equivalent two-stroke repair knowledge and access to the specified pullers, presses, meters, and test adapters.

Exact Model Coverage

The 310 HP shown on the XR1800 cover describes the combined twin-engine package. Each engine is a 1,176 cc, three-cylinder, two-stroke 68Y unit; the boat uses two single-stage axial-flow jet pumps with direct engine drive. Fuel is metered by three Mikuni BN 44 carburetors per engine, so this is not a fuel-injection manual.

The 2000 manual identifies the XRT1200Y, hull code F0C, with starting primary ID F0C-000101 and starting engine serial 68Y-000101. The 2001 supplement identifies the XRT1200Z beginning with primary ID F0C-700101. It documents changed data and procedures only; all unchanged 2001 service work refers back to the included 2000 base manual.

Repair and Diagnostic Depth

Fuel-system coverage goes down to diaphragm, accelerator-pump body, regulator, needle-valve, jet, and check-valve inspection, with carburetor assembly and throttle, choke, and oil-pump cable adjustments. Power-unit service adds coupling-clearance checks, cylinder and piston matching, piston-ring and pin-bearing inspection, flywheel and drive-coupling removal, and crankcase installation. Related tables provide component-specific torque sequences, wear limits, piston, cylinder, and ring clearances, carburetor settings, jet-pump inspection limits, lubrication data, and electrical resistance and peak-voltage values.

The electrical section provides the data needed for repair diagnosis. Representative illustrations include the fuel-line and oil-system diagram, YPVS exploded view, impeller and drive-shaft exploded view, main-component location wiring diagram, meter-panel back view, and the 2001 foldout wiring diagram.

The hull and deck material maps the engine compartment and covers ventilation, cooling, steering, remote controls, hatch and seat hardware, through-hull drains, gunwale components, and FRP care. A system-level trouble-analysis chart cross-references fuel, power-unit, jet-pump, electrical, and hull checks to the relevant chapters.

Tools, Service Traps, and Safety

Special tools are identified by function and number, including the YW-06551 coupler wrench, YB-06117 flywheel puller, YB-06552 intermediate-shaft holder, YB-06096 jet-pump bearing slide hammer, and YW-06780 peak-voltage test harness.

The oil-injection instructions warn that substituting another oil for Yamalube 2-W can damage the catalytic converter and other engine parts. The jet-pump section also flags the impeller's left-hand thread; treating it like a conventional thread risks damaging the impeller or drive shaft during repair.

Fuel work involves flammable gasoline vapor, while electrical diagnosis uses ignition peak-voltage testing. Follow the manual's ventilation, ignition-source control, battery-disconnection, and eye-protection warnings before service.
