1996–2000 Honda Civic Service & Electrical Troubleshooting Manuals
2,189 Pages • Printable PDF • 69.20 MB • Download
Honda Models Covered & Key Technical Specifications
Models: Civic
Sub-models / Variants: 2-door Hatchback (EJ6 / D16Y7), 4-door Sedan (EJ6 / D16Y7; U.S. variants also EJ8 / D16Y8), 2-door Coupe (EJ6 / D16Y7, EJ7 / D16Y5, EJ8 / D16Y8, EM1 / B16A2), CX, DX, EX, LX, LX-V, HX, Si, SiR, CX-G, SE, DX-V, DX-G; GX (D16B5; Electrical Troubleshooting manual coverage only)
Model Years: 1996–2000 (1996, 1997, 1998, 1999, 2000)

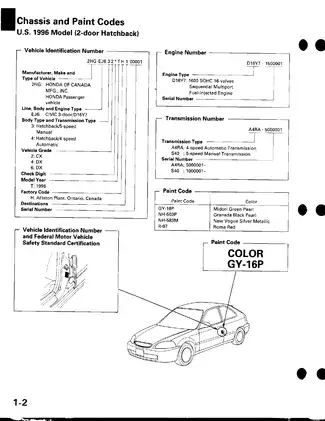

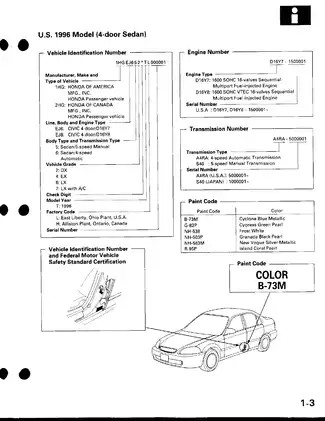

VIN Identifiers: Positions 1–3: 1HG = Honda of America, 2HG = Honda of Canada, JHM = Honda Motor Co., Japan. Positions 4–6 identify the EJ6, EJ7, EJ8, and EM1 configurations listed above. Position 7: 1 = Coupe/manual, 2 = Coupe/automatic or CVT, 3 = Hatchback/manual, 4 = Hatchback/automatic, 5 = Sedan/manual, 6 = Sedan/automatic.
Serial Numbers: Sedan chassis serial entries: U.S. 1998 — 000001 (Japan/U.S.A.), 500001 (Canada); U.S. 2000 — from 000001 (Japan/U.S.A.), from 500001 (Canada). Canada 1998 and 2000 — from 800001 (Japan), from 900001 (Canada); Canada 1999 — 800001 (Japan), 900001 (Canada).
Engine Serial Numbers: Starting numbers, inclusive, for the specified configurations: U.S. sedans/coupes with U.S.-built D16Y7/D16Y8 engines — 1996: 1500001; 1997: 2500001; 1998: 3500001; 1999: 4500001; 2000: 5500001. U.S. sedans with Japan-built D16Y7/D16Y8 engines — 1997: 2300001; 1998: 3300001; 2000: 5300001. U.S. D16Y5 coupes — 1996: 1300001; 1997: 2300001; 1998: 3300001; 1999: 4300001; 2000: 5300001. U.S. B16A2 coupes — 1999: 4300001; 2000: 5300001. Canadian D16Y7 sedans — 1998: 3700001 (Japan), 3750001 (U.S.A.); 1999: 4700001 (Japan), 4750001 (U.S.A.); 2000: 5700001 (Japan), 5750001 (U.S.A.). Canadian coupes — 1998: D16Y7 3750001, D16Y8 3780001; 1999: D16Y7 4750001, D16Y8 4780001, B16A2 1700001; 2000: D16Y7 5750001, D16Y8 5780001, B16A2 5700001.
Transmission Serial Numbers: Starting numbers, inclusive, where fitted: S40 — 1000001; S4C (Si/SiR) — 1000001. A4RA — 1996: 5000001; 1997: 6000001. B4RA — 1997: 6000001; 1998: 7000001; 1999: 8000001; 2000: 9000001. M4RA — U.S. sedan 1997: 2000001; U.S./Canadian sedans 1998: 3000001; 1999: 4000001. S4RA — U.S./Canadian sedans 2000: 5000001. M4VA (D16Y5 coupe/CVT) — 1996: 1000001; 1997: 2000001; 1998: 4000001; 1999: 5000001; 2000: 6000001.
-
Engine displacement: 1.6 liters — 1590 cc (D16Y5, D16Y7, D16Y8) and 1595 cc (B16A2)
-
Engine types: 1600 SOHC 16-valves, 1600 SOHC VTEC-E 16-valves, 1600 SOHC VTEC 16-valves, 1600 DOHC VTEC 16-valves
-
Transmission types: 5-speed manual (S40; S4C for Si/SiR), 4-speed automatic (A4RA, B4RA, M4RA; S4RA listed for 2000 sedan variants), Continuously Variable Transmission (M4VA)
-
Fuel system: Sequential Multiport Fuel-injected
-
Spark plug gap: 1.0–1.1 mm (0.039–0.043 in) for D16Y5, D16Y7, and D16Y8; 1.2–1.3 mm (0.047–0.051 in) for B16A2
Honda Manual Features & Selected Content Preview

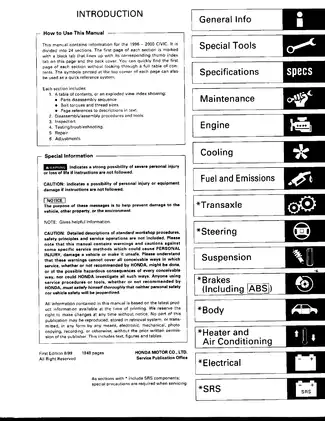

The 1996–2000 Honda Civic factory service manual covers U.S. and Canadian hatchback, sedan, and coupe configurations with D16Y5, D16Y7, D16Y8, and B16A2 engines. The service publication is marked First Edition 8/99, and the download also includes the Electrical Troubleshooting manual.
-
Engine repair: Engine removal and installation, timing-belt replacement, cylinder-head disassembly, VTEC valve-train inspection, and internal engine measurements.
-
Transmission service: S40 and S4C manual-transmission overhaul, automatic-transmission clutch and valve-body repair, and M4VA CVT diagnosis and start-clutch calibration.
-
Fuel and emissions: PGM-FI troubleshooting, fuel-pressure testing, injector service, idle-control checks, and emission-control system diagnosis.
-
Steering, suspension, and brakes: Steering-gearbox overhaul, power-steering pump inspection, suspension service, brake hydraulic repairs, and Anti-lock Brake System diagnosis.
-
Body and climate systems: Door and window service, moonroof repairs, heater controls, air-conditioning diagnosis, and compressor service.
-
Electrical and SRS: Wiring schematics, connector views, terminal arrangement charts, diagnostic trouble code charts, and Supplemental Restraint System testing and component replacement.
Suited to readers already comfortable with workshop procedures, electrical testing, and precision measurement; the manual does not teach basic workshop practices.
D16 and B16 Engine Repair
The engine chapters separate SOHC and DOHC procedures, with crankshaft and connecting-rod bearing selection, piston and ring inspection, and cylinder-head checks. Exploded-view indexes connect components with fastener torque specifications, thread sizes, and the relevant repair procedures.
Cooling-system coverage includes radiator and cap pressure testing, thermostat inspection, water-pump service, and coolant refilling and bleeding. Maintenance schedules distinguish normal and severe operating conditions.
Manual, Automatic, and CVT Transmissions
The S40 and S4C sections extend to mainshaft and countershaft disassembly, synchro inspection, differential backlash checks, and thrust-shim adjustment. The S4C repair section specifically addresses the Si/SiR application.
Automatic-transmission coverage includes stall-speed and hydraulic-pressure tests, clutch-pack overhaul, valve-body inspection, hydraulic flow schematics, and symptom-to-component charts. Internal illustrations distinguish A4RA/B4RA and M4RA assemblies; S4RA is also listed in the sedan identification data.
The automatic-transmission section explains how incorrect seating of the torque-converter housing main seal can obstruct the fluid return passage and cause damage.
CVT procedures cover pulley assemblies, the forward clutch, and start-clutch calibration. The manual specifically warns that applying the 1996 calibration procedure to 1997–2000 models can damage the transmission.
PGM-FI Diagnosis and Electrical Fault Tracing
PGM-FI troubleshooting combines diagnostic flowcharts with vacuum hose routing diagrams and ECM/PCM terminal-voltage charts that specify the measuring conditions. Connector views and harness-routing information identify the terminals involved in each test.
The Electrical Troubleshooting manual adds Power Distribution and Ground Distribution schematics, component-location photographs, and circuit-operation explanations. These references help distinguish a shared power or ground fault from an individual component failure when several electrical functions stop working together.
GX/D16B5 electrical circuits are included in the Electrical Troubleshooting material. GX-specific fuel-system testing refers to a separate Service Manual GX Supplement, which is not included in this file.
Chassis, Brakes, and Body Systems
Steering coverage includes manual and power-assisted rack service, gearbox adjustment, and power-steering pump inspection. Brake sections provide ABS fault-code diagnosis and control-unit terminal checks alongside conventional brake service.
Driveshaft and wheel-bearing procedures support suspension repairs, while the body and climate chapters cover component removal, adjustment, and system testing.
Before major teardown, follow the factory lift and support-point instructions and the precautions for changes in vehicle balance during heavy component removal.
Examples of Engine Inspection and Fluid Specifications
These are a few examples of the inspection and filling specifications in the manual.
For D16Y5, D16Y7, and D16Y8 engines, the cylinder-head warpage service limit is 0.05 mm, and cold intake-valve clearance is 0.18–0.22 mm.
Oil capacity at an oil-and-filter change is 3.6 liters for the D16Y7. Cooling-system overhaul capacities, including the heater and reservoir, are 4.2 liters for the D16Y8 with manual transmission, 4.3 liters with automatic transmission, and 5.0 liters for the B16A2.
Text Search, Bookmarks, and PDF Contents
Search and diagram detail: An embedded OCR text layer supports searching across most sections, but recognition errors and several pages without usable text can prevent matches. Three bookmarks provide access to the document beginnings rather than individual chapters. Small wiring labels may require zooming for comfortable reading.
One printable, English-language PDF contains 2,189 pages: 1,815 pages for the Service Manual and 374 pages for Electrical Troubleshooting. Both manual covers are already included in these totals.
